Motorcycle One Way Starter Bearing Customized FWD331608PRB
Motorcycle Starter Clutch One Way Clutch Bearing Customized FWD331608PRB
Product Description
Motorcycle Clutches FWD series with customized inner and outer ring
One-way clutch, commonly known as overrunning clutch, is composed of outer race, inner race, cage, Wedges etc. When the inner race is fixed, turning the wedge counterclockwise on the outer race does not Locked, the outer race can rotate freely; when the outer race is rotated clockwise, the wedge is locked, The outer race cannot turn. The function of the cage is to keep the wedges always facing the locking outer race The direction is slightly inclined to strengthen the locking function of the wedge.
One-way clutches have two forms of motion:
1. Torque transmission or engagement (wedge)
2. Idling or transcendence (liberation).
Application: primarily used in motorcycle starter

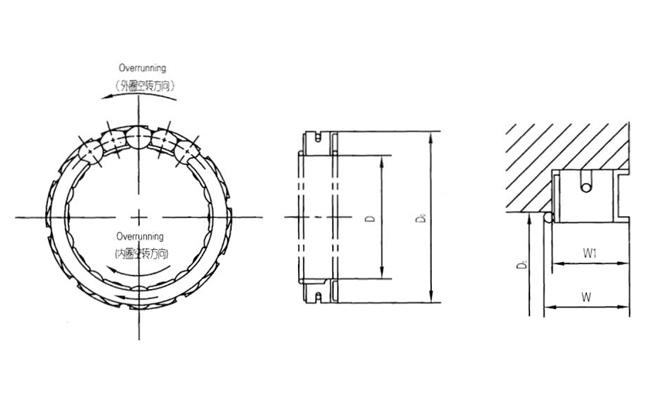

Motorcycle Starter Clutch One Way Clutch Bearing FWD...PRB Specifications:
| Clutch Type | Dimensions | Torque | Weight | ||||
| Inner race | Outer race | Wmin | Wmin | Dc | |||
| D +0.008/ -0.005 | D0 ±0.013 | W | W1 | Tkn | |||
| [mm] | [mm] | [mm] | [mm] | [mm] | [Kgf-m] | [g] | |
| FWD331608PRB | 39.627 | 56.294 | 13.0 | 11.4 | 45 | 27 | 70 |
| FWD331808PRB | 45.665 | 62.332 | 13.3 | 11.7 | 51 | 35 | 80 |
| FWD332008PRB | 51.710 | 68.377 | 13.3 | 11.7 | 57 | 45 | 89 |
| FWD332211PRB | 57.760 | 74.427 | 16.3 | 14.7 | 63 | 78 | 130 |
Note:
1) Opposite overrunning direction should be ordered separately.
