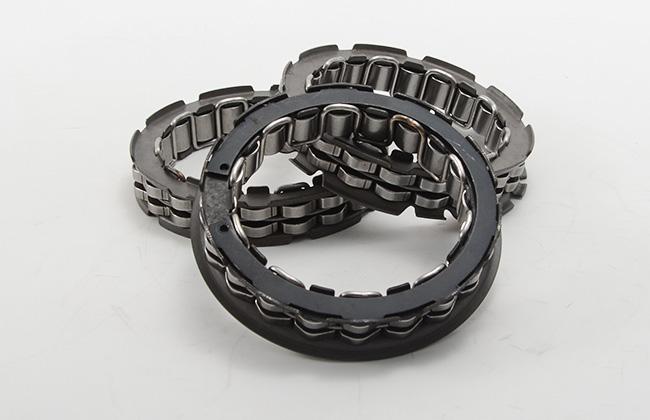

Freewheel Caged One Way Clutch Bearing High Alloy Motorcycle Starter FWD332008BRB
Freewheel Caged One Way Clutch Bearing Single Way Motorcycle Starter FWD332008BRB
We supply various one way clutch bearing.
one-way bearing is free to rotate in one direction, while in the other direction to lock a bearing. Also called a one-way clutch bearing, but depending on the industry, the role of different named. The metal in the one-way bearing, comprising a number of rollers, roller or ball, and the rolling seat (hole) shape rolling it in only one direction and in the other direction generates a large resistance (The so-called "one-way").
We also have size but different appearance for FWD...CRS, FWD..CRB, FWD..PRS, FWD...PRB, FWD...FRB, FWD...BRB, FWD...PRB, FWD..BRS.
F=follow flat ,C= circle flat, R=Right direction, S=spring, P =plain

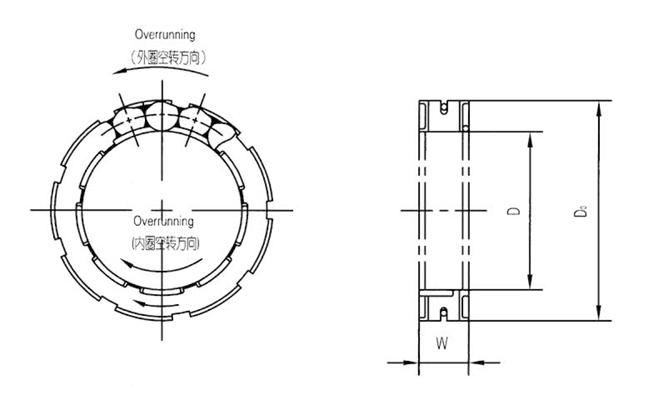

Freewheel Caged One Way Clutch Bearing Single Way Motorcycle Starter FWD...BRB Series Specifications:
| Type | Dimensions | Torque | Weight | ||
| Inner race | Outer race | Wmin | |||
| D +0.008/ -0.005 | D0 ±0.013 | W | Tkn | ||
| [mm] | [mm] | [mm] | [Kgf-m] | [g] | |
| FWD331608BRB | 39.627 | 56.294 | 13.0 | 27 | 73 |
| FWD331808BRB | 45.665 | 62.332 | 13.3 | 35 | 82 |
| FWD332008BRB | 51.710 | 68.377 | 13.3 | 45 | 91 |
| FWD332211BRB | 57.760 | 74.427 | 16.3 | 78 | 134 |
Note:
1) Opposite overrunning direction should be ordered separately.
