Low Friction Freewheel Clutch Bearing Motorcycle Gcr15 Sprag Type One Way Clutch FWE331608BRB
Price:
USD3 per Piece
MOQ:
100
Delivery Time:
3-45 working days.(Huge Quantity Stocks Available))
Brand:
MOUETTE
Product Description

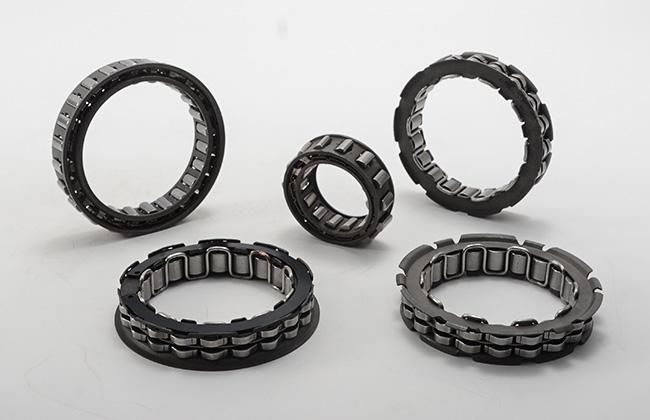

Motorcycle Starter One Way Sprag Freewheel Clutch Bearing Low Friction FWE331608BRB
Product Description
Type FWE...BRB one way clutch is usually used in motorcycle as sarting clutch. The products with nonstandard dimension can also be ordered if the client need.
Wedge-shaped wedge with a clutch instead of rollers as the wedge member, with wedge and the inner and outer raceway composed a friction clutch. When the inner ring, the outer ring is no relative movement between the wedge, turning the same speed equal to transfer torque, or are the relative sliding of the sliding torque is not transmitted this state is called beyond. Sprag clutch are basic, no inner-and with bearing type. Connect it into the form of linkage, gears connecting the pulley connected to sprocket bolt connections.

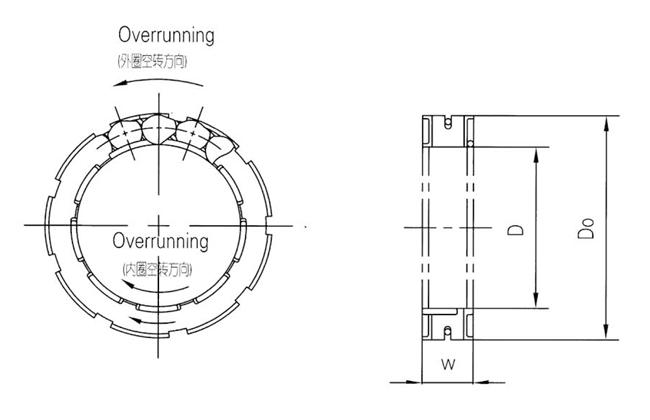

Motorcycle Starter One Way Sprag Freewheel Clutch Bearing Low Friction FWE...BRB Specifications:
| Type | Dimensions | Torque | Weight | ||
| Inner race | Outer race | Wmin | |||
| D +0.008/ -0.005 | D0 ±0.013 | W | Tkn | ||
| [mm] | [mm] | [mm] | [Kgf-m] | [g] | |
| FWE331608BRB | 39.900 | 56.567 | 13.0 | 26 | 73 |
| FWE331808BRB | 45.848 | 62.515 | 13.3 | 35 | 82 |
| FWE332211BRB | 57.760 | 74.427 | 16.3 | 78 | 134 |
Note:
1) Opposite overrunning direction should be ordered separately.
