Heavy Stud Type Cam Follower Screwdriver Slot Crowned Stud CCFH 1 S CCFH 1 1/4 S
Heavy Stud Crowned Inch Cam Follower Screwdriver Slot CCFH 1 S CCFH 1 1/4 S

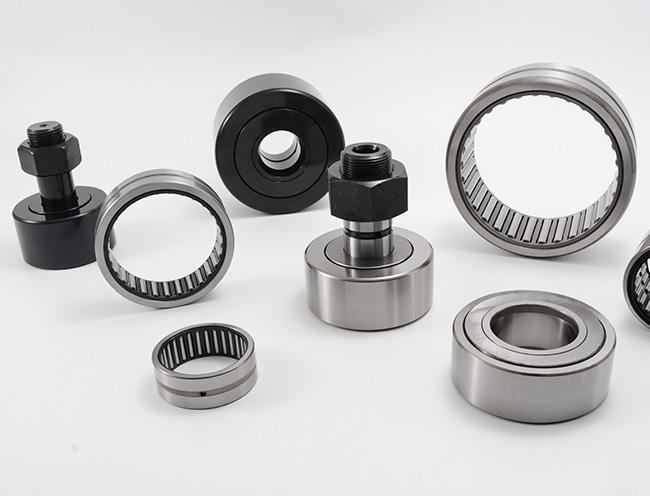

MOUETTE designs, manufactures and stocks a complete line of cam followers for industrial applications, including machine tools, industrial robots, electronic parts production, office automation equipment and harsh environments that require increased corrosion resistance. Cam followers and track rollers provide antifriction solutions for translating rotation to linear motion or supporting either pure radial or combination thrust loads depending on the rolling elements types.
Stainless steel cam followers intended harsh environments that require increased corrosion resistance. Excellent choice for outdoor use or for applications such as food production facilities that require frequent wash-down and cleaning.

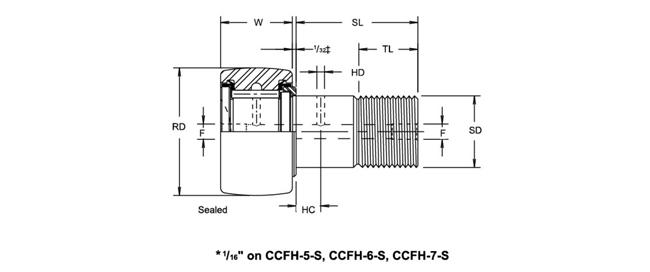

Heavy Stud Crowned Inch Cam Follower Specifications:
| Unsealed | Sealed | Roller Dia. (RD) | Roller Width (W) | Stud Dia.(SD) | Stud Length (SL) | Min. Thread Lenght (TL) | Fine THR'DS. |
| CCFH 1/2 | CCFH 1/2 S | .500 | .375 | .250 | 5/8 | 1/4 | 1/4-28 |
| CCFH 9/16 | CCFH 9/16 S | .5625 | .375 | .250 | 5/8 | 1/4 | 1/4-28 |
| CCFH 5/8 | CCFH 5/8 S | .625 | .4375 | .3125 | 3/4 | 5/16 | 5/16-24 |
| CCFH 11/16 | CCFH 11/16 S | .6875 | .4375 | .3125 | 3/4 | 5/16 | 5/16-24 |
| CCFH 3/4 | CCFH 3/4 S | .750 | .500 | .4375 | 7/8 | 3/8 | 7/16-20 |
| CCFH 7/8 | CCFH 7/8 S | .875 | .500 | .4375 | 7/8 | 3/8 | 7/16-20 |
| CCFH 1 | CCFH 1 S | 1.000 | .625 | .625 | 1 | 1/2 | 5/8-18 |
| CCFH 1 1/8 | CCFH 1 1/8 S | 1.125 | .625 | .625 | 1 | 1/2 | 5/8-18 |
| CCFH 1 1/4 | CCFH 1 1/4 S | 1.250 | .750 | .750 | 1 1/4 | 5/8 | 3/4-16 |
| CCFH 1 3/8 | CCFH 1 3/8 S | 1.375 | .750 | .750 | 1 1/4 | 5/8 | 3/4-16 |
| CCFH 1 1/2 | CCFH 1 1/2 S | 1.500 | .875 | .875 | 1 1/2 | 3/4 | 7/8-14 |
| CCFH 1 5/8 | CCFH 1 5/8 S | 1.625 | .875 | .875 | 1 1/2 | 3/4 | 7/8-14 |
| CCFH 1 3/4 | CCFH 1 3/4 S | 1.750 | 1.000 | 1.000 | 1 3/4 | 7/8 | 1-14 |
| CCFH 1 7/8 | CCFH 1 7/8 S | 1.875 | 1.000 | 1.000 | 1 3/4 | 7/8 | 1-14 |
| CCFH 2 | CCFH 2 S | 2.000 | 1.250 | 1.125 | 2 | 1 | 1 1/8-12 |
| CCFH 2 1/4 | CCFH 2 1/4 S | 2.250 | 1.250 | 1.125 | 2 | 1 | 1 1/8-12 |
| CCFH 2 1/2 | CCFH 2 1/2 S | 2.500 | 1.500 | 1.250 | 2 1/4 | 1 1/8 | 1 1/4-12 |
| CCFH 2 3/4 | CCFH 2 3/4 S | 2.750 | 1.500 | 1.250 | 2 1/4 | 1 1/8 | 1 1/4-12 |
| CCFH 3 | CCFH 3 S | 3.000 | 1.750 | 1.500 | 2 1/2 | 1 1/4 | 1 1/2-12 |
| CCFH 3 1/4 | CCFH 3 1/4 S | 3.250 | 1.750 | 1.500 | 2 1/2 | 1 1/4 | 1 1/2-12 |
| CCFH 3 1/2 | CCFH 3 1/2 S | 3.500 | 2.000 | 1.750 | 2 3/4 | 1 3/8 | 1 3/4-12 |
| CCFH 4 | CCFH 4 S | 4.000 | 2.250 | 2.000 | 3 1/2 | 1 1/2 | 2-12 |
| - | CCFH 5 S | 5.000 | 2.750 | 2.500 | 5 1/16 | 2 9/16 | 2 1/2-12 |
| - | CCFH 6 S | 6.000 | 3.250 | 3.000 | 6 | 3 | 3-12 |
| - | CCFH 7 S | 7.000 | 3.750 | 3.500 | 7 11/16 | 4 1/8 | 3 1/2-4 |
| Unsealed | Sealed | Oil Hole | LUB. FITTING SIZE (F) | Recom. Clamping Torque (LBS.) | Basic Load Rating | ||
| Hole Center (HC) | Hole Dia. (HD) | Max. Static Capacity (LBS.) | Max. Dyn. Capacity (LBS.) | ||||
| CCFH 1/2 | CCFH 1/2 S | - | - | 1/8 | 35 | 1580 | 680 |
| CCFH 9/16 | CCFH 9/16 S | - | - | 1/8 | 35 | 1580 | 680 |
| CCFH 5/8 | CCFH 5/8 S | - | - | 1/8 | 90 | 2480 | 955 |
| CCFH 11/16 | CCFH 11/16 S | - | - | 1/8 | 90 | 2480 | 955 |
| CCFH 3/4 | CCFH 3/4 S | 1/4 | 3/32 | 3/16 | 250 | 4130 | 1660 |
| CCFH 7/8 | CCFH 7/8 S | 1/4 | 3/32 | 3/16 | 250 | 4130 | 1660 |
| CCFH 1 | CCFH 1 S | 1/4 | 3/32 | 3/16 | 650 | 6120 | 2225 |
| CCFH 1 1/8 | CCFH 1 1/8 S | 1/4 | 3/32 | 3/16 | 650 | 6120 | 2225 |
| CCFH 1 1/4 | CCFH 1 1/4 S | 5/16 | 3/32 | 3/16 | 1250 | 8500 | 3930 |
| CCFH 1 3/8 | CCFH 1 3/8 S | 5/16 | 3/32 | 3/16 | 1250 | 8500 | 3930 |
| CCFH 1 1/2 | CCFH 1 1/2 S | 3/8 | 3/32 | 3/16 | 1500 | 11280 | 4840 |
| CCFH 1 5/8 | CCFH 1 5/8 S | 3/8 | 3/32 | 3/16 | 1500 | 11280 | 4840 |
| CCFH 1 3/4 | CCFH 1 3/4 S | 7/16 | 3/32 | 3/16 | 2250 | 15840 | 6385 |
| CCFH 1 7/8 | CCFH 1 7/8 S | 7/16 | 3/32 | 3/16 | 2250 | 15840 | 6385 |
| CCFH 2 | CCFH 2 S | 1/2 | 1/8 | 3/16 | 2800 | 21140 | 8090 |
| CCFH 2 1/4 | CCFH 2 1/4 S | 1/2 | 1/8 | 3/16 | 2800 | 21140 | 8090 |
| CCFH 2 1/2 | CCFH 2 1/2 S | 9/16 | 1/8 | 3/16 | 3450 | 32900 | 11720 |
| CCFH 2 3/4 | CCFH 2 3/4 S | 9/16 | 1/8 | 3/16 | 3450 | 32900 | 11720 |
| CCFH 3 | CCFH 3 S | 5/8 | 1/8 | 1/4 | 5000 | 49820 | 15720 |
| CCFH 3 1/4 | CCFH 3 1/4 S | 5/8 | 1/8 | 1/4 | 5000 | 49820 | 15720 |
| CCFH 3 1/2 | CCFH 3 1/2 S | 11/16 | 1/8 | 1/4 | 5000 | 63250 | 22800 |
| CCFH 4 | CCFH 4 S | 3/4 | 1/8 | 1/4 | 5000 | 89540 | 29985 |
| - | CCFH 5 S | 7/8 | 3/16 | 1/4” NPT | 5000 | 135900 | 46575 |
| - | CCFH 6 S | 1 | 3/16 | 1/4” NPT | 5000 | 160900 | 60000 |
| - | CCFH 7 S | 1 1/4 | 3/16 | 1/4” NPT | 5000 | 213860 | 75380 |
