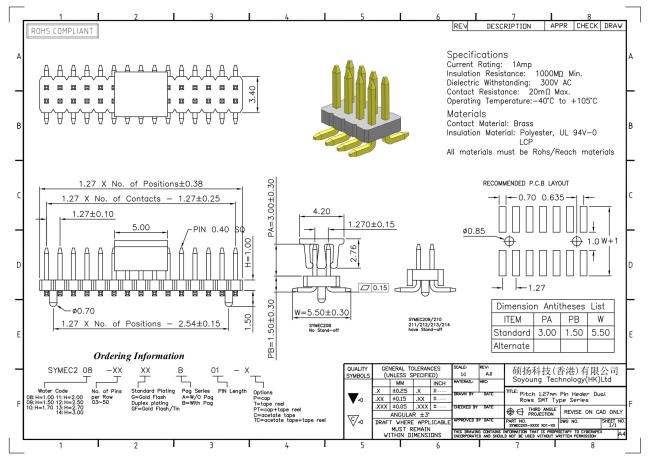

Pin Header Connector 1.27mm Serise Dual Row SMT Type With Pegs 2*3PIN To 2*50PIN SQ0.40mm

Primary products

High Speed Board To Board Connector

SMT Board To Board Connector

Wire To Board Connector

Pin Female Header Connector

Box Header Connector

Input Output Connector

LED Header Connector

RF Coaxial Connector

Smart Card Connector

Round Machine Pin Header Connector

Base Station Cable

PCB Connector orientations
The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degrees increments: Parallel or mezzanine – both connectors are vertical orientation;90 Degree, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;180 Degree, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.

Product Application

Male pin header widely used in different industry such as air-condition, multimedia, UAV and so on. as below image is application scenarios. image is a limitation, for more detail you can directly contact our sales team.

FAQ

Q: What is the MOQ?

A: Our MOQ is: 1000 PCS(1 PCS for sample).

Q: How about samples? is it free ?

A: 20 Piece free sample is available, If you would like to pay the freight fees.

Q: What is your price term & payment terms?

A: 1. Our usual price term is EXW,FOB Shenzhen or FOB Hongkong, but other terms is available too.

2. Payment terms: T/T, Paypal and other terms.

Q: What about your leading&delivery time?

A: Leading time according to your quantity, and usually delivery time is 5~7 working days

Q: Do you have UL certificate? and others?

A: Of course, we have , and also qualified SGS, ISO9001:2004 etc.
