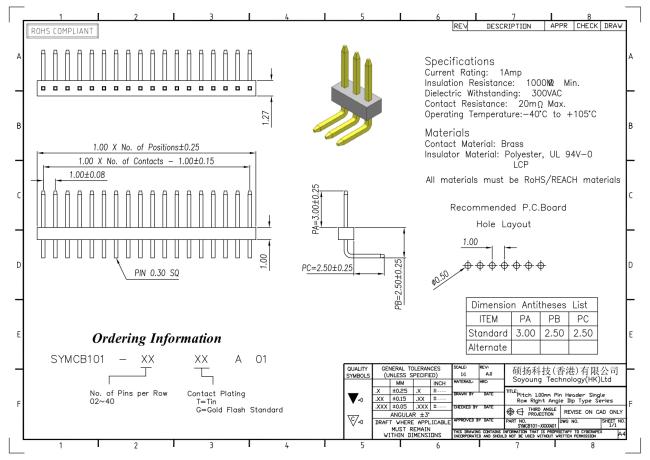

Pin Header Connector 1.00mm Single Row R/A Type 1*2PIN To 1*40PIN H=1.00mm

What's the Pin Header

Pin header is a type of electrical connector, this connectorare widely used in electronic or instrumentation of PCB (Print Circuit Board) function as bridge between two PCBs which were blocked, and used to take current or signal transmission

pin header is a form of electrical connector. It consists of one or more rows of male pins typically spaced 2.54mm (0.1 in) apart, but common sizes also include 5.08mm (0.2 in), 5.00 mm (0.197 in), 3.96mm (0.156 in), 2.00 mm (0.079 in), 1.27 mm (0.05 in) and 1.00 mm (0.04 in). The distance between pins is commonly referred as pitch in the electronic community.

How to order

1. Provide a famous brand(Such Samtec/Molex/FCI/JST ect) part number or your design method. We'll offer you our part for checking.

2. Choose our website part and send e-mail to our sales team.

3. Small order is welcome.

How to Packing

We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:

1. Tray Packing, suitable for manual assembly.

2. Tube Packing, suitable for manual assembly.

3. Reel Packing with tape, suitable for automatic machine producing.

4. Reel Packing with Cap, suitable for automatic machine producing.

How to Shipping

1. If goods is not large:Fedex .DHL.EMS.UPS,TNT,ect express shipping method.

2. If goods is large:Sea or Air shipping method.
