IEC Inlet EMI Noise Filter VIP1-1E-03 B011X0752 3A 115/250VAC Integrated Fuse Switch Power Line EMC Filter for Electronics
Price:
6-9USD
MOQ:
112PCS
Delivery Time:
31days
Brand:
Weiaipu
Product Description
Single Phase AC EMI Power Filter VIP1-1E-03 B011X0752 3A 250VAC 3-in-1 IEC Inlet Module, EMC Interference Suppression Filter
Product Overview
VIP1‑1E‑03 is a 3‑A integrated IEC power entry EMI filter manufactured by Shenzhen VIIP Electronics Co., Ltd. This is a 3‑in‑one power inlet module integrating IEC C14 socket, rocker power switch, dual fuses and single‑stage LC EMI filter into one compact metal‑shielded housing. It is panel‑mount type for front‑side installation on equipment enclosure, adopting fast‑on terminal output for convenient wiringAlibaba. It suppresses conducted electromagnetic interference on AC power line, helps end‑products to meet EMC requirements. The product complies with RoHS and REACH environmental directives, and supports 115/250VAC 50/60Hz mains power supply.
Product Highlights
- All‑in‑one integrated design: Combines IEC inlet socket, power switch, dual fuse holders and EMI filter, saving internal PCB space and simplifying equipment power‑input structureAlibaba.
- Effective EMI suppression: Single‑stage common‑mode & differential‑mode π‑filter topology, delivers good insertion loss for 150kHz‑30MHz conducted noise under 50‑ohm test system手机搜狐网.
- Dual‑fuse safety protection: Independent fuses for line and neutral circuit to enhance over‑current safety protection for end devicesAlibaba.
- Metal shielding enclosure: Provides good shielding performance against electromagnetic interference; fast‑on 6.3 mm terminals for easy assembly.
- Wide operating temperature: Operating range from ‑25 °C up to +100 °C, suitable for diverse industrial and commercial environments.
Electrical Characteristics
| Item | Specifications |
|---|---|
| Rated Voltage | 115 / 250 VAC |
| Rated Current | 3 A RMS Max @115VAC / 250VAC |
| Operating Frequency | 50 / 60 Hz |
| Max Leakage Current
|
≤0.1 mA @115VAC 60 Hz
|
| Insulation Resistance | ≥100 MΩ @500 VDC (Input / Output to Ground) |
| Operating Temperature | ‑25 °C ~ +100 °C |
| Hipot Test | 1 minute withstand test (per safety specification) |
| Filter Topology | Single‑stage π‑type LC filter with bleeder resistor |
| Insertion Loss | Measured under 50‑ohm system (for reference only) |
Application
- Test & measuring instruments, laboratory equipment
- Medical‑related electronic devices (general non‑patient‑contact equipment)
- Industrial control equipment, communication devices
- Office automation equipment, commercial power‑driven appliances
- Medical peripherals, analytical instruments
- Any AC‑powered device requiring EMC conducted‑interference mitigation with integrated power inlet, switch and fuse protection

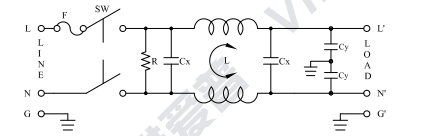

Electrical Schematic & Product Images
Support and Services
- Product Overview: High-performance single-phase EMI filter, compliant with international standards
- Technical Support: Refer to the datasheet and installation manual for full specs, wiring diagrams, and safety guidelines
- Installation: Must be performed by qualified personnel; ensure proper grounding and secure connections per applicable electrical codes
- Maintenance: Regular inspection recommended to maintain filter efficiency and extend product lifespan
- Troubleshooting: Verify wiring, check for physical damage, and confirm operating conditions (temperature/humidity) meet specifications
- Custom Solutions: Tailored EMI filter options available, including product testing and certification support. Contact our technical team for application advice and problem resolution
Frequently Asked Questions
What is your MOQ for VIP4-series power filters?
For standard off-the-shelf VIP4 series models, low MOQ is acceptable. Stock items support small-batch trial orders; for bulk mass production orders, MOQ will be based on production arrangement. Contact our sales team for detailed MOQ information.
Can I get samples of VIP4-series filters for my internal EMC performance pre-test?
Yes, sample service is available. Standard VIP4 models can be supplied as samples for your lab EMC validation and performance verification. Sample freight will be borne by the buyer.
What are the rated voltage, rated current and operating frequency for VIP4-series power filters?
VIP4 series single-phase filters are rated at 115/250VAC, operating frequency 50/60Hz. Different part numbers support different rated current from 1A-10A (for example VIP4-2B-10 is 10A model). Please refer to the product approval sheet for exact parameter of each model.
Can you provide insertion-loss curves including common-mode and differential-mode performance for VIP4-series filters?
Yes. Insertion-loss data under 50Ω standard test system is included in each model's approval sheet. We can provide test curves for common-mode and differential-mode noise attenuation for your circuit simulation and EMC evaluation.
What is the hip-pot (high-potential) test standard for VIP4-series power filters?
Every finished VIP4 filter undergoes hip-pot withstand voltage test for 1 minute as per specification, together with insulation resistance test (≥100MΩ @500VDC input/output to ground). Full test specification is shown on the approval sheet.
If my product fails during EMC testing after using VIP4 filters, can you provide technical support?
Yes, our in-house EMC engineering team can offer technical support. Please share your test report, application condition and circuit information, we will analyze and give suggestions for improvement or model adjustment.
Could you help select proper VIP-series filter model for my specific application such as inverter, servo drive or control cabinet?
Sure. Please provide key information including working voltage, rated current, equipment type, main noise frequency and installation condition. Our team will help you pick the most suitable filter solution for your system.
