Bending 4x8 Mirror Stainless Steel Sheet Anticorrosive Trim Edge
BA Stainless Steel Coil And Sheet Information | |||||||||
Technique | Surface Finish | Grade Series | Thickness(mm) | Width(mm) | |||||
Main Dimension | |||||||||
20-800 | 1000 | 1219 | 1240 | 1250 | 1280 | ||||
Cold Rolled | 2BA | 201 | 0.35-1.2 | √ | √ | √ | |||
BA | 304 | 0.3-1.5 | √ | √ | √ | √ | √ | √ | |
410 | 0.16-3.0 | √ | √ | √ | √ | √ | √ | ||
430 | 0.16-3.0 | √ | √ | √ | √ | √ | √ | ||
Chemical composition and mechanical properties of BA stainless steel | |||||||||
Grade | Chemical Composition (%) | Mechanieal Performece | |||||||
C | Si | Mn | P | S | Ni | Cr | Mo | Hardness | |
201 | ≤0.15 | ≤1.00 | 5.5/7.5 | ≤0.060 | ≤0.030 | 3.5/5.5 | 16.0/18.0 | - | HB≤241,HRB≤100, HV≤240 |
304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0/11.0 | 18.00/20.00 | - | HB≤187,HRB≤90,HV≤200 |
410 | ≤0.15 | ≤1.00 | ≤1.25 | ≤0.060 | ≤0.030 | ≤0.060 | 11.5/13.5 | - | HB≤183, HRB≤88 HV≤200 |
430 | ≤0.12 | ≤1.00 | ≤1.25 | ≤0.040 | ≤0.03 | - | 16.00/18.00 | - | HB≤183, HRB≤88 HV≤200 |

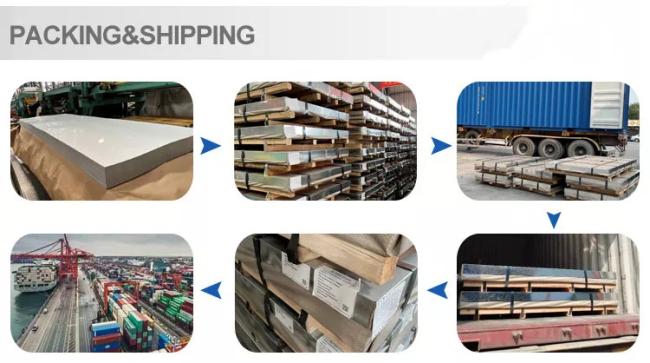

Stainless steel sheet packaging and loading
1. stainless steel sheets covered with wooden plate for protection in transportaiton.
2. All stainless steel sheets will be loaded in strong wooden packages.
3. Every cartons loaded with good shoriong and container.
4. Transportation speed is quick. And keep customer each informed.

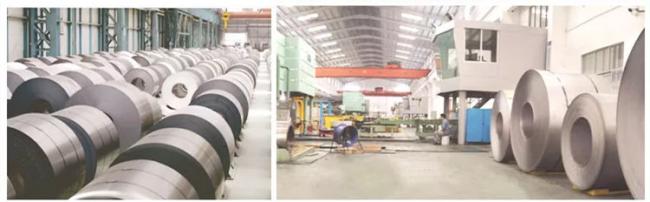

Our Manufacturing Department:
1. Cold rolling machines, 20Hi / 18Hi roller with computer control system
2. 18 & 20 oil roller rolling machine, makes the surface more smooth & steady, 0.01mm tolerance in thickness
3. Bright anneal Oven 1050mm, two lines, 1450mm one line
4. Bright process machine, with paper interleave during processing, protect the surface
5. Strip coil cutting, slit/trim edge cutting machines
6. 2B, BA finshed surface of 410s, soft DDQ quality
