220V 380V LCD Three Phase Prepaid Energy Impact Meters Prepaid Wall Mounted
Three Phase Wall-Mounted Prepaid Energy Meter
3X220/380V LCD Prepaid Electricity Meter Manufacturers Three Phase Wall-Mounted Prepaid Energy Meter with wifi/4G Module
Product Description:
The Three Phase Prepaid Energy Meter is a smart device that is designed to measure and monitor users' electricity consumption. It has an LCD display, and its color is white. It is equipped with a RS485 interface for communication, allowing users to use GPRS/GSM/WIFI/RS485 for remote access. With a weight of 1KG, it is a lightweight and versatile device. This Three Phase Prepaid Energy Meter is a perfect choice for users who need a reliable iot electric meter, smart prepaid electricity meter, or a wifi 3phase meter reader.
Features:
Technical Parameters:
|
Measurement function
|
Voltage
|
Voltage waste
|
error<10VA
|
|
|
Impedance
|
>2MΩ
|
|||
|
Accuracy grade
|
±0.2%
|
|||
|
Current
|
Current specification
|
1.5(6)A 5(60)A 20(80)A 10(100)A
|
||
|
Current waste
|
error<4VA
|
|||
|
Accuracy grade
|
±0.2%
|
|||
|
Power
|
Active, reactive and power error±0.2%
|
|||
|
Grid frequency
|
45-65Hz error±0.2%
|
|||
|
electric energy
|
Active power level 1&2
|
|||
|
Digital signal
|
Electric pulse output
|
Active optocoupler output
|
||
|
Pulse constant
|
6400imp/KWh 400imp/KWh
|
|||
|
Starting current
|
Connect directly
|
0.004In (level 1) reactive:0.004In (level 2)
|
||
|
Connect by CT
|
0.002Ib
|
|||
|
Communication
|
Interface and communication protocol
|
RS485¨ Modbus¨ DL/T 645-2007¨
|
||
|
Mailing address range
|
Modbus 1~247
|
|||
|
Baud rate
|
1200bps~9600bps
|
|||
|
Environment
|
Altitude
|
atmospheric pressure:63.0kPa～106.0kPa(﹤4000m above sea level )Except for special order requirements
|
||
Applications:

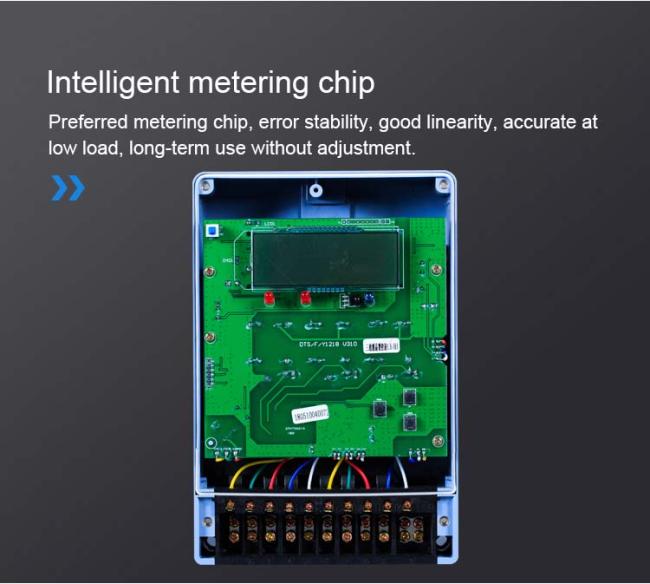

Detail Images:
Support and Services:
We provide comprehensive technical support and services for Three Phase Prepaid Energy Meter. Our services include:
- Installation and configuration assistance.
- Troubleshooting and maintenance guidance.
- Software and firmware updates.
- User documentation and training.
- 24/7 technical assistance.
Our team of experienced technicians is available to answer your questions and provide support whenever you need it. We guarantee fast response times and a resolution to any problem you may be experiencing.
Packing and Shipping:
The Three Phase Prepaid Energy Meter will be packaged in a cardboard box with an inner cushioning of molded foam to protect the product. The box will include the product, the user manual and instructions, and other necessary accessories. The box will be labeled with an address and barcode specific to the product.
Once the product is packaged, it will be shipped through a reliable third-party shipping company. The shipping company will handle all packing, labeling, and delivery of the product.
FAQ:
Q: What is a Three Phase Prepaid Energy Meter?
A: A Three Phase Prepaid Energy Meter is a device to measure the amount of energy consumed and allow users to pay in advance for the electricity they use.
Q: What is the brand name of the Three Phase Prepaid Energy Meter?
A: The brand name of the Three Phase Prepaid Energy Meter is Saving.
Q: What after-sales service is provided?
A: Usually, we provide online technical services, including product instructions, remote software debugging, and online video guidance. If needed, we can go to customers' site for products debugging and project guidance. But customers should be responsible for our accommodation, transportation and safety.
Q: Where is the Three Phase Prepaid Energy Meter manufactured?
A: The Three Phase Prepaid Energy Meter is manufactured in China.
Q: Does the Three Phase Prepaid Energy Meter have a CE certification?
A: Yes, the Three Phase Prepaid Energy Meter has CE certification.
