1920x1080 Medical TFT Display 13.3 Inch EDP Interface 30PIN
13.3 inch is an EDP interface 30PIN, TFT, full view, resolution of 1920*1080 medical TFT display
Product description
13.3 inches is an EDP interface 30PIN, TFT, full view, resolution of 1920*1080 medical TFT display, suitable for medical equipment and other industrial control related industries, industrial touch IC, touch can realize IIC and USB interface compatibility, in line with medical EMI and EMC and other phase testing standards
Product parameter details
| Model | HG133FH017T01 | Application industry | Medical equipment |
| Size/inch | 13.3 inch | Arrangement | 1920*1080 |
| Display size | 293.76mm*165.24mm | External dimensions | 326mm*212.5mm*5mm |
| Viewing Angle | ALL | Luminance |
270cd/m2(customizable) |
| Contrast ratio | 800 | NTSC | 72% |
| Signal types | EDP interface 30PIN | ||
| Temperature | Operating temperature: -20℃~+60℃, storage temperature: -30℃~+70℃ | ||
| TP structure | G+G | Cover plate | 1.5mm Asahi Glass Co.,Ltd |
| TP IC | Industrial ILI2511 | TP interface | IIC and USB compatible |
| signal plate | HDMI signal board, pass medical test standards | ||
| Remark |
1. 13.3 FHD inline products, EDP interface 2. G+G TP with industrial ILI2511 USB board 3. With medical grade HDMI driver board
|
||
Description of products

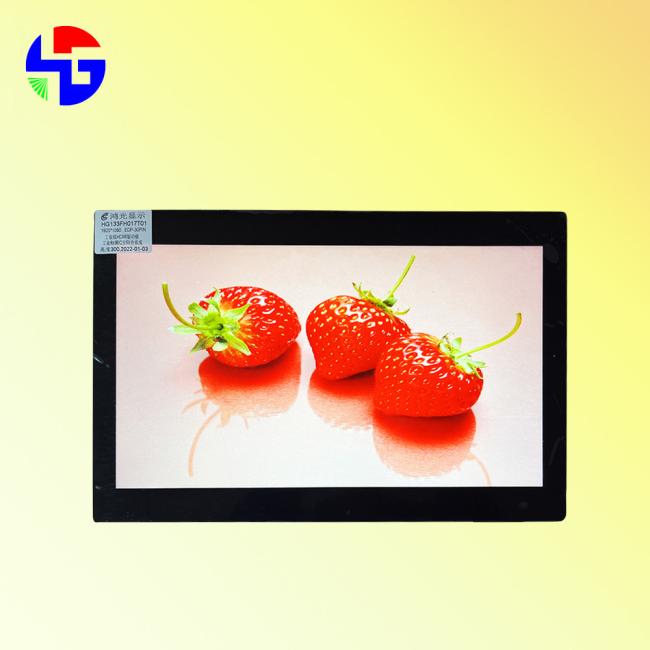

HG133FH017T01 is a standard series LCM+CTP with HDMI signal board, suitable for industrial control medical equipment.
It is composed of TFT LCD panel, driver IC, FPC, backlight, CTP, HDMI signal board and TP game power control board
It is 1920*1080 resolution, display effect for the full view of the medical LCD display complete solution
EDP interface 30PIN, can work at -20℃~60℃, storage temperature: -30℃~70℃
This product is widely used in industrial control, medical, handheld, security, vehicle, instrumentation and other related products
All products are available with or without touch and industrial drive boards, no matter what configuration you choose,
Can be customized according to your requirements (can be customized backlight, FPC, touch screen, industrial driver board)
Comply with RoHS and CE certification standards
If you can't find a suitable one, please contact us for a recommendation
Packaging and shipping
Packing Details:
1. All products are packaged in the correct way to ensure safety.
2. For small size products, we use pallets = cartons.
3. For larger sizes, we use knife card + foam + carton.
4. We can also design packaging according to customers' requirements.
transport
1 by express (3-7 working days), suitable for emergency time and small amount.
2. Shipping (15-30 days), suitable for routine mass production.
3. Air transport (4-5 days), from airport to airport.
