10.1-Inch Industrial LCD Display MIPI Interface 1200x1920 25PIN 280cd/m2
10.1-inch LCD screen is a MIPI interface, TFT, full perspective, resolution of 1200 * 1920 industrial LCD display
Product Description

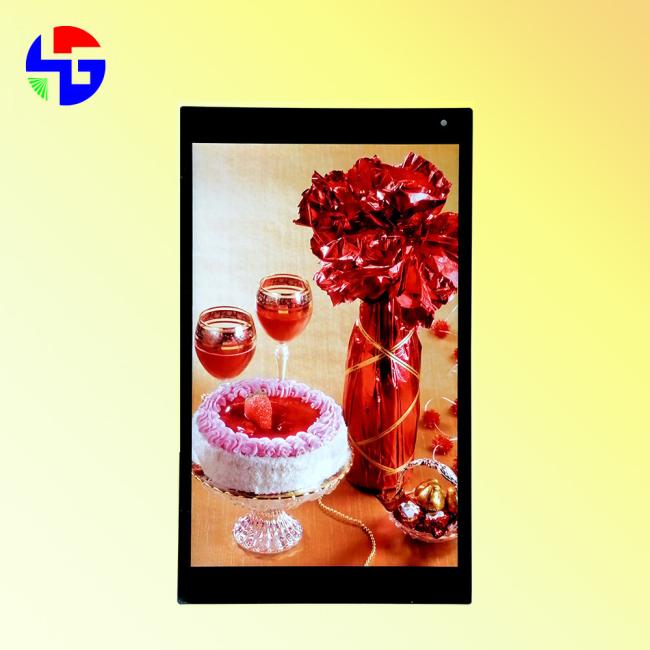

10.1-inch LCD screen is a MIPI interface, TFT, full perspective, resolution of 1200 * 1920 industrial LCD display, used for industrial handheld and related products
Product parameter details
| Model | HG101WU008T01 | Application industry | Industrial handheld |
| Size | 10.1 inch | Arrangement | 1200*1920 |
| Display size | 135.36mm*216.58mm | External dimensions | 148.4mm*253.4mm*4.1mm |
| Viewing Angle | ALL | Luminance |
280cd/m2(customizable) |
| Contrast ratio | 1000 | NTSC | 67% |
| Signal types | MIPI-4,25PIN | ||
| Temperature |
Operating temperature: -10℃ ~ + 60℃, storage temperature: -20℃ ~ + 70℃ |
||
| TP structure | G+G | Cover plate | 0.7 Dragon trace of the second generation |
| TP IC | ILI2511 | TP interface | I²C |
| Remark: | |||
Description of products

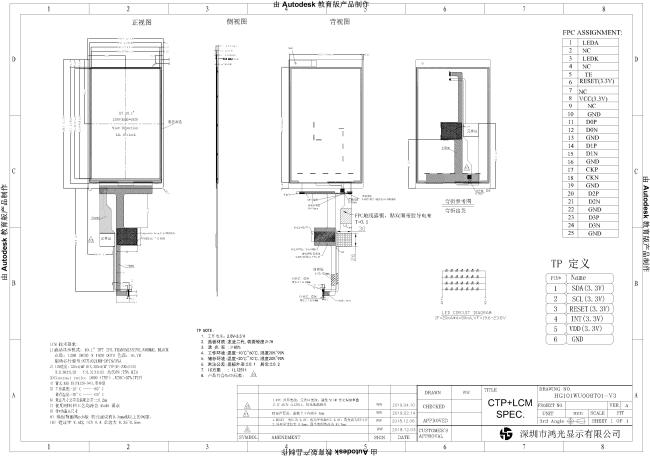

HG10WU008T01 is a LCM+CTP, full view of industrial LCD touch screen,
The resolution is 1200*1920, and the effect is IPS
It is composed of TFT LCD panel, driver IC, FPC, backlight source and CTP.
Using MIPI-4 channel interface 25PIN, can work at -10℃~60℃, storage temperature: -20℃~70℃
This product is widely used in industrial control, medical, handheld, security, vehicle, instrumentation and other related products
All products are available with or without touch and industrial drive boards, no matter what configuration you choose,
Can be customized according to your requirements (can be customized backlight, FPC, touch screen, industrial drive board)
It also meets RoHS and CE certification standards
If you can't find a suitable one, please contact us for a recommendation.
Packaging and transportation
Packaging details:
1. All products are packaged correctly to ensure safety.
2. For small-size products, we use the tray = carton.
3. For larger sizes, we use knife cards + foam + cartons.
4. We can also design packaging according to customer requirements.
Transport
1. Through express delivery (3-7 working days),
2. Marine transportation (15-30 days), suitable for conventional mass production.
3. Air transport (4-5 days), from airport to airport.
