4.3 Inch 480x272 TFT LCD Screen 1.1mm Asahi Glass Super Anti Interference
4.3inch is G+G structure, 1.1mm asahi glass resolution 480*272, super anti-interference TFT LCD touch screen
Product description
4.3in is G+G structure, 1.1mm asahi glass, surface hardness ≥6H, resolution 480*272, super anti-interference TFT LCD touch screen, used for industrial instruments, meters, equipment, intelligent digital and other related products.
Product parameter details
| Model | CTP-HG043HV002T02 | Application industry |
Intelligent digital |
| Size/inch | 4.3-inch | Arrangement | 480*272 |
| Display size | 96.04mm*54.86mm | External dimensions | 105.5mm*67.2mm*2.0mm |
| 80% | Surface hardness | ≥6H | |
| Temperature | Operating temperature:-20℃~70℃ | ||
| TP structure | G+G | Cover plate | 1.1mm Asahi glass |
|
Driver IC |
GT911 | TP interface | I²C |
| Remark | Customizable Lens,FPC, Sensor, IC can be selected according to special requirements (such as wet hands, gloves, active pen, explosion-proof, electromagnetic interference) | ||
Description of Products

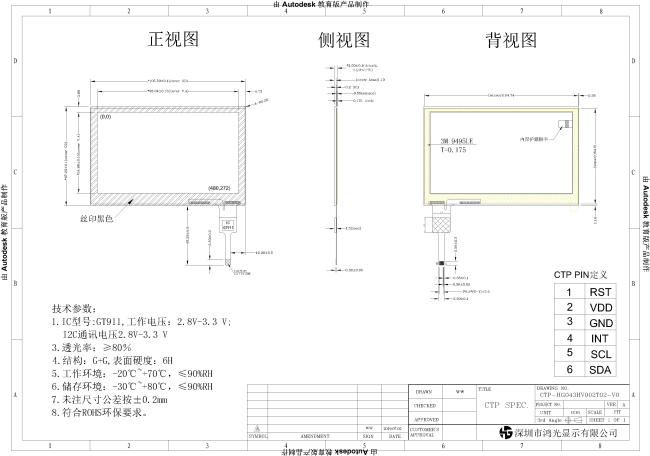

The 4.3-inch CTP-HG043HV002T02 capacitive touch panel
It is composed of lens,TP Sensor, FPC and IC.
Using IIC interface, ZIF 6PIN, can work under -20~70
Widely used in industrial control, medical, handheld, security, vehicle, instrumentation and other related products
Can also be customized according to your requirements (Lens,FPC, Sensor can be customized)
Comply with RoHS and CE certification standards.
If you can't find a suitable one, please contact us for a recommendation.
Packaging and transportation
Packaging details:
1.All products are packaged correctly to ensure safety.
2.For small-size products, we use the tray = carton.
3.For larger sizes, we use knife cards + foam + cartons.
4. We can also design packaging according to customer requirements.
Transport
1. Through express delivery (3-7 working days),
2. Marine transportation (15-30 days), suitable for conventional mass production.
3. Air transport (4-5 days), from airport to airport.
