7 Inch 1.8mm Thick Asahi Glass 1024x600 TFT LCD Touch Screen Touch Screen
7-inch touch screen is a TFT LCD touch screen with G+G structure, 1.8mm thick asahi glass and resolution of 1024*600
Product description
7-inch touchscreen is a TFT LCD touch screen with G+G structure, 1.8mm thick asahi glass, surface hardness greater than or equal to 6H, and resolution of 1024*600, suitable for frame paste or full paste process, widely used in vehicle, smart home and other related products
Product parameter details
| Model | CTP-HG070WS004T06 | Application industry | Vehicle |
| Size | 7 inch | Arrangement | 1024*600 |
| Display size | 154.55mm*86.32mm | External dimensions | 165.04mm*100.03m*1.78mm |
| luminousness | ≥85% | Surface hardnes | ≥6H |
| Temperature | Operating temperature:-20℃~70℃ | ||
| TP structure | G+G | Cover plate | 1.8mm Asahi glass |
| TP IC | GT911 | TP interface | I²C |
| Remark | Customizable Lens,FPC, Sensor, IC can be selected according to specialrequirements (such as wet hands, gloves, active pen,explosion-proof,electromagnetic interference) | ||
Description of Products

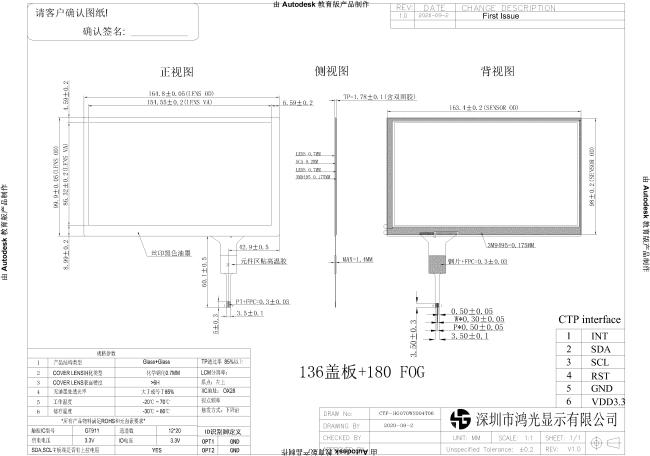

This is a 7-inch CTP-HG070WS004T06 capacitive touch screen
It is composed of lens,TP Sensor, FPC and IC.
Using IIC interface, ZIF 6PIN, can work at -20~70 temperature
Widely used in industrial control, medical, handheld, security, vehicle, instrumentation and other related products
Can also be customized according to your requirements (Lens,FPC, Sensor can be customized)
Comply with RoHS and CE certification standards
If you can't find a suitable one, please contact us for a recommendati
Packing and Shipping
Packing Details:
1. All products are packed in the correct way to ensure safety.
2. For small size products, we use pallets = cartons.
3. For larger sizes, we use knife card + foam + carton.
4. We can also design packing according to customer's requirement.
transport
1. By express delivery (3-7 working days), applicable to emergency time and small amounts.
2. Sea transportation (15-30 days), suitable for conventional mass production.
3. Airfreight (4-5 days), from airport to airport.
