10.1 Inch TFT LCD Touch Screen 1280x800 3mm Asahi Glass Electromagnetic Shielding
10.1 inch is G+G structure, 3mm asahi glass resolution 1280*800 electromagnetic shielding TFT LCD touch screen
Product description
10.1 inch is G+G structure, 3mm asahi glass, surface hardness ≥7H, resolution 1280*800, super anti-interference electromagnetic shielding TFT LCD touch screen, matching related electromagnetic shielding products.
Product parameter details
| Model | CTP-HG101WX005T01 | Application industry | industrial equipment |
| Size | 10.1 inch | Arrangement | 1280*800 |

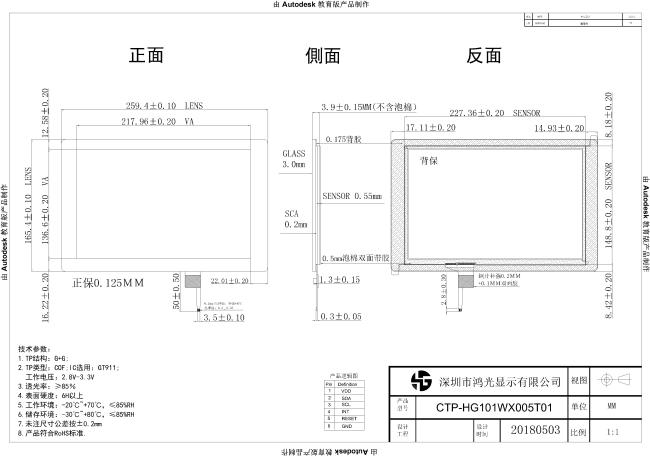

| Display size | 217.96mm*136.6mm | External dimensions | 259.4mm*165.4mm*3.9mm |
| luminousness | ≥85% | Surface hardnes | ≥7H |
| Temperature | Operating temperature:-20℃~+70℃ | ||
| TP structure | G+G | Cover plate | 3mm Asahi glass |
| TP IC | GT911 | TP interface | I²C |
| Remark | electromagnetic shielding | ||
Description of Products

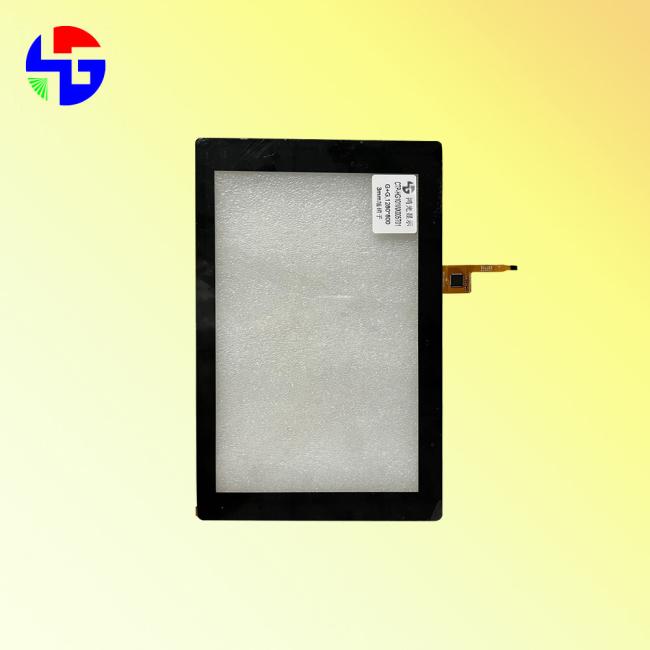

This 10.1 inch CTP-HG101WX005T01TFT LCD touch screen
It is composed of 3mm asahi glass cover plate,TP Sensor, FPC,IC, matching relevant electromagnetic shielding products
Using IIC interface, ZIF 6PIN, can work at -20~70 temperature
Widely used in industrial control, medical, handheld, security, vehicle, instrumentation and other related products
Lens,FPC, Sensor and driver chip can be customized according to your requirements. The model can be selected according to special technical indicators (such as wet hand, gloves, active pen, explosion-proof, electromagnetic interference, wide temperature)
Comply with RoHS and CE certification standards
If you can't find a suitable one, please contact us for a recommendation
Packing and Shipping
Packing Details:
1. All products are packed in the correct way to ensure safety.
2. For small size products, we use pallets = cartons.
3. For larger sizes, we use knife card + foam + carton.
4. We can also design packing according to customer's requirement.
transport
1. By express delivery (3-7 working days), applicable to emergency time and small amounts.
2. Sea transportation (15-30 days), suitable for conventional mass production.
3. Airfreight (4-5 days), from airport to airport.
