17 Inch G+G Structure TFT LCD Touch Screen 1280x1024 Thickness 2.5mm
17 inch is G+G structure, thickness 2.5mm resolution of 1280*1024, super anti-interference TFT LCD touch screen
Product description
17 inch is G+G structure, thickness 2.5mm, surface hardness ≥6H, resolution of 1280*1024, super anti-interference TFT LCD touch screen, ultra-wide temperature, industrial driver chip EXC80H5680STCG, used for industrial control instruments and other related products
Product parameter details
| Model | CTP-HG170SX006T01-V0 | Application industry | Industrial control instruments |
| Size/inch | 17 inch | Arrangement | 1280*1024 |
| Display size | 338.92mm*271.34mm | External dimensions | 379.92mm*312.34mm*2.5mm |
| luminousness | ≥85% | Surface hardnes | ≥7H |
| Temperature | Operating temperature:-20℃~+70℃ | ||
| TP structure | G+G | Cover plate | Corning III 1.8mm |
| TP IC | EXC80H5680STCG | TP interface | USB and I²C dual interface |
| Remark | Support ultra-wide temperature, wet hand operation, various styles of glove operation | ||
The product description

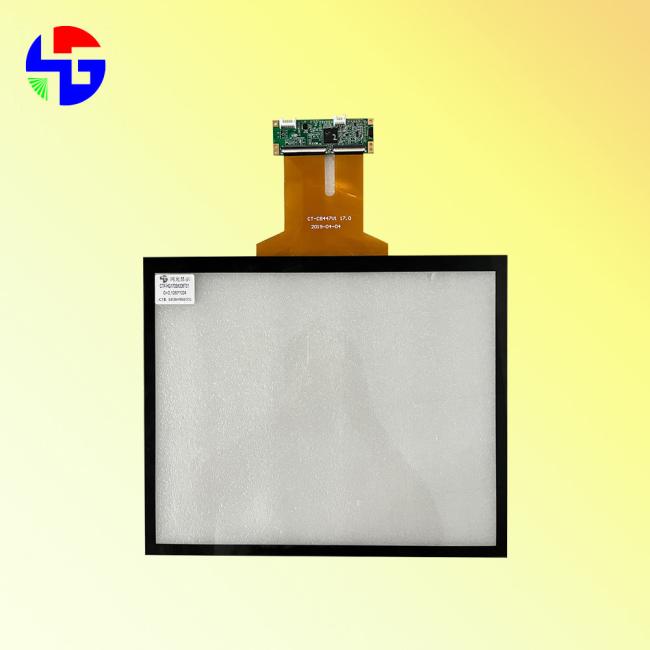

This is a 17-inch CTP-HG170SX006T01-V0 capacitive TFT LCD touch screen
Composed of cover plate,TP Sensor, FPC,IC, Corning third-generation cover plate, double-sided blanking
Using USB and I²C dual interface, ZIF 6PIN, can work at -30 to 80 temperatures
Widely used in industrial control, medical, handheld, security, vehicle, instrumentation and other related products
You can also customize the Lens,FPC, Sensor, driver chip according to your requirements can be selected according to special technical indicators (such as: wet hands, gloves, active pen, explosion proof, electromagnetic interference, wide temperature)
Comply with RoHS and CE certification standards
If you can't find one, please contact us for a recommendation
