2mm Steel Plate Pressure LCD Touch Screen 9.7 Inch Thick Tempered Glass
9.7-inch thick tempered glas+2mm steel plate pressure TFT LCD touch screen
Product description
9.7-inch cover plate is 2.85mm thick tempered glass +2mm steel plate pressure protection integrated molding TFT LCD touch screen, used for brake machine and other related products
Product parameter details
| Model | LS-HG097QX003Z08-V0 | Application industry | gate machine |
| Size/inch | 9.7 inch | CS(Mpa) |
≥450mpa |
| Display size | 74.8mm*49.4mm | External dimensions | 196mm*107mm*2.85mm |
| luminousness | ≥85% | Surface hardnes | ≥6H |
| Working Temperature | -20℃~+70℃ | Cover plate | 2.85mm Asahi glass |
| Remark | |||
Description of Products

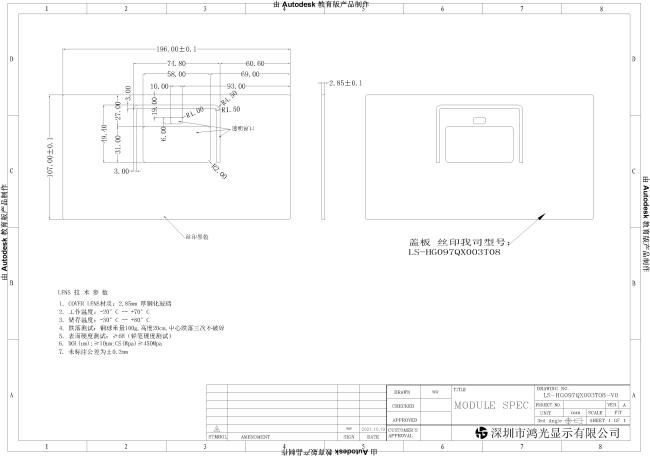

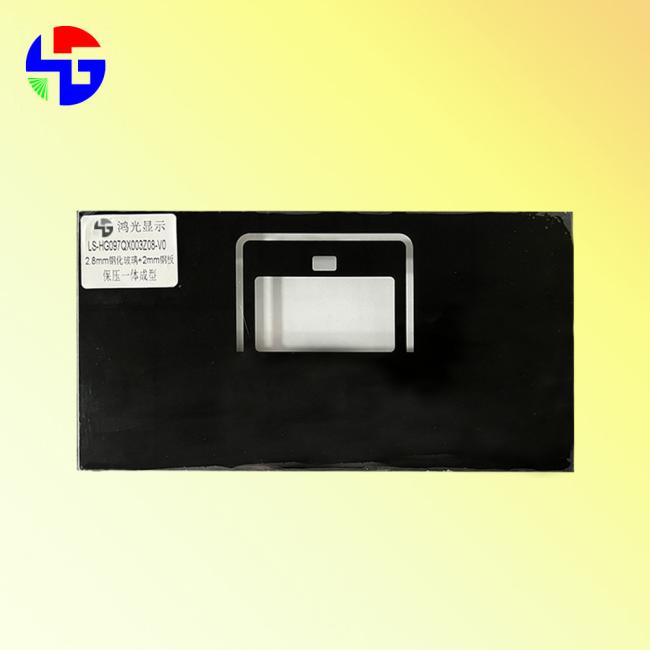

This is the cover of the 9.7-inch LS-HG097QX003Z08-V0
It is formed by cover plate + steel plate pressure preservation, and the working temperature is -20~+70
Widely used in industrial control, instrumentation and other related products
You can also customize the Lens,FPC, Sensor, driver chip according to your requirements can be selected according to special technical indicators (such as: wet hands, gloves, active pen, explosion proof, electromagnetic interference, wide temperature)
Comply with RoHS and CE certification standards
If you can't find one, please contact us for a recommendation
Packing and shipping
Packing details:
1. All products are packaged in the correct way to ensure safety.
2. For small size products, we use pallets = cartons.
3. For larger sizes, we use knife card + foam + carton.
4. We can also design packaging according to customer's requirements.
transport
1. By express (3-7 working days), suitable for emergency time and small amount.
2. By sea (15-30 days), suitable for routine mass production.
3. By air (4-5 days), from airport to airport.
