1.1mm ITO Glass TFT LCD Touch Screen 1280x800 / 1920x1200 Display
10.1 inch is 1.1mmITO glass, super interference, can be used in 1280*800/1920*1200 resolution TFT LCD touch screen
Product description
10.1 inch is 1.1mmITO glass, super interference, can be used in 1280*800/1920*1200 resolution TFT LCD touch screen, suitable for industrial and related products.
Product parameter details
| Model | RTP-HG101WX011R01 | Application industry | Industrial |
| Size/inch | 10.1 inch | Arrangement | 1280*800和1920*1200 |

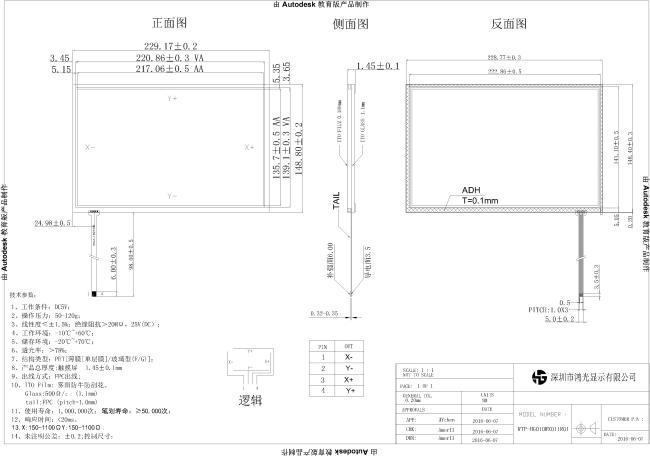

| Display size | 220.86mm*139.1mm | External dimensions | 229.17mm*148.8mm*1.45mm |
| luminousness | >78% | Glass frosted hardnes | 1.1mm ITO glass |
| Temperature | Operating temperature:-10℃~+60℃ | ||
| Signal types | 4-wire resistor TP | ||
| Remark | |||
Description of Products

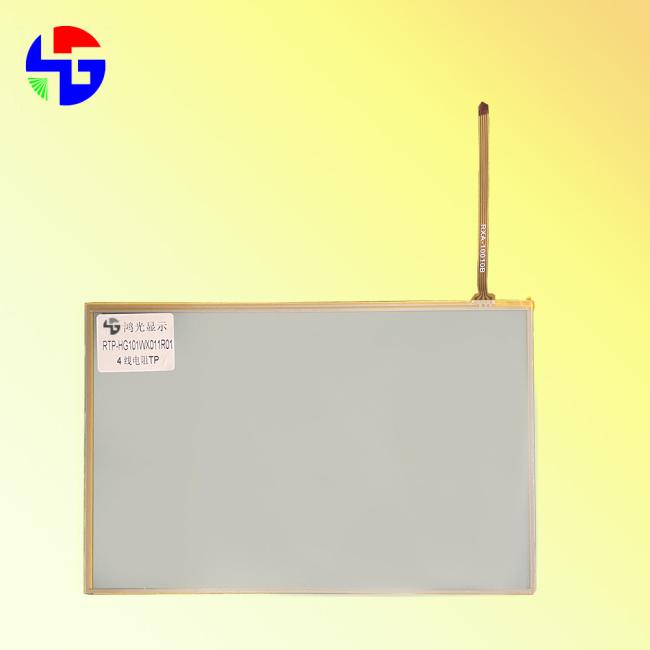

10.1 inch RTP-HG101WX011R01 resistive TFT LCD touch screen
It is composed of cover plate,TP Sensor, FPC and IC. ITO glass is anti-scratch and anti-cow fog surface, with service life of 1,000,000 times and response time less than 20ms.
Widely used in industrial control, medical, handheld, security, vehicle, instrumentation and other related products
Lens,FPC, Sensor and driver chip can be customized according to your requirements. The model can be selected according to special technical indicators (such as wet hand, gloves, active pen, explosion-proof, electromagnetic interference, wide temperature)
Comply with RoHS and CE certification standards
If you can't find a suitable one, please contact us for a recommendation
