300Mbps Huawei B315 Original Unlock for 4G LTE Router Huawei B315S-22 With Sim Card Slot and LAN RJ11 Port
Price:
Negotiable
MOQ:
1
Delivery Time:
10
Brand:
Huawei
Product Description
Key attributes
Product Description
50Mbps Original Unlock 4G LTE Router B315 B315S-22 With Sim Card Slot And LAN RJ11 Port
B315 is a new 4G LTE CAT 4 CPE which is the upgrade version of B593 router. Compare to B593, it has faster wireless performance and it has a complete suite of Voice over IP (VOIP) functions which the B593 doesn't have.

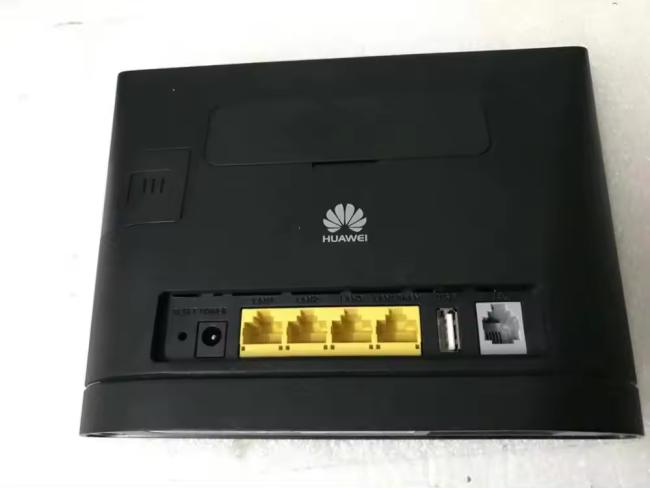

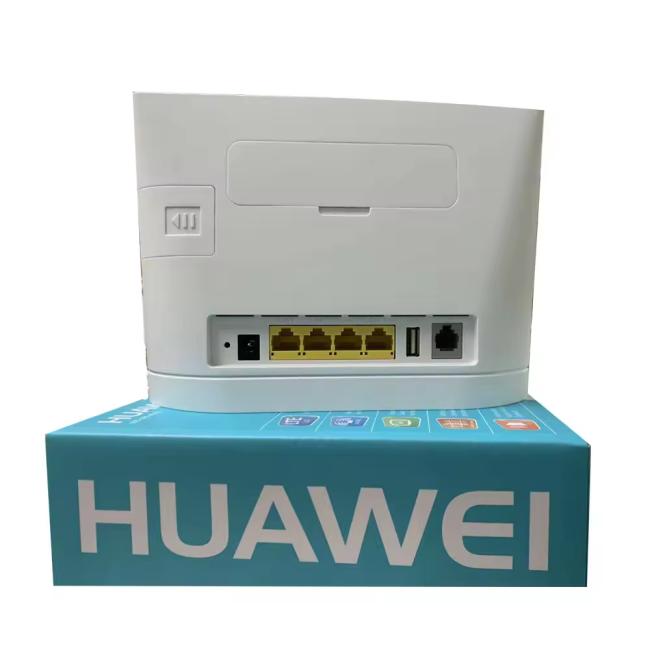

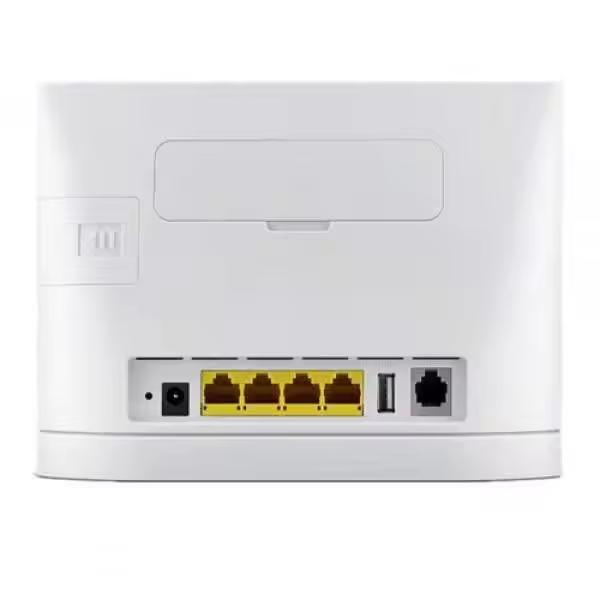

At the backside of B315 router, there are 4 Ethernet ports for LAN/WAN and 1 telephone port. It also features a USB 2.0 port with which you can a printer or external memory for easy storage and transfer files between devices, such as HDD, flash drives, network storage devices and printers. This CPE could cover smoother wireless network for 250 meters.
B315 Technical Specifications
Device type: WiFi Wireless Router
Category: LTE Category 4
Model: B315
Weight: <500g (not including AC adapter)
Dimensions: 139 x 186 x 46 mm
Networks:
* LTE/-HSPA+/HSPA+/HSPA/WCDMA//GPRS/GSM
* B315s-607: FDD 700/900/1800/2100/2600 & TDD 2300Mhz
* B315s-22: FDD 800/900/1800/2100/2600 & TDD 2600Mhz
* 3G UMTS B1/B8 1900/2100Mhz
* GSM B2/B3/B5/B8 850/900/1800/1900 MHz
Download Speeds:
* LTE FDD: DL 150 Mbps, 50 Mbps UL
* LTE TDD DL 112 Mbps, 10 Mbps UL
* -HSPA + DL 42 Mbps, 5.76 Mbps UL
* HSPA + DL 21 Mbps (64QAM) / 28 Mbps (MIMO) STREET 5.76 Mbps
* HSPA DL 14.4 Mbps, 5.76 Mbps UL
* WCDMA PS: 384 kbps
* : DL 296 kbps, 236.8 kbps UL
Features:
* LTE 2*2 MIMO
* Wi-Fi 802.11b/g/n, up to 32 users ed, intelligent Wi-Fi interference elimination alogorithm, 250 meters coverage
* Support VPN Passthrough, convenient for ll enterprise to set up private network
* Download HiLink APP to mangage the CPE more conveniently.
* 4 Gigabit Ethernet port & 1 telephone port to support data service & voice service
Ports:
* 3 inputs LAN (RJ45)
* Port WAN / LAN (RJ45)
* USB 2.0 port to support USB storage and printer
* Phone port (RJ11)
* Two antenna ors
* The entrance to the SIM card
Indicators: Power, ion status, Indicators Wi-Fi / WPS, LAN light,
Supported OS: Windows 8.1, Windows 8, Windows 7, Windows Vista SP1 / SP2, Windows XP SP3, Mac OS X 10.9, 10.8, 10.7 with updates
B315 is a new 4G LTE CAT 4 CPE which is the upgrade version of B593 router. Compare to B593, it has faster wireless performance and it has a complete suite of Voice over IP (VOIP) functions which the B593 doesn't have.
At the backside of B315 router, there are 4 Ethernet ports for LAN/WAN and 1 telephone port. It also features a USB 2.0 port with which you can a printer or external memory for easy storage and transfer files between devices, such as HDD, flash drives, network storage devices and printers. This CPE could cover smoother wireless network for 250 meters.
B315 Technical Specifications
Device type: WiFi Wireless Router
Category: LTE Category 4
Model: B315
Weight: <500g (not including AC adapter)
Dimensions: 139 x 186 x 46 mm
Networks:
* LTE/-HSPA+/HSPA+/HSPA/WCDMA//GPRS/GSM
* B315s-607: FDD 700/900/1800/2100/2600 & TDD 2300Mhz
* B315s-22: FDD 800/900/1800/2100/2600 & TDD 2600Mhz
* 3G UMTS B1/B8 1900/2100Mhz
* GSM B2/B3/B5/B8 850/900/1800/1900 MHz
Download Speeds:
* LTE FDD: DL 150 Mbps, 50 Mbps UL
* LTE TDD DL 112 Mbps, 10 Mbps UL
* -HSPA + DL 42 Mbps, 5.76 Mbps UL
* HSPA + DL 21 Mbps (64QAM) / 28 Mbps (MIMO) STREET 5.76 Mbps
* HSPA DL 14.4 Mbps, 5.76 Mbps UL
* WCDMA PS: 384 kbps
* : DL 296 kbps, 236.8 kbps UL
Features:
* LTE 2*2 MIMO
* Wi-Fi 802.11b/g/n, up to 32 users ed, intelligent Wi-Fi interference elimination alogorithm, 250 meters coverage
* Support VPN Passthrough, convenient for ll enterprise to set up private network
* Download HiLink APP to mangage the CPE more conveniently.
* 4 Gigabit Ethernet port & 1 telephone port to support data service & voice service
Ports:
* 3 inputs LAN (RJ45)
* Port WAN / LAN (RJ45)
* USB 2.0 port to support USB storage and printer
* Phone port (RJ11)
* Two antenna ors
* The entrance to the SIM card
Indicators: Power, ion status, Indicators Wi-Fi / WPS, LAN light,
Supported OS: Windows 8.1, Windows 8, Windows 7, Windows Vista SP1 / SP2, Windows XP SP3, Mac OS X 10.9, 10.8, 10.7 with updates
Specification
| item | |
| Max. LAN Data Rate | 300Mbps |
| With Modem Function | NO |
| Standards And Protocols | Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n |
| Wi-Fi Supported Frequency | 2.4G & 5G |
| Supports WDS | Yes |
| Supports WPS | Yes |
| 2.4G Wi-Fi Transmission Rate | 150 Mbps |
| Encryption Type | WPA2-PSK, WPA2, WPA2-Personal |
| Products Status | New |
| Type | CPE |
| Function | FireWall, QoS, VPN |
| LAN Ports | 1 |
| Brand Name | |
| Place of Origin | China |
| Guangdong | |
| Product name | B315S-22 |
| Standard | IEEE802.11b/g/n |
| User | 32User |
| Antenna | *2 |
| Network | 4G / 3G / |
| LTE FDD | 800/900/1800/2100/2600Mhz |
| /GPRS/GSM | 850/900/1800/1900 MHz |
| UMTS / -HSPA+ | 900/2100MHz |
