VRB Series Shimpo Reducer Nidec Shimpo Transmission Gearbox Planetary VRB090
Product Description:
Nidec Shimpo's VRB Series Gearbox is a high performance gearbox ideal for industrial applications. With a maximum axial load of 640N and a weight of 5KG, the VRB series is an ideal solution for robotic, automation equipment, and CNC machine applications. Nidec Shimpo's advanced engineering and design delivers the highest performance, reliability, and efficiency for the most demanding industrial gearbox solutions.
Technical Parameters:
|
Frame size |
Stage | Ratio | Nominal output torque | Maximum output torque | Emergency stop torque | Nominal input speed | Maximum input speed | Permitted radial load | Permitted axial load |
| [Nm] | [Nm] | [Nm] | [rpm] | [rpm] | [N] | [N] | |||
|
090 |
1 Single |
3 | 50 | 80 | 200 | 3000 | 6000 | 810 | 930 |
| 4 | 75 | 125 | 250 | 3000 | 6000 | 890 | 1100 | ||
| 5 | 75 | 125 | 250 | 3000 | 6000 | 960 | 1200 | ||
| 6 | 75 | 125 | 250 | 3000 | 6000 | 1000 | 1300 | ||
| 7 | 75 | 125 | 250 | 3000 | 6000 | 1100 | 1300 | ||
| 8 | 75 | 125 | 250 | 3000 | 6000 | 1100 | 1400 | ||
| 9 | 50 | 80 | 200 | 3000 | 6000 | 1200 | 1500 | ||
| 10 | 50 | 80 | 200 | 3000 | 6000 | 1200 | 1600 | ||
| Double | 15 | 50 | 80 | 200 | 3000 | 6000 | 1400 | 1900 | |
| 16 | 75 | 125 | 250 | 3000 | 6000 | 1400 | 1900 | ||
| 20 | 75 | 125 | 250 | 3000 | 6000 | 1500 | 2100 | ||
| 25 | 75 | 125 | 250 | 3000 | 6000 | 1600 | 2200 | ||
| 28 | 75 | 125 | 250 | 3000 | 6000 | 1700 | 2200 | ||
| 30 | 50 | 80 | 200 | 3000 | 6000 | 1700 | 2200 | ||
| 35 | 75 | 125 | 250 | 3000 | 6000 | 1800 | 2200 | ||
| 40 | 75 | 125 | 250 | 3000 | 6000 | 1900 | 2200 | ||
| 45 | 50 | 80 | 200 | 3000 | 6000 | 2000 | 2200 | ||
| 50 | 75 | 125 | 250 | 3000 | 6000 | 2100 | 2200 | ||
| 60 | 75 | 125 | 250 | 3000 | 6000 | 2200 | 2200 | ||
| 70 | 75 | 125 | 250 | 3000 | 6000 | 2300 | 2200 | ||
| 80 | 75 | 125 | 250 | 3000 | 6000 | 2400 | 2200 | ||
| 90 | 50 | 80 | 200 | 3000 | 6000 | 2400 | 2200 | ||
| 100 | 50 | 80 | 200 | 3000 | 6000 | 2400 | 2200 |
|
size |
Stage |
Ratio |
Maximum radial load |
Maximum axial load |
Weight |
Moment of inertia (≦φ8) |
Moment of inertia (≦φ14) |
Moment of inertia (≦φ19) |
Moment of inertia (≦φ28) |
| [N] | [N] | [kg] | [kgcm2] | [kgcm2] | [kgcm2] | [kgcm2] | |||
|

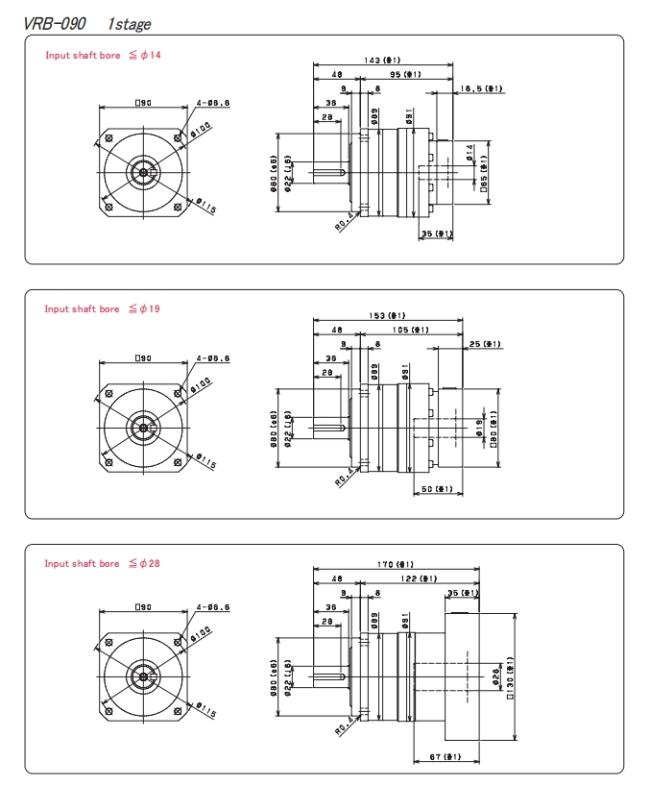

090 |
1 Single |
3 | 2400 | 2200 | 3.7 | - | 0.72 | 1.2 | 3.2 |
| 4 | 2400 | 2200 | - | 0.49 | 0.95 | 3.0 | |||
| 5 | 2400 | 2200 | 0.40 | 0.86 | 2.9 | ||||
| 6 | 2400 | 2200 | - | 0.36 | 0.82 | 2.8 | |||
| 7 | 2400 | 2200 | - | 0.32 | 0.79 | 2.8 | |||
| 8 | 2400 | 2200 | - | 0.31 | 0.77 | 2.8 | |||
| 9 | 2400 | 2200 | - | 0.29 | 0.76 | 2.8 | |||
| 10 | 2400 | 2200 | - | 0.29 | 0.75 | 2.8 | |||
|

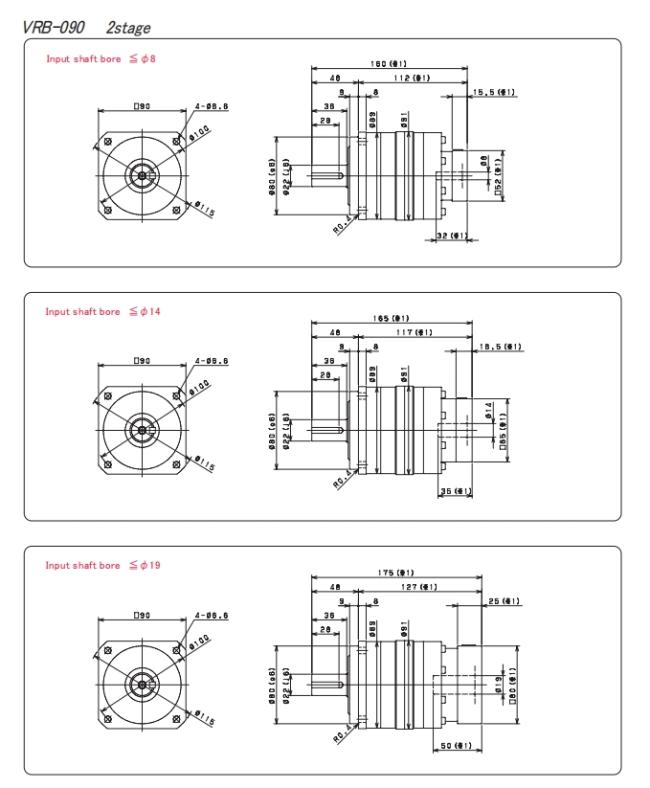

Double |
15 | 2400 | 2200 | 4.2 | 0.13 | 0.28 | 0.72 | - | |
| 16 | 2400 | 2200 | 0.15 | 0.30 | 0.74 | - | |||
| 20 | 2400 | 2200 | 0.13 | 0.28 | 0.72 | - | |||
| 25 | 2400 | 2200 | 0.12 | 0.28 | 0.71 | - | |||
| 28 | 2400 | 2200 | 0.14 | 0.29 | 0.73 | - | |||
| 30 | 2400 | 2200 | 0.10 | 0.25 | 0.70 | - | |||
| 35 | 2400 | 2200 | 0.12 | 0.27 | 0.71 | - | |||
| 40 | 2400 | 2200 | 0.099 | 0.25 | 0.70 | - | |||
| 45 | 2400 | 2200 | 0.12 | 0.27 | 0.71 | - | |||
| 50 | 2400 | 2200 | 0.098 | 0.25 | 0.69 | - | |||
| 60 | 2400 | 2200 | 0.098 | 0.25 | 0.69 | - | |||
| 70 | 2400 | 2200 | 0.097 | 0.25 | 0.69 | - | |||
| 80 | 2400 | 2200 | 0.097 | 0.25 | 0.69 | - | |||
| 90 | 2400 | 2200 | 0.097 | 0.25 | 0.69 | - | |||
| 100 | 2400 | 2200 | 0.097 | 0.25 | 0.69 | - |
Feature:
The Nidec Shimpo gearbox is designed to provide high torque at low speeds, making it ideal for applications that require heavy lifting or moving large loads. It is also known for its high efficiency, which means that it can help reduce energy consumption and operating costs.
