0-42MPa Pump Head Pressure Ion Exchange Chromatography Instrument Wayeal IC6200

Price Negotiable

Price: Negotiation

MOQ: 1

Delivery Time: 30 days

Brand: Wayeal

Product Description

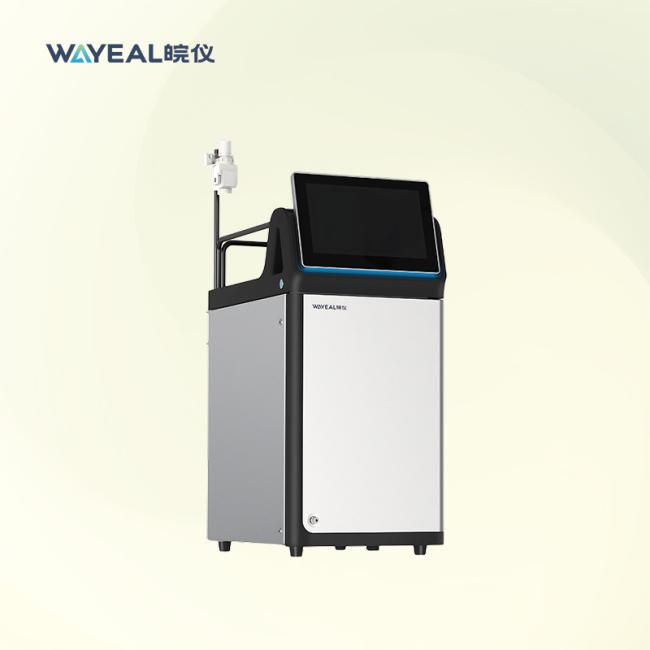

Wayeal IC6200 0-35MPa Pump Head Pressure Ion Exchange Chromatography Instrument

Introduction of Ion Chromatography Instrument

Ion chromatography is a method for separating and quantifying substances which exist as ions in an aqueous solution.The electrolyte solution,called as the mobile phase,is constantly pumped through a column packed with an ion exchange resin,the stationary phase.Sample ions injected into the mobile phase are separated based on the difference in their affinity with ion exchange resin.An electrical conductivity detector is used as the detector,and each ion is quantitatively analyzed.

Features of Ion Chromatography Instrument

1. Full PEEK pump and electric injection valve.

2. All-plastic non-metallic flow path

3. Highly precise teperature control of the whole system.

4. Electrolytic self-regenerating membrane suppressor.

5. High precision temperature-controlled conductivity detector

6. Powerful and convenient chromatography workstation.

Parameters of Ion Chromatography Instrument

System Parameter
Qualititative Repeatability	≤0.05%
Quantitative Repeatability	≤0.2%
Pump System
Flow Rate (Full PEEK Pump)	(0.001–12.000) mL/min
Pump Head Pressure Resistance	(0–42) MPa
Flow Rate Set Error	≤ ±0.1%
Flow Rate Stability	≤ ±0.1%
Pressure Display Resolution	0.01 MPa
Suppressor
Suppressor Type	Electrolytic self-regenerating membrane suppressor
Constant Current Range	0–500 mA, adjustable in increments of 1 mA
Column Oven
Temperature Range	Ambient +5°C to 85°C
Temperature Stability	±0.01°C
Compatibility	Compatible with 250 mm and 150 mm length columns
AS2800 Series Autosampler
Quantitative Repeatability	< 0.5% RSD (full-loop injection)
Sample Positions	48 positions / 11 positions
Wash Ports	2 ports (fine wash and coarse wash)
Operating Temperature	10–40°C
Vial Types	5mL/ 100mL
Injection Volume	10 µL – 4000 µL (depending on sample loop size)
Single Injection Cycle Time	Approx. 20s (depending on wash time and injection volume)
Injection Mode	Full-loop injection
AS3110 Series Autosampler
Sample Capacity	64/120 positions
Cooling Temperature Range	4–30°C
Repeatability	< 0.3% RSD (full-loop injection, injection volume > 5 µL)
Syringe Specifications	Standard: 500 µL; Optional: 250 µL, 1000 µL, 2500 µL
Sample Loop Specifications	Standard: 100 µL; Optional: 25 µL, 50 µL, 200 µL
Carryover (Cross Contamination)	< 0.01%
