16.8V 25mm Lithium Battery Electric Garden Pruning Shears With Brushless Motor
25mm Lithium Battery Electric Pruning Shears With Brushless Motor and 16.8V power
Best electric pruning shears, electric shears 25mm
Superpower: The professional cordless pruning blade is forged from SK5 high carbon steel.
This material is durable, and can easily cut branches of 25 mm.
Portable and lightweight: portable design, flexible operation under different conditions.
At the same time, its lightweight and ergonomic non-slip handheld design can help users work more easily for longer. Moreover, it is good for people with arthritis.
Wide range of uses: Electric pruning shears can be used in many kinds of gardens, parks, farms, large pastures, orchards, and greenhouses as a grapevine cutter, tree pruner, garden shears, etc.
Technical parameter:
| Working voltage | 16.8V |
| Lithium battery | 16.8V2AH |
| Charger input voltage | 100-240V AC,50-60Hz |
| Battery charge time | 1-1.5h |
| Battery working time | 3-4h |
| Rated power | 100W |
| Max power | 500W |
| Weight | 0.9Kg |
| Max shear diameter | 25mm |
| Working temp. | -10℃~60℃ |
Product descriptions:
| Sharp & Durable Blades | The professional cordless electric pruning Shears blade is forged from SK5 high carbon steel. This material is sharp, durable and will easily cut branches of 0.98 inches / 25mm. |
| Electric More Powerful | Choosing electric pruning shears instead of cutting the branches with hands power. Just pull the trigger gently to cut the branches automatically. Friendly to arthritis patients and older persons. |
| More Efficient & Saving Time | The shears weigh 980g. Adopt brushless motor and 16.8V power which made that work efficiency are 3-5 times and improve produce. Shockproof and anti-slip, ergonomic design, you will not easily feel tired after longtime using. |
| Large Battery Capacity for Longer Use | Comes with 2pcs 2Ah Battery, which could provide more power when you use this pruning shear. Support more time to use it. |
| Wide Application |
Electric pruner has a wide range of uses, all kinds of gardens, parks, farms, large pastures, orchards, greenhouses,you can cut grape, cherry tree, apple tree,etc. |
Company is specilized in producing electric pruning shears with different shear diameters and types. Shear diameter can be from 20mm to 50mm. We can also improve and customize according to customer's requirements.
Product advantages:
1. Higher efficiency: 2-3 times the efficiency of traditional manual pruning. It is highly efficient in two-way trimming and is suitable for trimming or styling.
2. Good durability and low failure rate: the operation is stable, the complete supporting structure is simple, the cutting ability and life of the blade are high, the fault is small, and the adjustment and maintenance are also convenient.
3. Work performance is stable: the trim quality can meet the horticultural requirements. The flatness of the surface is better than that of manual trimming, and there is basically no leakage.
4. Strong safety protection function, personal / mechanical safety protection: the blade follows the wrench, when the card is dead, the circuit self-test program will start the motor monitoring, the protection motor will not burn.

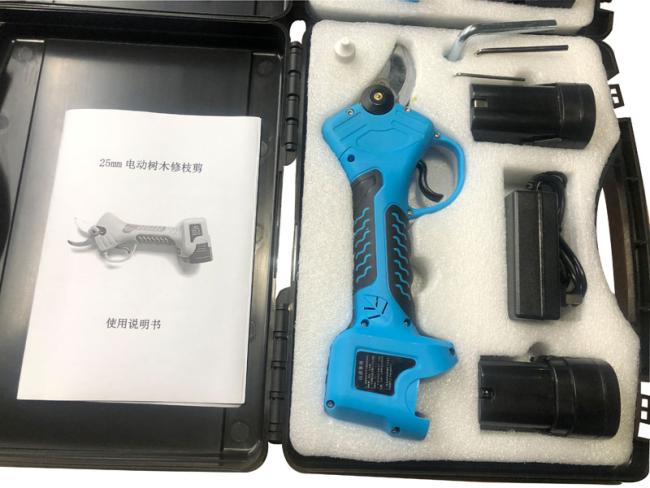

Spare parts in the tool carbinet:
①Electric pruning shear
②Lithium:two pcs
③Charger
④Tools:socket spanner one pcs, internal hexagonal wrench two pcs
⑤lubricating oil
 |
Component list and schematic diagram
①Cutting blade
②Fixed blade
③Blade fixing mechanism
④Trigger
⑤Knob
⑥Power switch and indicator light
⑦Lithium battery
 |
Troubleshooting tips
| The number of consecutive buzzers | fault | solution |
| 1 | Abnormal battery level | Check if the battery is too low |
| 2 | Abnormal communication | Check whether the cable connection ends of each part are loose |
| 3 | Abnormal openings | Add oil onto blade |
| 4 | Phase Loss | Deliver to dealers for maintenance |
| 5 | Motor phase line short circuit | Check whether there is a short circuit in the cable or connector |
| Continuous ring | Satfy warning | Check the body for contact with the blade |

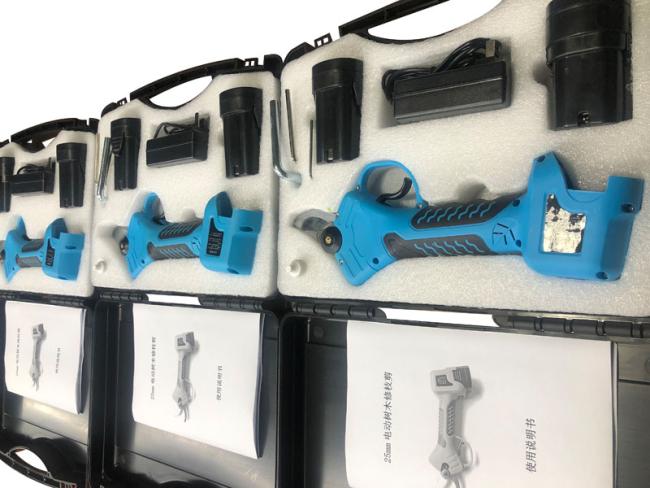

Other pictures:
 |
 |
