Rod Bar Support Metal Conveyor Belts For Electronics Industry
Rod Bar Support Metal Conveyor Belts For Electronics Industry
Mesh Belts deign and produce the Wire mesh belts for powder metallurgy industry. The mesh is very tight spiral wires and straight rods linked together; in order to suitable for transport small parts and heavy duty load weight, the knuckled edge is very important for wire mesh belts. work together with the resistant heat material: SS314, Inconel 601 and other alloy, the wire mesh belts with knuckled edge are very wildly used in high temperature furnaces.
Features and Advantage
● Tightly weave suitable for small parts
● Solid and durable construction suitable for heavy duty
● Knuckled edge give the belt more strength and keep smooth surface
● Straight driven
Specification
● Spiral pitch: 1.5* spiral wire
● Rod Pitch: 8mm-50.8mm
● Spiral wire 0.8mm-5mm
● Rod wire: 1.5mm-8mm
● Selvage options: welded, knuckled, loop and bending
● The width of flat spiral belts over 6.5m
Application
| Heat treatment | Sintering | Brazing |
| Annealing |

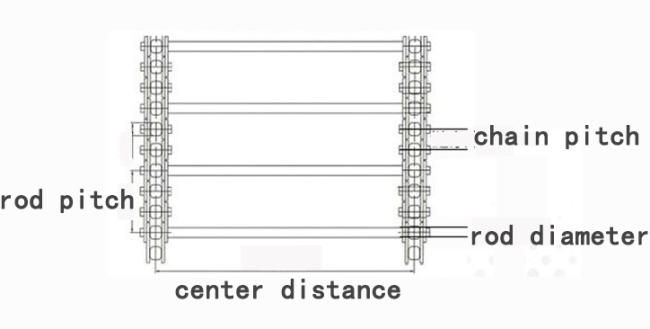

4. Drawing of the rod bar support conveyor belt
