DC Electric Actuators IP69K 12V /24V 1600KG Loading For Food, Beverage Industrial

DC Electric Actuators IP69K 12V /24V 1600KG Loading For Food, Beverage Industrial

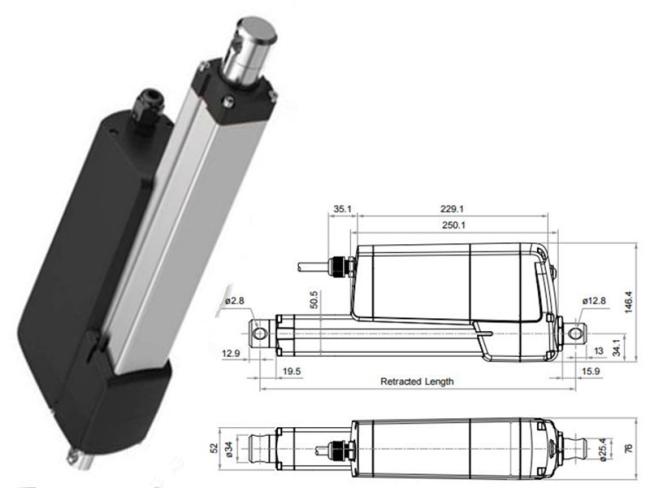

Engineered for durability, the LS-PAT-9 heavy-duty actuator excels in harsh conditions with its IP69 rating for top-tier water and dust protection. Suitable for both agricultural and industrial applications, it features a high load capacity of 16,000 N and is available in 12V or 24V DC configurations. This actuator offers a versatile stroke length from 25 mm to 1000 mm and integrates a built-in output signal for accurate position feedback, making it ideal for high-performance tasks.

Features:

• Supports high load capacities up to 1600KG
• Durable waterproof and dustproof housing
• Equipped with Hall effect or Potentiometer sensors
• Customizable stroke lengths from 50mm to 1000mm
• Available in 12V or 24V DC operating voltage options

Specifications:

• Model: Industrial actuators LS-PAT-81
• Volts: 24 VDC or 12 VDC
• Loading force: 500N~16000N
• Stroke; 50mm~1000mm
• Max. speed at no load:172.5mm/S
• Max. speed at max. load: 6.8mm/S
• Customization: Support
• Application: Agricultural machines, sweepters, food industrial

More information:

About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.Our products have strict quality control and all of them with CE, FCC that are certificated by SGS. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.

Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.

Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
