600lb Forged WCC Ball Valve

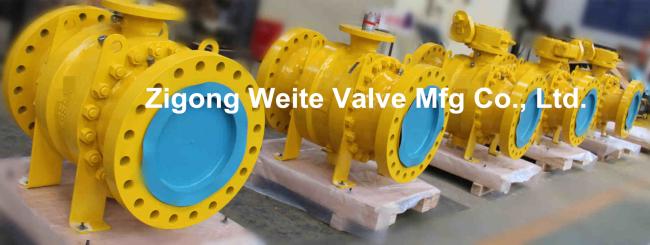

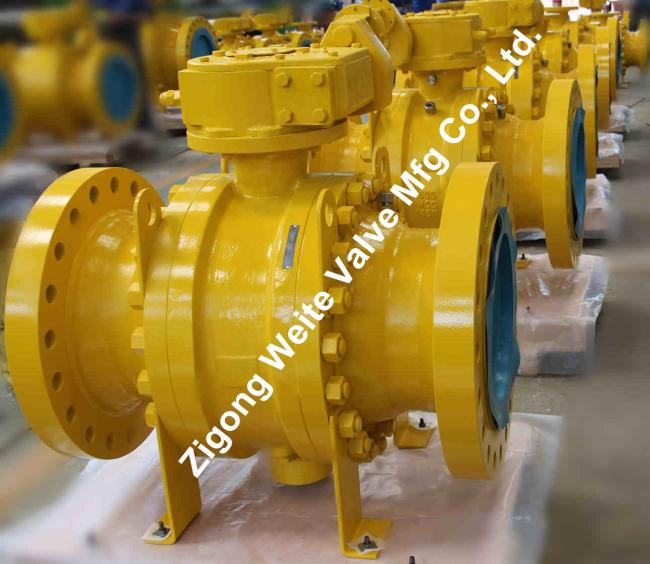

High Pressure Class 600 Forged Trunnion Mounted Ball Valve WCC
Product Description
The Trunnion Mounted ball valve adopts the advanced spring preloaded floating valve seat assembly
and the design mechanism of the upstream seal, so that the valve can be well sealed under low pressure,
high pressure and vacuum. Each valve has two valve seats, which can be sealed in both directions, so
there is no direction limit for installation, no matter which end of the valve can be used as the upstream end,
it is a two-way valve.
Trunnion Mounted Ball Valve Test Procedure
| HYDROSTATIC SEAL TEST API 6D 10.3 and 10.4 | ||||||
| Sequence | Area Pressure | Duration(min) | Description | |||
| SHELL TEST | A | 1.5xPN | 6″-10″ | 5 |
1. Valve in partial open.
|
|
| B | 1.5xPN | 12″-18″ | 15 | |||
| C | 1.5xPN | 20″-60″ | 30 | |||
| SEAT TEST | A | 1.1xPN | 5 | Seat hydrostatic seal at A end towards body B | ||
| B | Atmospheric | |||||
| C | Atmospheric | |||||
| A | Atmospheric | 5 | Seat hydro seal at C end towards body B | |||
| B | Atmospheric | |||||
| C | 1.1xPN | |||||
| A | 1.1xPN | 5 | Seat hydro seal test for both A and C | |||
| B | Atmospheric | |||||
| C | 1.1xPN | |||||
| AIR SEAL TEST API 6D 10.4 | ||||||
| SEAT TEST | A | Atmospheric | 5 | Seat air seal test at A end towards body B | ||
| B | Atmospheric | |||||
| C | 80PSLG(5.5bar) | |||||
| A | 80PSLG(5.5bar) | 5 | Seat air seal test at C end towards body B | |||
| B | 80PSLG(5.5bar) | |||||
| C | Atmospheric | |||||
Trunnion Mounted Ball Valve Feature
Upstream Seal Two-way Valve
Fire-Safe Design API607/API6FA
Valve Cavity Preesure Automatic Relief
Stem and Seat Emergency Sealant Injection
Double Block and Bleed
