Top Entry Casted 10In Air Operated Ball Valve 150LB Pneumatic Actuator
Price:
negotiated
MOQ:
1 Set
Delivery Time:
Negotiable
Brand:
VT
Product Description

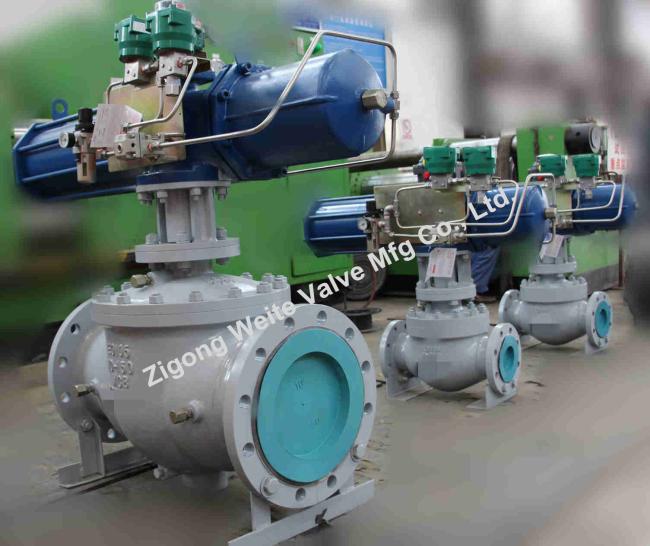

Casted Top Entry Ball Valve 10'' 150LB With Pneumatic Actuator
Product Description
Top Entry Ball Valve can be used as shut-off valve,with the characteristics of safety and
reliability.Meanwhile,top mounted ball valve can be maintenance on-line,that means,this type
of valve's internal parts can be checked and repaired under full pressure without removing the
valve from pipeline.
Specifications
| Design standard | API6D,ASME B16.34,BS5351,ISO17292,DIN | ||
| Connection ends | RF,RTJ flange,butt-welded,thread,socket welded | ||
| Operation | Manual,Pneumatic,Electric,Gas-liquid interaction etc. | ||
| Nominal diameter10 | 10'' | ||
| Pressure range | CLASS 150 | ||
| Materials | WCB | ||
Feature
Mosaic valve seat prevents seal ring from blowing out.
Installing ball into valve body by the upper for repairing Conveniently.
Integral valve body design, top mounted stem makes fixed support, flange structure.
Integral pivot fixed stem design,Double block and bleed..
High strength integral stem structure, ensure the accurate sphere location .Valve stem
uses Blowout proof protection structure.
Because of the corrugated nickel spring make nylon-sealed metal valve seat move to
the ball, which makes valves have two-way sealing function at inlet and outlet.The
superior performance standard nylon and PEEK seats ensure effective sealing in
low-pressure condition.
The stem and body contact effectively with superior performance of anti-static electrical
grounding device.Pre-set driving device platform and screw hole, it can install actuators
at any time. when the seat burns or damages, the metal valve seat will compact sphere
automatically, that will make minimum leakage between seat and body.
