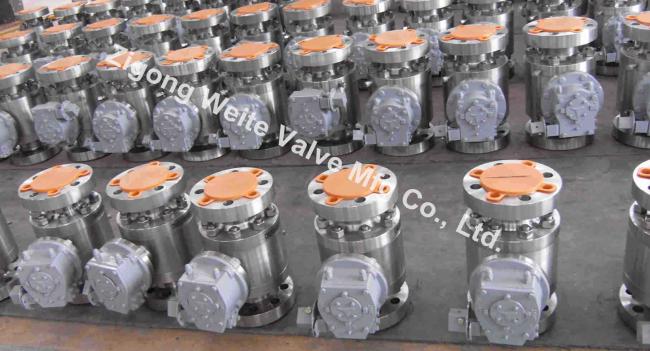

3" 1500LB Stainless Steel Flanged Ball Valve High Preesure F316
3''1500LB High Preesure Stainless Steel Ball Valve Body Material F316
Product Description
Suitable for medium water, steam, air, mud, oil, liquid metal and other corrosive media etc.
Stainless Steel Ball Valve Material Selection
|
Parts
|
Stainless Steel Series
|
|
| CF8,CF3 | CF8M,CF3M | |
|
Body
|
A351-CF8,CF3 | A351-CF8M,CF3M |
|
Ball
|
A182-F304 F304L+HCR |
A182-F316 F316L |
|
Stem
|
A182-F304 F304 |
|
|
Seat Insert
|
PTFE (standard) /PPL(high temperature ) /PEEK/EPDM/VITON/DEVLON | |
|
Packing
|
PTFE / Graphite | |
|
Gasket
|
PTFE / Graphite | |
|
Bearing
|
PTFE | |
|
Bolt
|
A193-B8/8M | A193-B8/8M |
|
Nut
|
A194-8/8M |
A194-8/8M |
Feature
Blow Out Proof Stem Construction
Anti-static Design
Middle Flange with No Leakage Design
Locking Device
Fire-Safe Design:API607/API6FA
Wrench with Valve Open/Close Indication
Advanced and Exclusive Seat Design
Company Profile
Zigong Weite Valve Mfg Co., Ltd. is a professional Manufacture factory, we have been in valve field more than 15 years.
Manufacture and selling Various ball valves(types of floating, Trunnion Mounted, top entry,all welded, metal seal HPHT,
Three-way,Four-way,Stainless Steel etc.).
