Raycus Optical Fiber Laser Source RFL-C15000X 15KW Multi Mode
Price:
Please contact us
MOQ:
1 Set
Delivery Time:
7-15 Work Days
Brand:
Raycus
Product Description

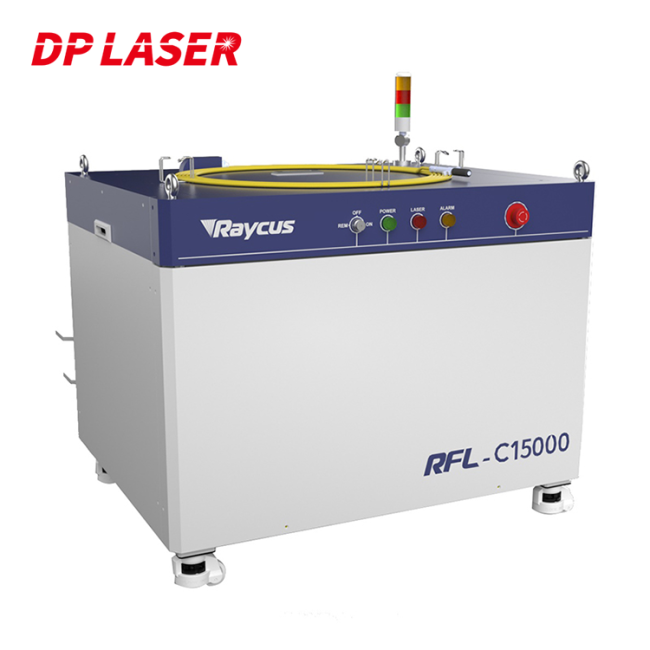

Raycus RFL-C15000X 15000W 15KW Multi Mode Laser Source For Fiber Laser Cutting Machine
Features
It has the advantages of high electro-optical conversion efficiency (>40%), good beam quality, high energy density, wide modulation frequency, strong reliability, long life, and maintenance-free operation. It can be widely used in welding, precision cutting, cladding, and surface treatment. , 3D printing and other fields.
| Model | RFL-C4000 | RFL-C6000 | RFL-C8000 | RFL-C10000 | RFL-C12000 | RFL-C15000 |
| Optical Properties | ||||||
|
Output Power (W) |
4000 | 6000 | 8000 | 10000 | 12000 | 15000 |
|
Wavelength (nm) |
1080±5 | |||||
| Operation Mode | CW/Modulate | |||||
|
Max.Modulation Frequency (KHz) |
5 | 2 | ||||
| Output Power Stability | ±1.4% | |||||
| Red Laser | Yes(0.5mW-1mW) | |||||
| Output Characteristics | ||||||
| Beam Delivery Optics | QBH(Customizable) | |||||
|
Output Fiber Diameter (μm) |
100(Customizable) | |||||
|
BBP (mm.mrad) |
≤4.5 | ≤5 | ||||
| Polarization State | Random | |||||
|
Delivery Cable Length (m) |
20(Customizable) | |||||
| Electrical Characteristics | ||||||
| Power Supply | 340-420(Three Phase-Five Wire Connect) | |||||
|
Power Range (%) |
10%-100% | |||||
| Other Characteristics | ||||||
|
Dimensions (mm) |
670×990×1160 | 900×960×1160 | 1200×960×1160 | 960×1600×1188 | ||
|
Weight (KG) |
<280 | <360 | <400 | <450 | <500 | <800 |
| Cooling | Water Cooling | |||||
|
Operating Temperature (℃) |
10-40 | |||||
