304 Stainless Steel Kettle Thermos Cup Water Bottle Fiber Laser Cutting Machine
304 Stainless Steel Kettle Thermos Cup Water Bottle Fiber Laser Cutting Machine

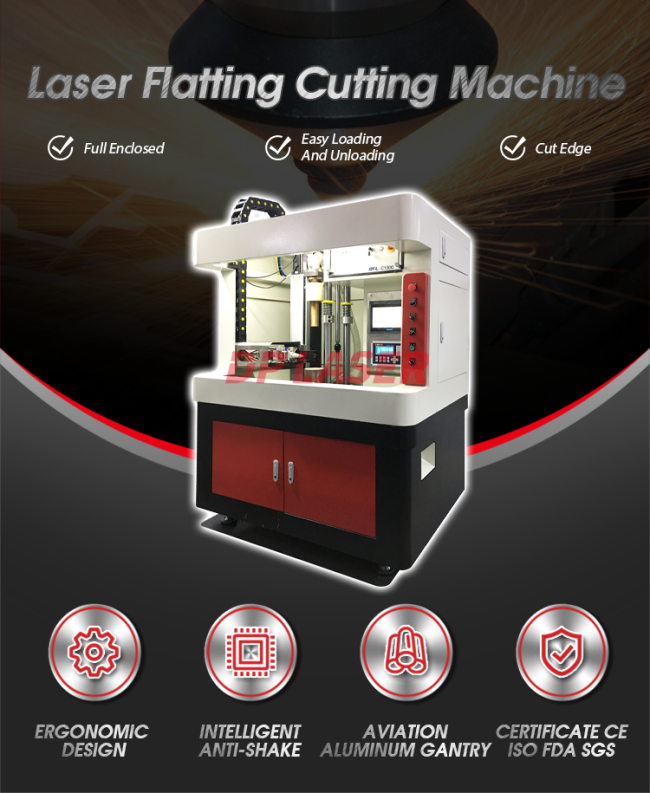

Fiber laser cutting machine can be used for both plane cutting and bevel cutting, and the edges are neat and smooth. axis laser. Compared with ordinary carbon dioxide laser cutting machines, it saves space and gas consumption, and has high photoelectric conversion rate. It is a new energy-saving and environmentally friendly product and one of the world's leading technology products.
Features
1. The speed is fast, the incision is smooth and flat, and generally no follow-up processing is required:
2. The cutting heat-affected zone is small, the plate deformation is small, and the cutting seam is narrow;
3. The incision has no mechanical stress and no shearing burr;
4. High machining accuracy, good repeatability, and no damage to the surface of the material;
5. Numerical control programming, can process any plan, can cut the whole board with large format, no need to open mold, economical and time-saving.
Applicable Industries
Mainly used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, food machinery, textile machinery, construction machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, Advertising, metal external processing, kitchenware processing and other manufacturing and processing industries.
Machine Parameters
| Cutting thickness | 0.21-2mm/0.21-3.5mm |
| Cutting diameter | 8-200mm |
| Cutting height | 500mm |
Technical Parameters
| Model | BT-CW1000C/1500C |
| Laser power | 1000W/1500W |
| Laser wave length | 1070nm±5nm |
| Laser model | Single model |
| Photoelectric conversion efficiency | 30% |
| Working model | Continuous |
| Power adjustable range | 5-95% |
| Power instabilty | ≤2% |
| Core diameter of Transmission optical fiber | 20um -50um |
| Smallest light spot | 0.1mm |
| Optical fiber length | 10m |
| cooling type | Water cooling |
| Cooling type |
C1000/C2000 C1000/C2000 double Temperature and double circulation |
| Cooling water temperature | 20-25℃ |
| Voltage | AC 220V±10% AC380±10%,50/60Hz |
| Working environment temperature | 10~35℃ |
| Working environment Humidity | ≤95% |
