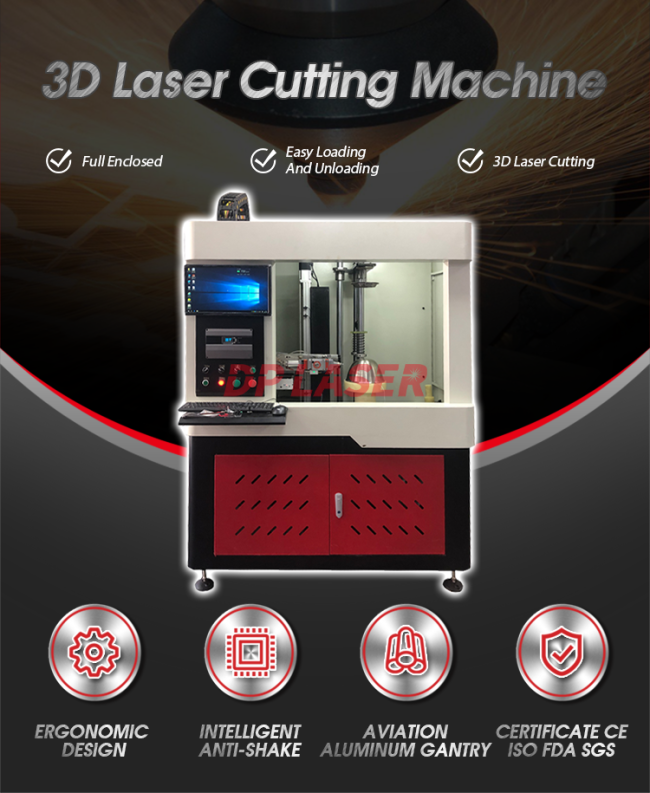

Contiunous 3d Laser Cutting Machine Metal Kettle Thermos Cup Bottle Cut Edge Optical 80m/min
Metal Kettle Thermos Cup Bottle Cut Edge Optical Fiber Contiunous 3D Laser Cutting And Flatting Machine
3D laser cutting uses the flexible and fast action performance of industrial robots. According to the size of the workpiece to be cut and processed by the user, you can choose to install the robot or flip the robot to teach programming or offline programming for different products and different trajectories. The six-axis loading fiber laser cutting head performs three-dimensional cutting of irregular workpieces; the fiber laser cutting head is equipped with a follow-up device and an optical path transmission device, and the fiber is used to transmit the laser to the cutting head, and then the focusing system is used for focusing. Sheet Metal has developed multiple sets of focusing systems to perform multi-directional cutting of various three-dimensional metal sheets to meet customer needs.
Features
1. The laser output power is stable and the processing format is large.
2. It can precisely cut metal materials of different thicknesses such as sheet metal and stainless steel.
3. Equipped with a five-inch LCD screen and an offline numerical control system, the operation is more convenient.
Applicable Industries
Widely used in aerospace, automobile and ship, machinery manufacturing, elevator manufacturing, advertising production, household appliance manufacturing, medical equipment, hardware, decoration, metal external processing services and other manufacturing industries.
Machine Parameters
| Cutting thickness | 0.21-2mm/0.21-3.5mm |
| Cutting diameter | 8-200mm |
| Cutting height | 500mm |
Technical Parameters
| Model | BT-CW1000C/1500C |
| Laser power | 1000W/1500W |
| Laser wave length | 1070nm±5nm |
| Laser model | Single model |
| Photoelectric conversion efficiency | 30% |
| Working model | Continuous |
| Power adjustable range | 5-95% |
| Power instabilty | ≤2% |
| Core diameter of Transmission optical fiber | 20um -50um |
| Smallest light spot | 0.1mm |
| Optical fiber length | 10m |
| cooling type | Water cooling |
| Cooling type |
C1000/C2000 C1000/C2000 double Temperature and double circulation |
| Cooling water temperature | 20-25℃ |
| Voltage | AC 220V±10% AC380±10%,50/60Hz |
| Working environment temperature | 10~35℃ |
| Working environment Humidity | ≤95% |
