3D Metal Pipe Industrial Laser Solutions Auto Feeding Round Tube Square Tube 150m/min
Metal Kettle Thermos Cup Bottle Cut Edge Optical Fiber Contiunous 3D Laser Cutting And Flatting Machine

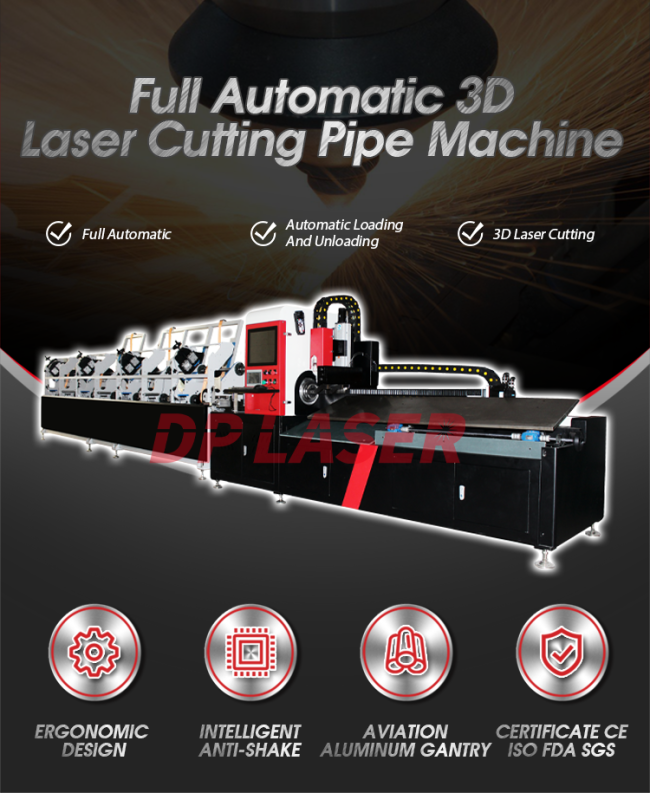

The 3D laser pipe cutting machine is mainly used for laser cutting of standard metal pipes (round pipes, rectangular pipes, elliptical pipes, etc.), profiles (engine steel, channel steel, angle steel, etc.) and some special-shaped pipes.
Features
1. High cutting precision, fast speed, contour precision can reach ±0.1mm.
2. The incision is smooth, without burrs, the slit is thin, and the material loss is small.
3. Non-contact processing, and the heat affected zone of laser cutting is very small, and there is almost no deformation.
4. High cutting efficiency, mass production can be realized.
5. Good flexibility, using professional CNC system and kit programming software, the product can be changed or replaced at any time.
Applicable Industries

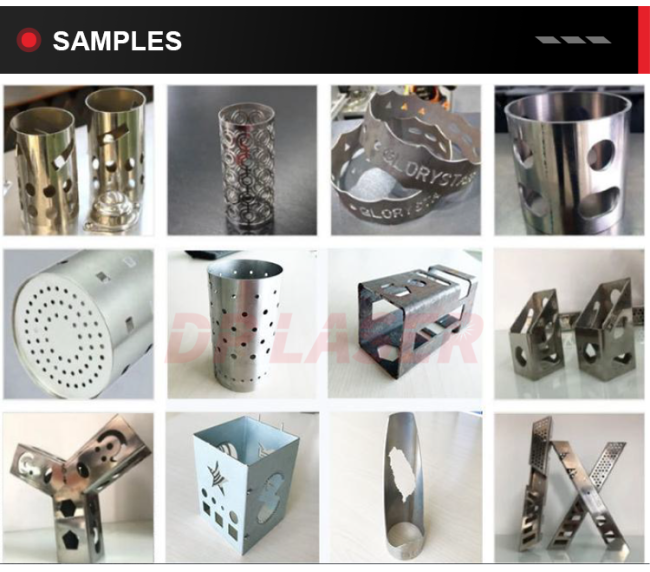

Widely used in sheet metal processing, kitchen utensils, lamps, automobiles, medical equipment, hardware, fitness equipment and other industries.
| Apply to | Auto feeding round pipeφ≤89mm,Square pipe≤63*63mm |
| Cutting accuracy | ±0.3mm,Tube bend≤2mm/m |
| Feeding length | 4000mm-6200mm |
|
Primary filler weight
|
According to the size of the pipe, the storage space of the trough is limited, and the maximum load1.5t |
| Laser power | 1000W/1500W/2000W/3000W |
| Laser wavelength | 1070nm±5nm |
| laser mode | single mode |
| Photoelectric conversion efficiency | 30% |
| Working way | continuous |
| Power adjustment range | 5-95% |
| Power instability | ≤2% |
| Transmission fiber core diameter | 25um-50um |
| Fiber length | 10m |
| Cooling method | Water cooling |
| Chiller model | C1000/C1500/C2000/C3000 Double temperature double circulation chiller |
| Cooling water temperature | 20-25℃ |
| Power supply | AC380±10%,50/60Hz |
| Working temperature | 10~35℃ |
| Working environment humidity | ≤95% |
| Total weight | 2T |
