DP LASER 1000W Industrial Laser Solutions Raycus Pan Satin Belt Trash Can Stainless Steel Belt

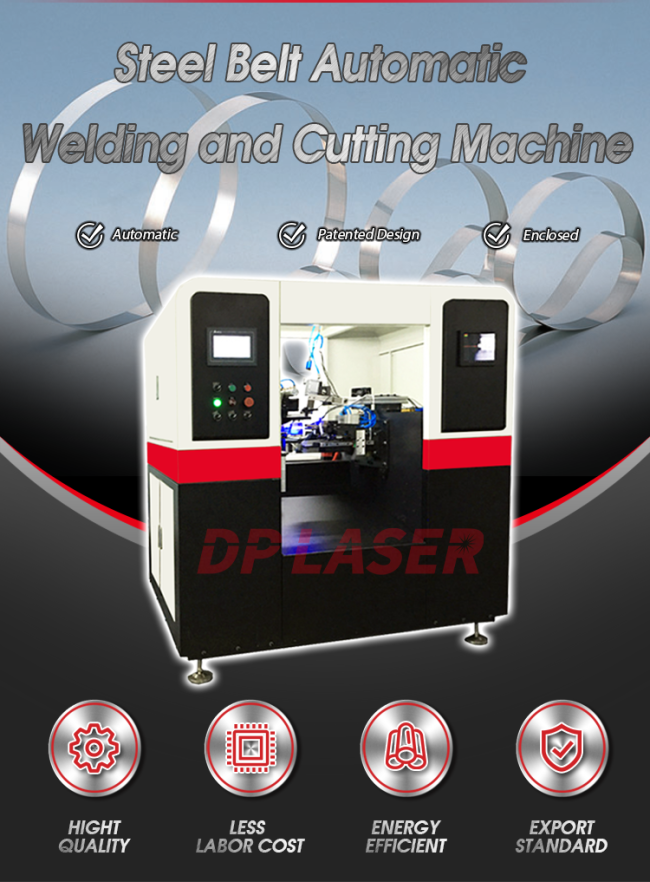

DP LASER 1000W Raycus Pan Satin Belt Trash Can Stainless Steel Belt Automatic Fiber Laser Cutting Welding Machine
Fiber laser welding machine is a kind of laser welding equipment that couples high-energy laser beam into optical fiber, after long-distance transmission, it is collimated into parallel light by collimating mirror, and then focused on the workpiece for welding. For the parts that are difficult to access to welding, flexible transmission non-contact welding is implemented, which has greater flexibility.
Features
1. The non-contact operation method can meet the requirements of cleanliness and environmental protection.
2. Using laser welding machine to process workpiece can improve work efficiency.
3. The finished workpiece has beautiful appearance, small welding seam, large welding depth and high welding quality.
Applicable Industries

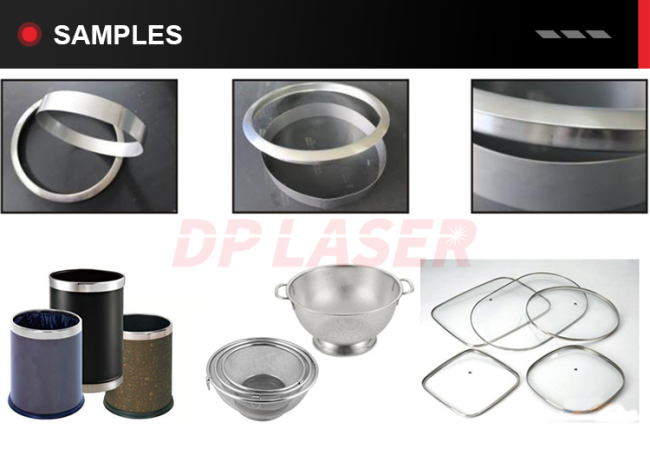

Mainly used for precision welding of optical communication devices, IT, medical, electronics, batteries, optical fiber coupling devices, picture tube electron guns, metal parts, mobile phone vibration motors, precision parts of watches and clocks, automotive steel sheets, etc.

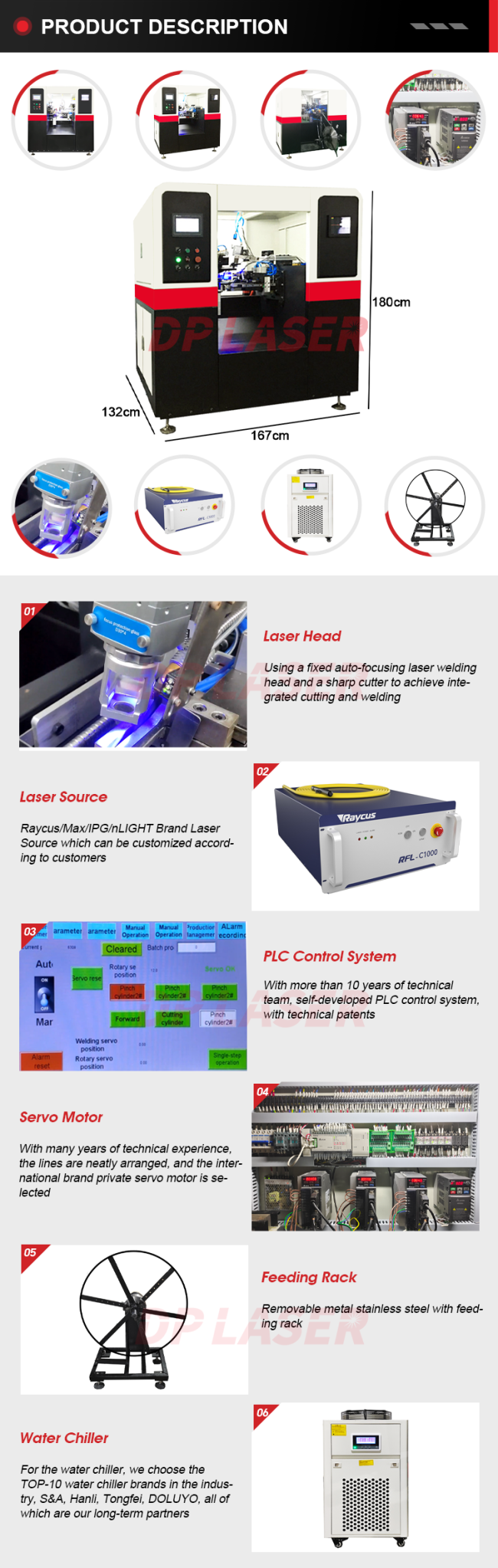

| Laser Power | 1000W |
| Laser Source | Raycus/Max/IPG/nLIGHT |
| Laser Head | OSPRI |
| Laser Wavelength | 1070nm |
| Maximum Thickness | 0.15-0.6mm |
| Maximum Width | 10-58mm |
| Maximum Diameter | Φ65mm-Φ600mm |
| Supported Materials | Stainless Steel |
| Fixture | Support Customization |
| Repeating Precision | ±0.01mm |
| Machine Size | 132*167*180CM |
| Machine Weight | About 1800KG |
| Voltage | 380V/3-Phase |
