Basic introduction

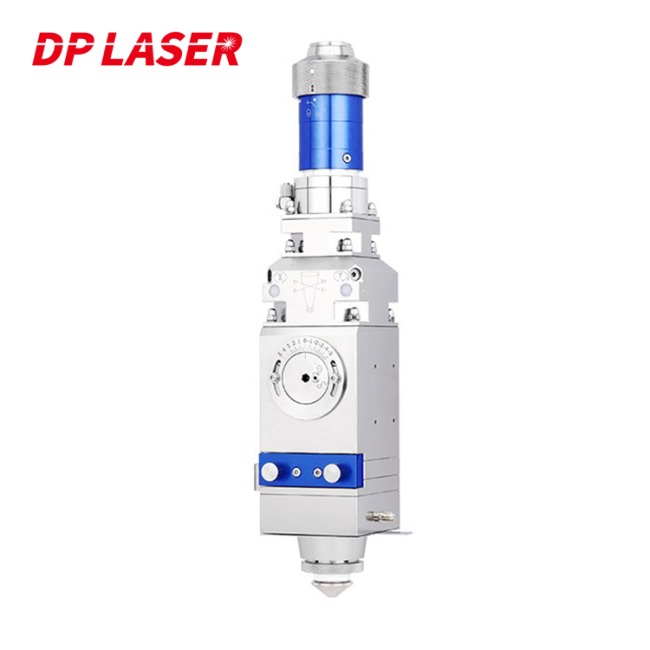

This cutting head has strong advantages in medium power large format light cutting applications. The internal structure of the laser head is completely sealed, which can prevent the optical part from being polluted by dust. The laser head adopts two-point centering adjustment, and the focusing adopts imported electric shock drive, which significantly improves the efficiency in perforation. The protective lens adopts a drawer structure, which is easy to replace. It can be equipped with various lasers with QBH connectors. With display fault alarm, collimation alarm, pressure alarm, lower protective mirror alarm function indicator light.

Feature

1.This cutting head has a strong advantage in the application of medium power large format fiber laser cutting.

2.The internal structure of the laser head is completely sealed to avoid dust contamination on the optical part.

3.This laser head adopts two-point alignment, and the focusing is adjusted by cam structure accurately and conveniently.

4.The protective window is installed in cartridge, and is convenient to replace.

5.Can be equipped with various kinds of laser source with QBH connector.
