Basic introduction

Laser cutting head is a new technology that has been applied to various industries, including metal cutting, glass cutting and engraving, etc.The components of the cutting head of the laser cutting machine are: nozzle, focusing lens and focus tracking system.

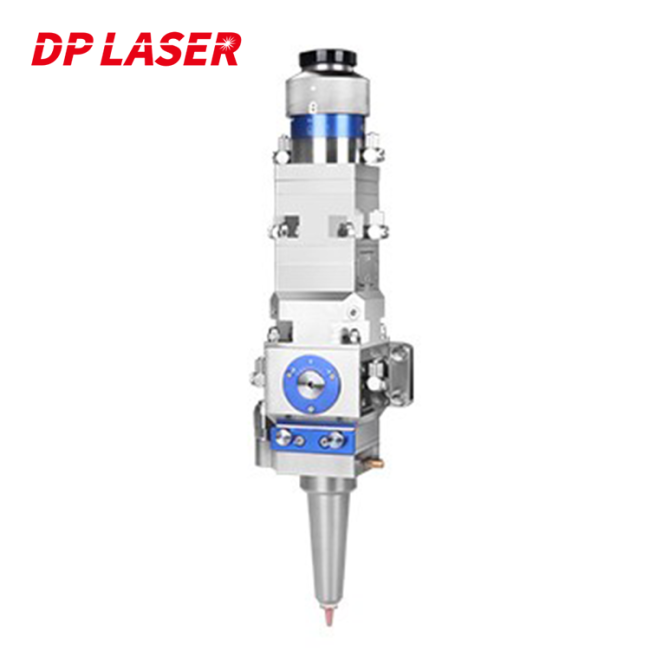

KC15A	NC30A	NC30B
NC30E	NC62A	SW20A

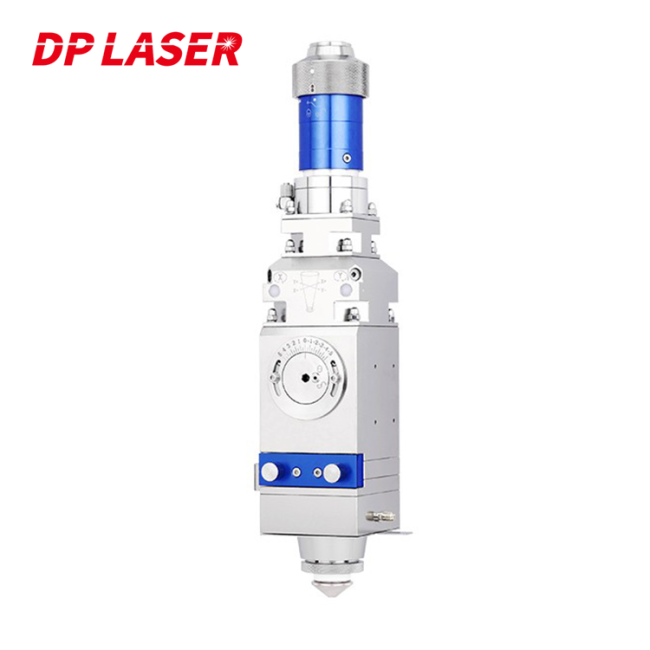

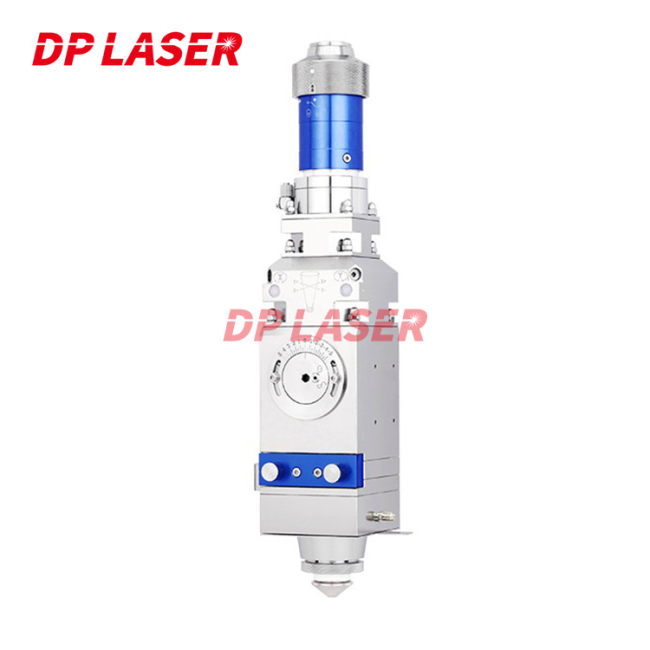

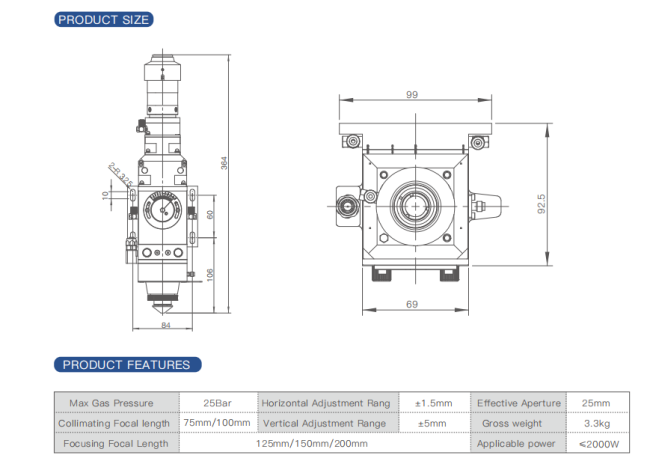

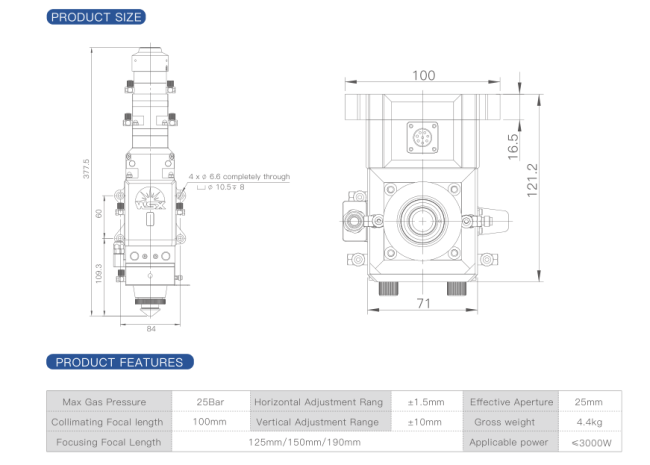

KC15A Fiber Laser Cutting Head

1.This cutting head has a strong advantage in the application of medium power large format fiber laser cutting.

2.The internal structure of the laser head is completely sealed to avoid dust contamination on the optical part.

3.This laser head adopts two-point alignment, and the focusing is adjusted by cam structure accurately and conveniently.

4.The protective window is installed in cartridge, and is convenient tto replace.

5.Can be equipped with various kinds of laser source with QBH connector.

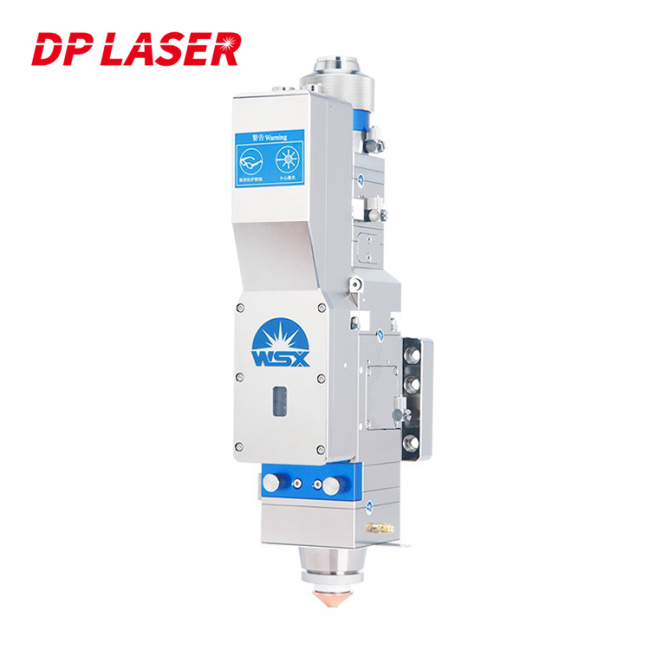

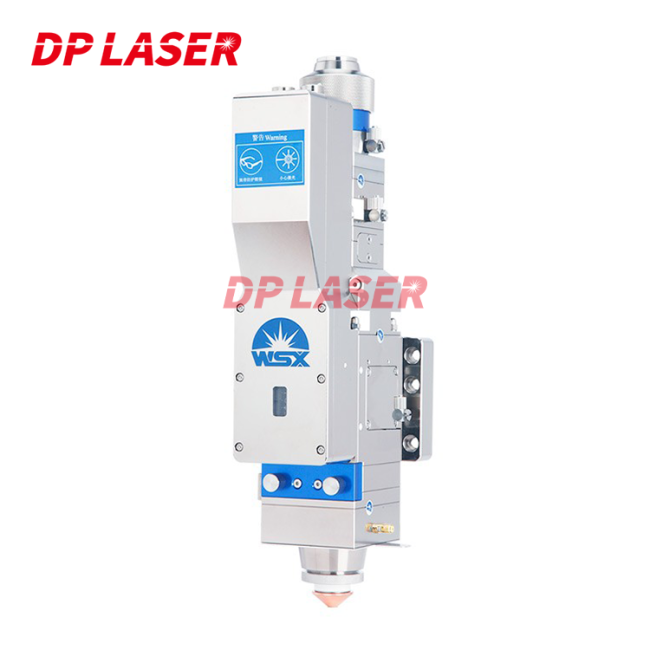

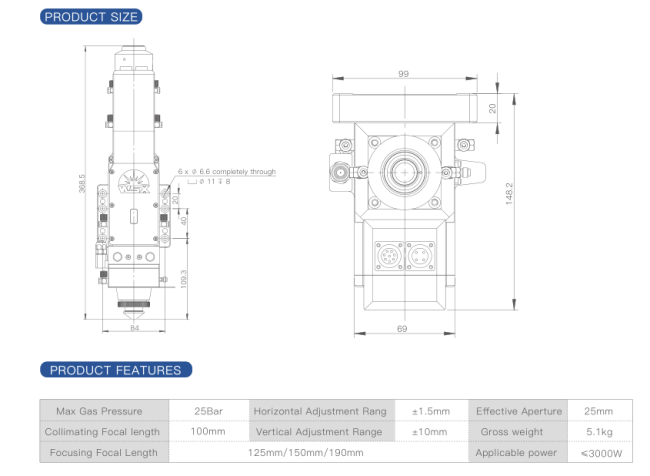

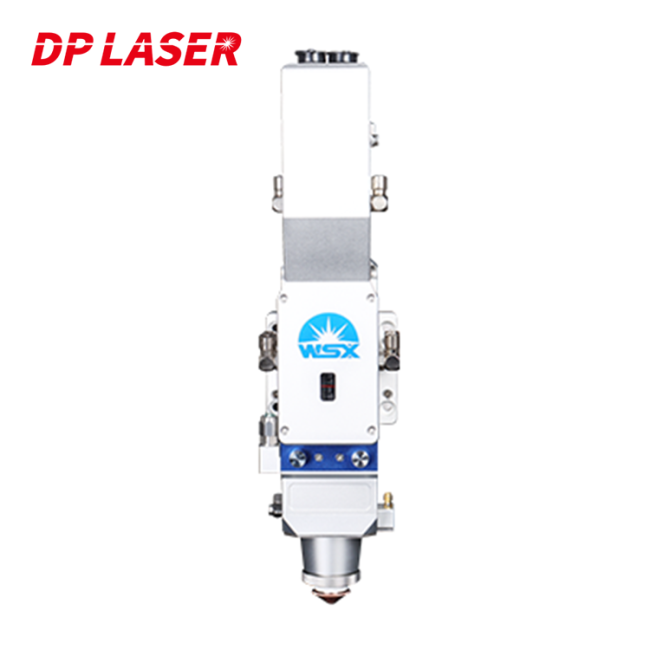

NC30B Automatic Focusing Fiber Laser Cutting Head

1.This kind laser head has a strong advantage on medium power large format fiber laser cutting application.

2.Completely sealed internal structure of laser head can avoid optical part polluted by dust.

3.Two point centering adjustment of laser head; the focus adjusting take imported motor driving and has great improvement in perforation.

4.Protective lens take more convenient replacement drawer installation way.

5.Can be equipped with various kind of QBH connectors laser machine.

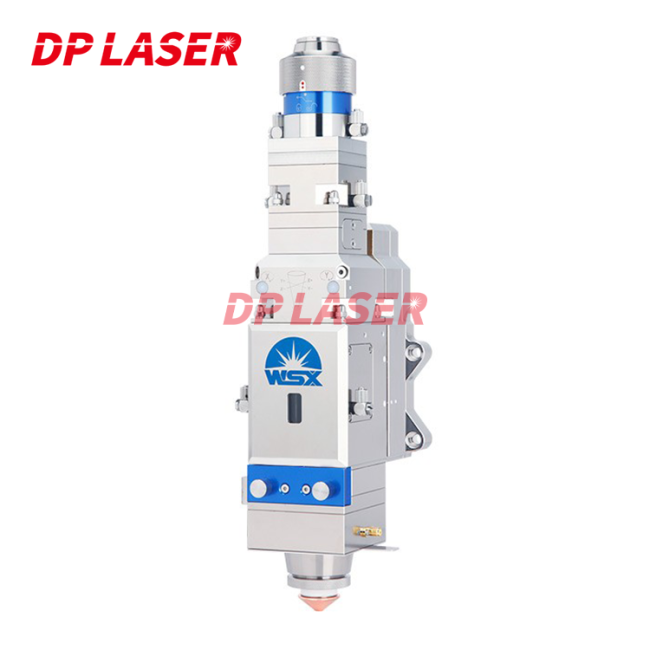

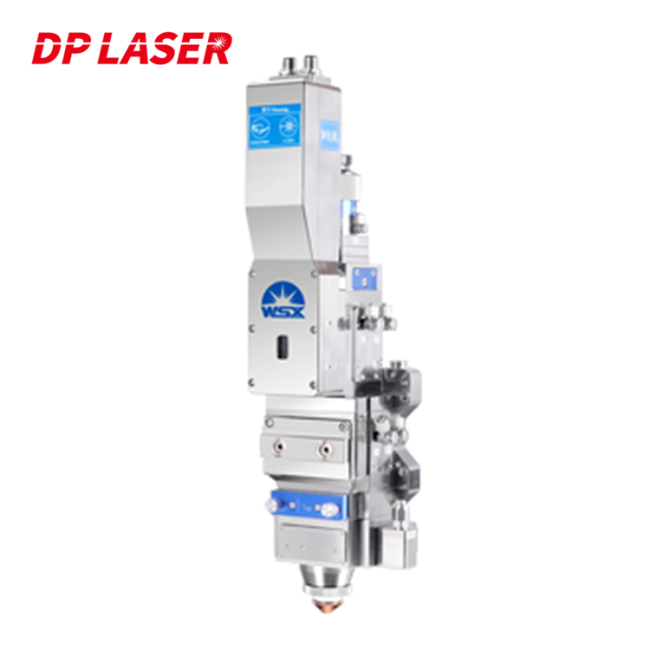

NC30E Automatic Focusing Fiber Laser Cutting Head

1.This kind laser head has a strong advantage on medium power large format fiber laser cutting application.

2.Completely sealed internal structure of laser head can avoid optical part polluted by dust.

3.Two point centering adjustment of laser head; the focus adjusting take imported motor driving and has great improvement in perforation.

4.Protective lens take more convenient replacement drawer installation way.

5.Can be equipped with various kind of QBH connectors laser machine.
