5W 7W 10W 18W 35W 532nm Green Laser Fiber Marking Machine Crystal Glass Wafer Engraving Cutting

Price Negotiable
Price: Please contact us
MOQ: 1 Set
Delivery Time: 7-15 Work Days
Brand: DP LASER
Product Description

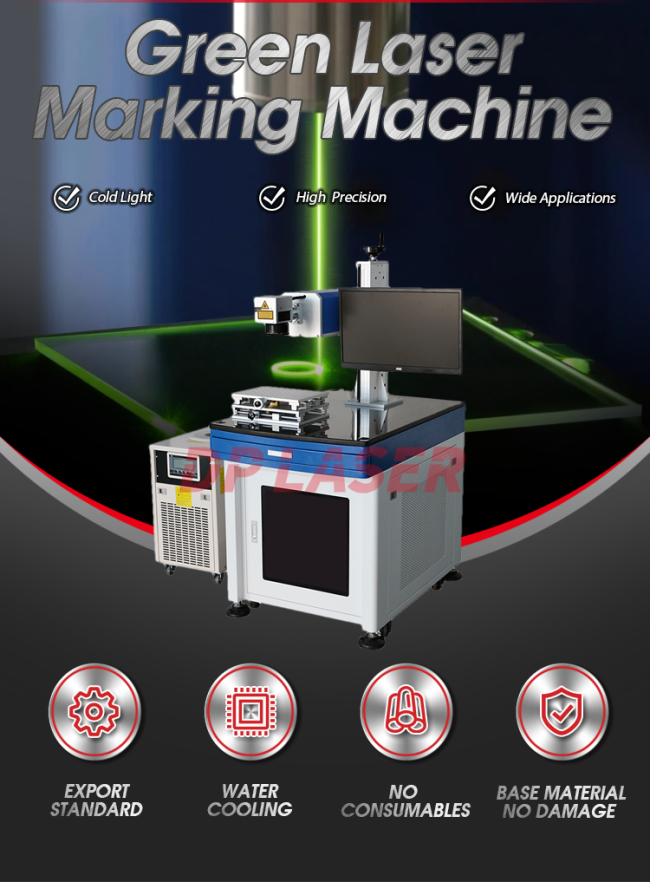

5W 7W 10W 18W 35W 532nm Crystal Glass Wafer Engraving Cutting Green Laser Marking Machine



Basic introduction

The green laser marking machine is developed using the most advanced laser pumping technology with a wavelength of 532nm in the world, and the whole machine has low power consumption and good protection. It has a wide range of uses: marking of various metals and non-metallic materials, and marking of optical device markings or scales, but also suitable for ceramic drilling, direct molding of high-temperature PCB boards, etc. Compared with similar products, it has quite high cost performance, and is more suitable for some occasions requiring finer and higher precision.



Features

Green laser marking machine has the characteristics of good beam quality, high electro-optical conversion speed, low power consumption, stable output laser energy, longer laser service life, maintenance-free, etc., and easy maintenance; with optical path preview and focus indication functions, the appearance is more Beautiful and easy to operate.



Applicable Industries

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

Laser Power 5W 10W 18W 35W Optional
Laser Source RFH JPT Advanced Qptowave Optional
Control Board BJJCZ
Control Software EZCAD
Galvo Head Sino-Galvo
F-theta Lens 70mm-400mm Optional
Laser Lifespan 20,000 Hours
Laser Wavelength 532nm
Marking Speed 0-8000mm/s
Power Consumption ≤800W
Cooling Mode Air Cooling/Water Cooling
Supported characters Any fonts downloaded on computer
Supported format DWG,DFX,BMP,JPG,PNG,TIF,PCX, TAG, GIF, PLT etc..
Supported Bar code CODE39, EAN, CODE128, Data Matrix, PDF417 etc..
Cabinet Size 950*650*1500mm
Machine Weight About 130KG
Voltage 110V/220V Optional
