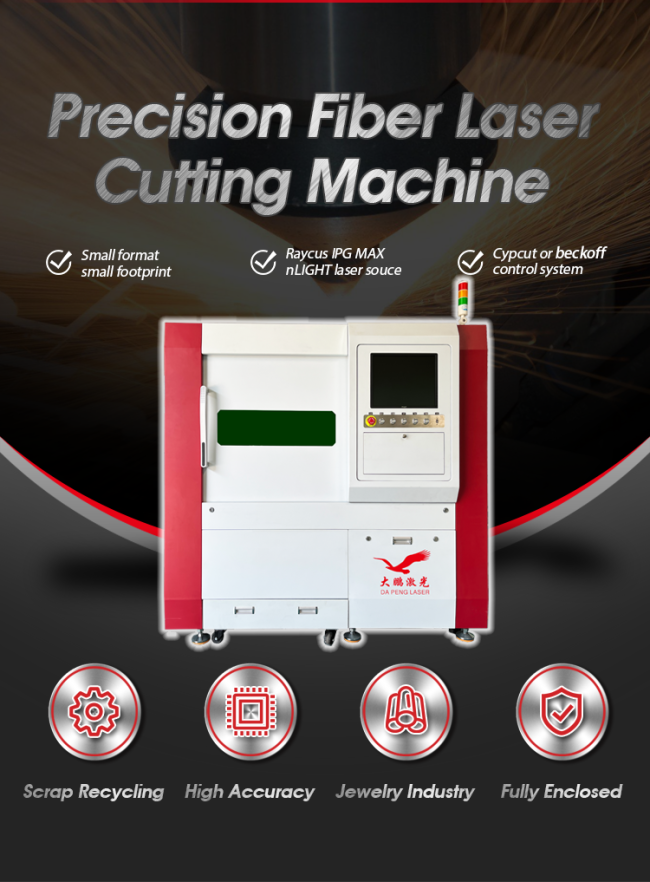

2000W High Precision CNC Mini Fiber Laser Cutting Machine For Jewelry Metal Cutting DPE-0606
DPE-0606 2000W High Precision Mini CNC Fiber Laser Cutting Machine For Jewelry Metal Cutting
Basic introduction
The precision laser cutting machine adopts a new integrated shock-proof frame design, which is compact and reliable, safe and practical, and can be operated and used with different lasers. The operating platform is made of optical marble, which is suitable for high-speed movement and has high stability. In addition, through the self-developed patented software, automatic control and real-time feedback in the processing process can be realized, with a large-format high-precision visual positioning system, automatic precision correction, and high cutting accuracy.
Features
1. Fully enclosed processing, safe and reliable.
2. Humanized control panel, easy to operate.
3. The beam is concentrated, the spot is delicate, and the penetration is strong.
4. The cutting edge is smooth, no need for secondary processing.
Application industry

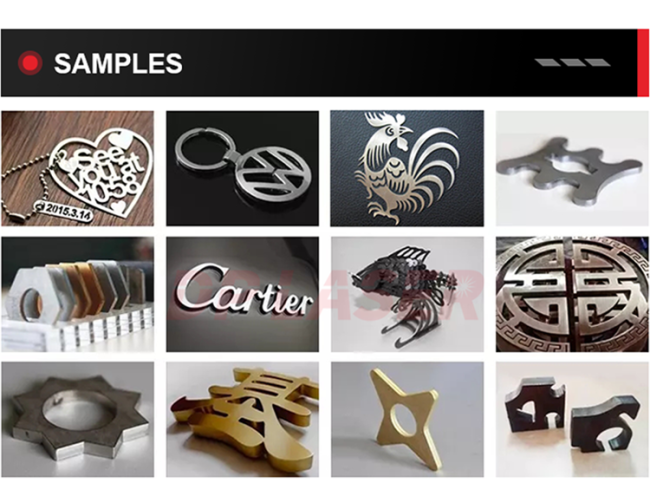

This machine is widely used in hardware, consumer electronics, sheet metal, jewelry metal, advertising decoration, machinery, glasses, instruments, kitchen utensils and other industries. A variety of metal materials such as gold and titanium are precisely cut and punched.
| Model | DPE-0606 |
| Working Area | 600*600mm |
| X/Y Axis Positioning Accuracy | ±0.01mm |
| X/Y Axis Repositioning Accuracy | ±0.01mm |
| Max. Moving Speed | 80m/min |
| Max.Acc Speec | 1.0G |
| Power Porection Grade | IP54 |
| Laser Power | 1000W-3000W |
| Power Demand | 380V/50Hz |
| Cooling Method | Water Cooling |
| Continuous Working Time | 24 Hours |
