Knotless Net Warp Knitting Machine Single Needle Bed With Swing Arm 260'' 380V
Price:
USD 26500 ≤1 set,USD 25500≤10 set
MOQ:
1 set
Delivery Time:
30 days
Brand:
ZYTT
Product Description

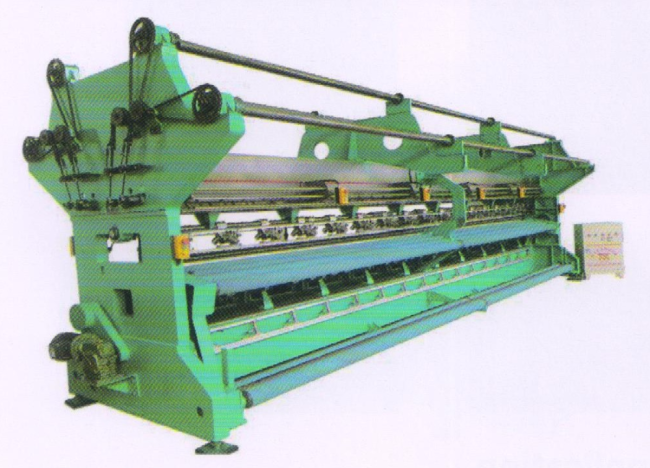

High Speed Textile Fishing Net Single Needle Bed Warp Knitting Machine
Product Application:

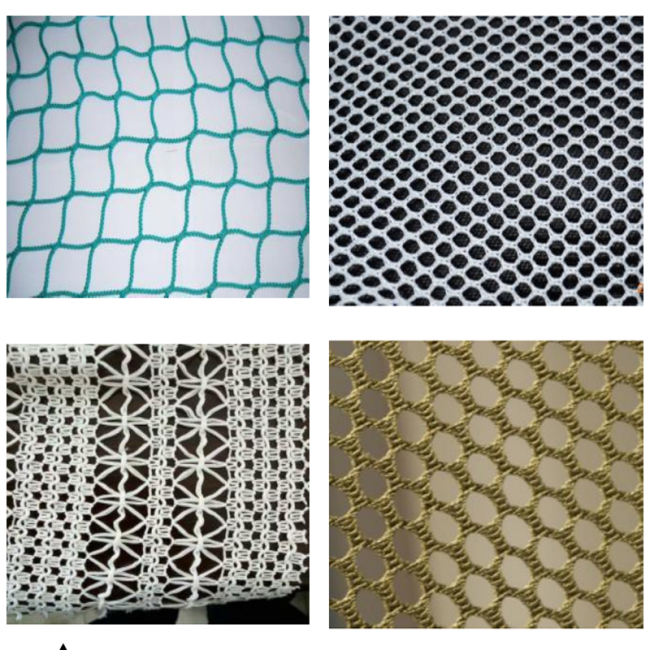

This machine mainly used to produce knotless net,waping net fabric,
chemical fiber single mesh, purse net
Features
1.Adopt open type cam with swing arm and connectiong bar system;
negative let-off or positive let-off.
2.Working needle: Latch needle
3.Gauge:E2 E3 E4 E9 E12 E18 E22 E24
2.Working needle: Latch needle
3.Gauge:E2 E3 E4 E9 E12 E18 E22 E24
4.Number of guide bars:2 3 4 5 6 8bars
5.Working widths:90” 170” 195” 220” 240” 260” 340
Technical Parameters
| Model | Working Width | Overview Dimension | Power | Weight | Designed Speed |
| ZY-291-90'' | 90 inches | 3800*2300*2600 | 4KW | 8000KG | 600 |
| ZY-291-170'' | 170 inches | 5600*2300*2600 | 4KW | 9500KG | 550 |
| ZY-291-195'' | 195 inches | 6500*2300*2600 | 4KW | 9800KG | 550 |
| ZY-291-220'' | 220 inches | 7600*2300*2600 | 5.5KW | 10000KG | 550 |
| ZY-291-240'' | 240 inches | 7900*2300*2600 | 5.5KW | 11000KG | 550 |
| ZY-291-260'' | 260 inches | 8300*2300*2600 | 5.5KW | 12000KG | 550 |
| ZY-291-340'' | 340 inches | 10800*2300*2600 | 5.5KW | 16000KG | 550 |
Customizable according to customer needs!!
Company Profile
Wuxi zhongyin textile technology company Ltd is located in the beautiful city-wuxi,
china high-tech industrial zone, very famous for textile machinery.
Our Company founded in 2012,
we have more than 10years export experience on textile machinery business.
We have presence in Asia,United States,and Europe .
Our competitive advantage lies in ourability to create distinguished solutions for
our customers.If you have any query/feedback/comments,
please feel free to reach out to us using the form below and
we'll respond as soon as we can.
Main Products: Warping Machine, Warp Knitting Machine, Textile Finishing Machine,
Main Products: Warping Machine, Warp Knitting Machine, Textile Finishing Machine,
Textile Machinery, Weaving Machine for Blanket.
Certificate
Exhibition
Packing and Delivery
FAQ
Q: Products Price and Discount.
A: We Support Customization. Pls Free to Tell Us Machiner Details You Wanted. You Will Get Our Reply In 24 Hours.
Q: Delivery Time.
A: Normally 30 Days After Deposit. If The Machine You Need Is In Stock, We Can Ship It Shortly.
Q: Machine Warranty.
A: One Year. For Any Spare Part, The Customer Can Purchase from Us for Life.
Q: Logistics Cost.
A: The Freight Depends on Weight, Packing Size, And Your Country Or Region, etc.
Q: After Sales Service.
A: Online Service and We Offer Factory Trainted Servicemen for Machine Start Upoperator /maintenance Training and Repair Service.
Q: Choose Mechanical Equipment.
A: Our Professional Team Will Give You The Suggestion as You Tell Us What Kind of Prodct You Need To Do And The Required Specification.
More Question
Please Feel Free to Contact Us
Luya‘ WhatsApp via +18605101493 or Email:sales@wxzhongyin.com
