China Polyester Polyamide Mother Yarn Warping Machine 750 M Min for sale

Polyester Polyamide Mother Yarn Warping Machine 750 M Min

Price Negotiable

Price: $25,000.00/sets 1-1 sets

MOQ: 1 set

Delivery Time: 30 days

Brand: ZYTT

Product Description

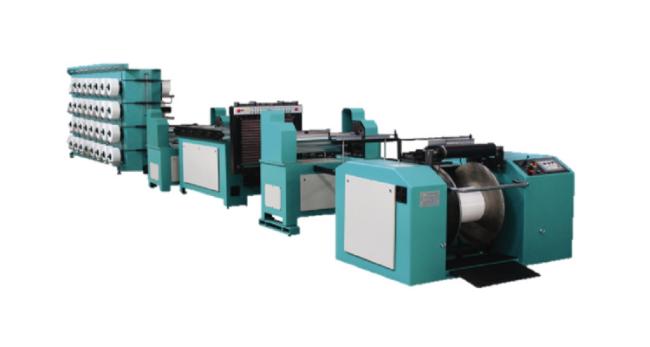

ZYTT-358 Mother Yarn Warping Machine

Product Introduction
358 Mother yarn warping machine is suitable yarn such as polyester polyamide etc. The mother yarn is made of a number of monofilament The advantages of this machine can save material cost, workroom space e and improve production efficiency.
This machine is mainly composed by creel, yarn guider back drawing rollers, tension roller, split yarn collection board, front drawing roller and warper head.
Each strand of mother yarn is tensioned by a torque motor to get an initial tension, the back drawing rollers draws the mother yarn from the creel to the yarn collection board through several tension rollers. The yarn is split from the collection board; the front drawing rollers draw the monofilament to the beam.

Machine Specification & Advantages

Warper beam size	21" x Ф30" (inch ),21"x Ф21"(inch)
Warper capacity	at customer's opinion.
Warp liner speed	50-750(m/min).
Leveling roller	two sets of servo (or inverter) control with three-roller positively.
Main motor	7.5KW AC frequency conversion control
Control mode	computer real-time control, touch screen and man-computer interface.

Product Features
1. Advanced model , intelligently distinguish human-computer interface, all date is saved automatically.
2. Speed tracking servo control and automatic control detection mechanism.
3. Computer real-time testing, intelligently control tension.
4. Load and unload beams pneumatically driving, go up and down straightly, move stable and fix accurately.
5. Main shaft is driven pneumatically so braking is fast and stable
6. Warping Tension is same similar, wave is small and the beam is smooth.
