Product Application

This warping machine is our new developed product, the diameter of the beam can be monitored and the tension can be controled during warping by micro computer control system which can make sure the same diameter of the beam group and the length. it is suitable for warping cotton yarn, viscose, blending yarn, polymide and polyster filament yarn, low elastic polyster fiber, viscose, and short fiber yarn.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

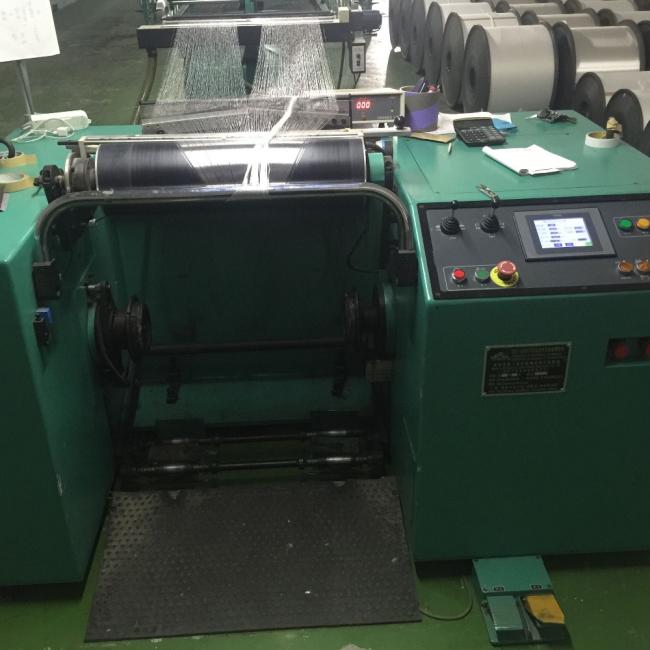

Machine Parts

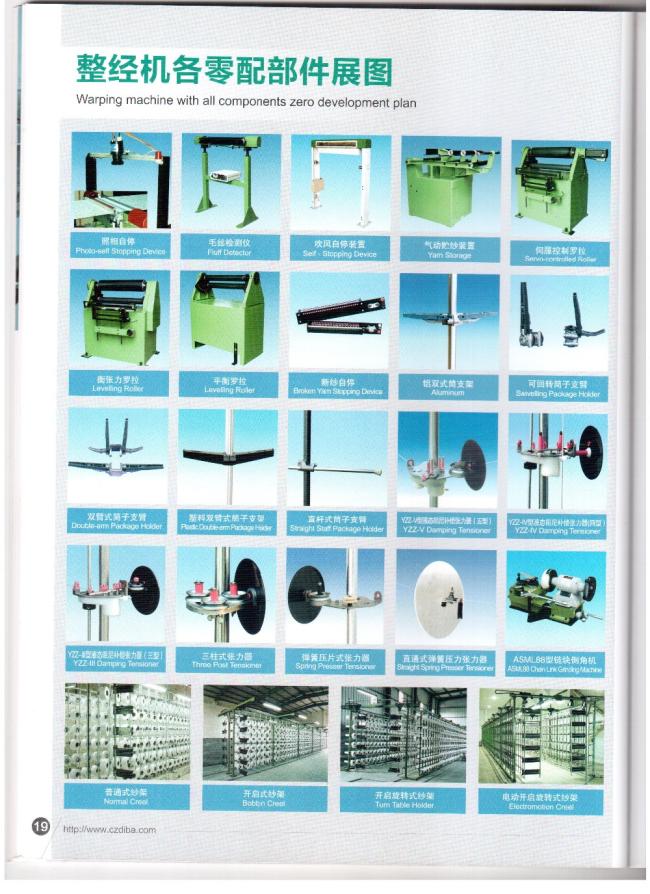

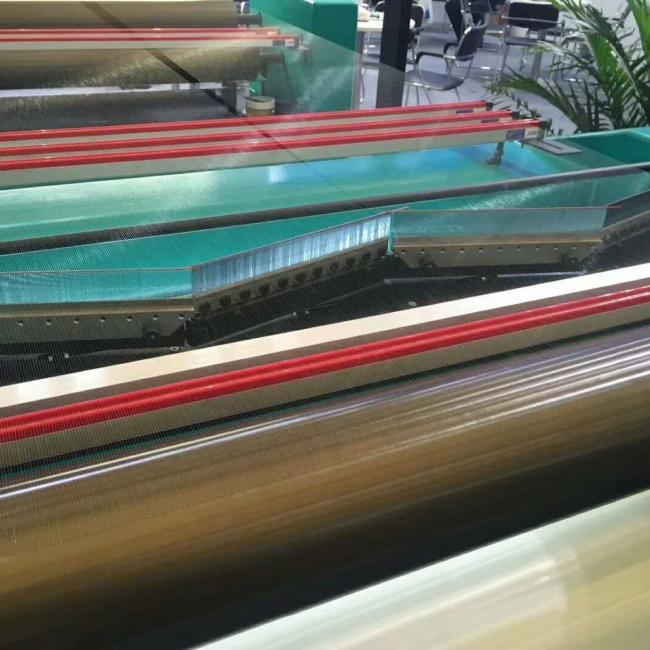

Name: Warping part

Brand: diba

Original: China

Domestic famous brand.good quality.

Main Features

1. Novel type, simple operation, intelligent identification,auto-reservation of data.

2.Electric gear,auto-controlled speed track and auto-controlled inspectiong machine and power cutting protection system.

3.according to the mother beam,the sub-beam with same perimeter are to be made.

4. The diameter of the beam can be monitored and the tension is stable, which make sure the same diameter of the beams group and the length.

5.The load and unload of the beam is controlled pneumatically,up and down in line, the motion is stable and positiion is precise. the break of main shaft adopts pneumatic brakes

6. the machine can set the beams, i.i. according to the mother beam,the sub-beams with same perimeter and rotations can be made.

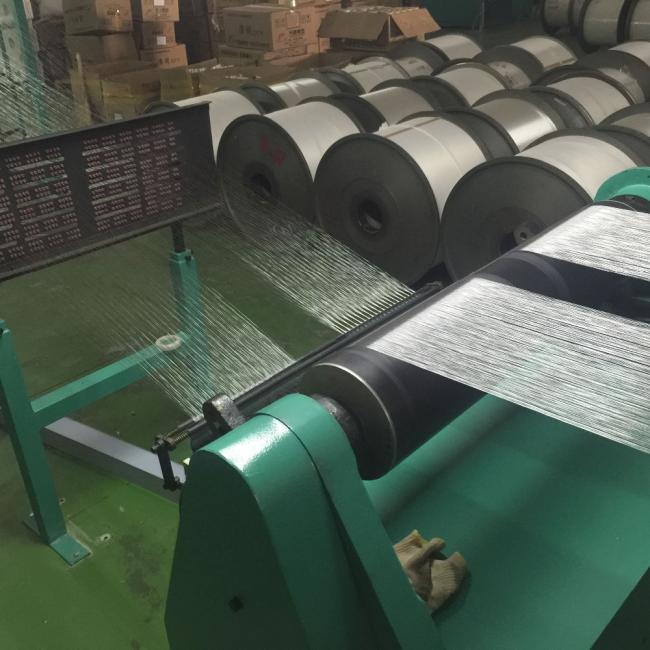

Machine Parts

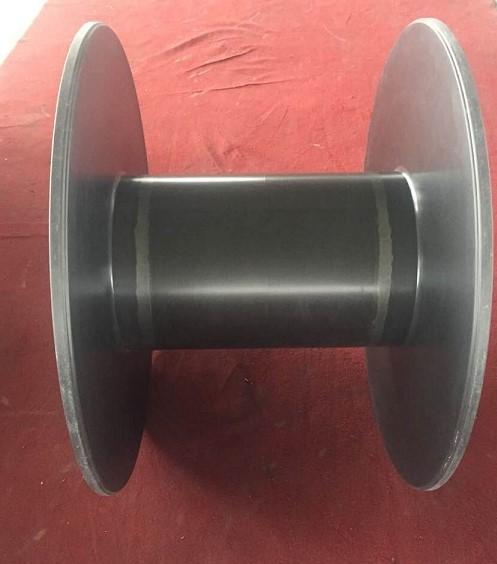

Name: beam
Brand: ZYTT
Original: China
Domestic famous beam, 5years life quality.

Main Features

1. raw material:aluminum

2. size:21*21" 21*30",21*40"

3. weight: 62kg, 72kg, 75kg 80kg,85kg 88kg
