High Strength Wear Resistant Steel Plate NM360 / NM400 / NM450 / NM500
Wear Resistant Plate Description:
Wear Resistant Steel Plate is designed for a variety of applications, including ship plate, boiler plate, container plate, and flange plate. It is specially coated to provide extra surface protection to ensure its long service life and durability, making it ideal for use in harsh environments where it may be exposed to abrasives, chemicals, or extreme weather conditions.
Abrasion Resistant Steel Plate is perfect for industries that require a high degree of protection and durability, such as mining, construction, agriculture, and transportation. It can withstand the abuse of heavy machinery, harsh weather conditions, and abrasive materials, making it the ideal choice for those who want to ensure their equipment lasts for years to come.
Wear resistant steel is a type of steel that is specifically designed to have higher resistance to abrasive wear. Some commonly used grades of wear resistant steel plate include:
- NM360
- NM400/AR400
- NM450/AR450
- NM500/AR500
These grades is different in terms of their composition, hardness, and resistance to wear, making them suitable for various applications, such as construction, mining, and manufacturing.
Abrasion Resistant Steel Chemical Composition
|
Grade |
C |
Si |
Mn |
P |
S |
Cr |
Mo |
Ni |
B |
CEV |
|---|---|---|---|---|---|---|---|---|---|---|
|
NM360 |
≤0.17 |
≤0.50 |
≤1.5 |
≤0.025 |
≤0.015 |
≤0.70 |
≤0.40 |
≤0.50 |
≤0.005 |
|
|
NM400 |
≤0.24 |
≤0.50 |
≤1.6 |
≤0.025 |
≤0.015 |
0.4~0.8 |
0.2~0.5 |
0.2~0.5 |
≤0.005 |
|
|
NM450 |
≤0.26 |
≤0.70 |
≤1.60 |
≤0.025 |
≤0.015 |
≤1.50 |
≤0.05 |
≤1.0 |
≤0.004 |
|
|
NM500 |
≤0.38 |
≤0.70 |
≤1.70 |
≤0.020 |
≤0.010 |
≤1.20 |
≤0.65 |
≤1.0 |
Bt: 0.005-0.06 |
0.65 |
Wear Resistant Steel Mechanical Property
|
Grade |
Thickness |
Tensile Test, MPa |
Hardness |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
mm |
YS Rel MPa |
TS Rm MPa |
Elongation % |
|||||||
|
NM360 |
10-50 |
≥620 |
725-900 |
≥16 |
320-400 |
|||||
|
NM400 |
10-50 |
≥620 |
725-900 |
≥16 |
380-460 |
|||||
|
NM450 |
10-50 |
1250-1370 |
1330-1600 |
≥20 |
410-490 |
|||||
|
NM500 |
10-50 |
--- |
---- |
≥24 |
480-525 |
|||||
Wear Steel Plate Parameters:
|
Products Name |
abrasion resistan wear-steel plate |
||
|
Grade |
nm600,xar400,xar500,xar450,ar450,NM360,Mn13,etc |
||
|
Thickness |
10~60mm |
||
|
Width |
900~2050mm |
||
|
Length |
Customized |
||
|
Delivery Condition |
the material will base on actual weight |
||
|
Package |
Mill Standard Package |
||
|
Delivery Time |
5-25 working days after receiving deposit,dependeing on the quantity |

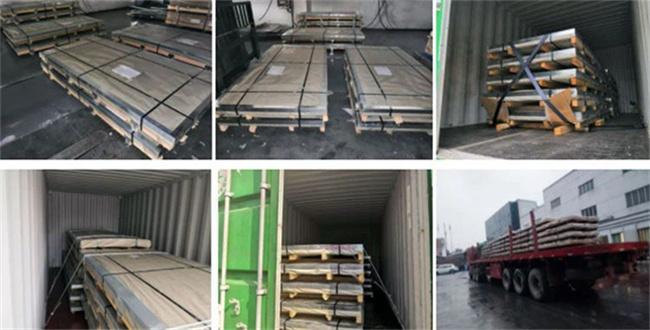

AR Steel Plate Packing
According to the properties and requirements of customers , Steel plate can hot-rolled, controlled rolling, normalizing, annealing, tempering, normalizing add tempering, modified such status delivery.
Packing Details:waterproof paper+plastic film+iron packing+bundling, or as per customers request.
Standard Export Seaworthy Package.Suit for all kinds of transport,or as required.
