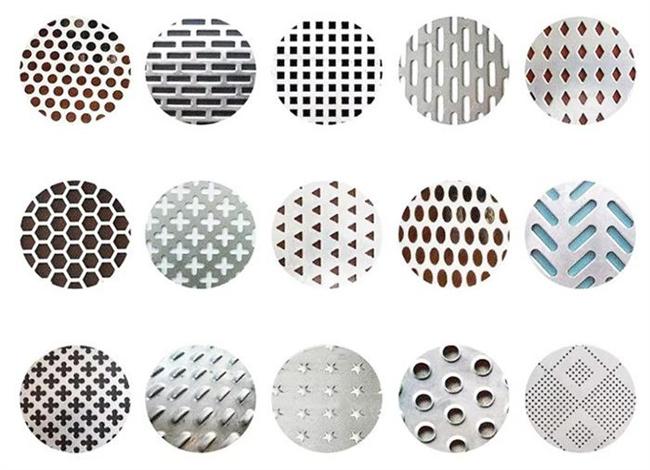

304 Stainless Plate Perforated Stainless Steel Sheet Metal
Perforated Plate Stainless Steel Description
Perforated Stainless Steel Sheet is a metal mesh material with a certain size and spacing formed by punching holes on the stainless steel plate by a punching machine, with different thicknesses and apertures.The perforated plate is flat, smooth, beautiful, durable, acid and alkali resistant, corrosion resistant, easy to clean, and has a long service life.
Stainless steel perforated sheet can be customized with different hole diameters, hole types and spacing to meet various specific application requirements,also available in different specifications,inducing in 304/304L and 316/316L,also available in grades 201,309S,310S,2205,2207,etc.
304 stainless steel has good corrosion resistance and toughness and is widely used in general environments; 316 stainless steel contains molybdenum elements, which are more superior in acid and alkali resistance, high temperature resistance and pitting resistance, and is suitable for marine and chemical environments.
 |
 |
 |
 |
Stainless Steel Plate Parameters
|
Product Name |
Stainless Steel Plate Sheet |
|
Thickness |
0.2~200mm |
|
Standard |
ASTM,JIS,EN,DIN,GB,etc |
|
Material |
310S,310,309,309S,316,316L,316Ti,317,317L,321,321H,347,347H,304,304L,302, 301,201,202,403,405,409,409L,410,410S,420,430,631,904L,Duplex,etc |
|
Surface |
2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sand blast,Brush,etching,etc |
|
Width |
1000mm,1219mm,1500mm,1800mm,2000mm,2500mm,3000mm,3500mm,etc |
|
Length |
2000mm,2440mm,3000mm,5800mm,6000mm,etc |
|
Package |
Standard export package,suit for all kinds of transport,or as required. |
SS Plate Processing Service
We offer value-added services including polishing, annealing, heat treatment, and welding for stainless steel sheets.
Process Service:Bending,Welding,Decoiling,Punching,Cutting,Moulding,or as requirement
SS Steel Plate Surface Finish
Details:2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sand blast,brush.
Multiple specifications are available.
Product Photo
Stainless Steel Plate Packing
| Packing Details | Standard Seaworthy Package or according to customer's requirements |
| Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
SS Steel Plate Material Testing
- Mechanical Testing Such as Tensile of Area
- Hardness Test
- Chemical Analysis – Spectro Analysis
- Positive Material Identification – PMI Testing
- Hardness Test
- Micro and MacroTest
- Pitting Resistance Test
- Flaring Test
- Intergranular Corrosion (IGC) Test
