YASKAWA MPL500 II Used Industrial Robot Arm For Pick And Place 500kg Payload
used Industrial robot arm YASKAWA MPL500 II for pick and place robots
Main Specifications:
Model:MPL500 II
Maximum reach:3159mm
Maximum payload:500kg
Pose repeatability:± 0.5mm
Number of axes:4
Weight:2300kg
KEY BENEFITS
- Compact, flexible and powerful
- High acceleration and speed: Up to 1200 cycles/h palletizing capa, suitable for box palletising
- High Payload: 500 kg
- Large motion range: 2624 mm square reach (on pallet 1300 x 1300 mm), 2363 mm stack height(on pallet 1600 x 1600 mm)
- Maximum reliability, empty tube for internally routed airlines and cables
- Enhanced Safety Functions for DX200 Functional Safety Controller (FSU)
- Protection class IP54/67
More products:
KUKA robot
1: KR 6 R1820 6KG 6axis welding robot
2: KR 6 R700 sixx 6 axis payload 6kg multifunctional industrial robot
3: KR 10 R1420 6 aixs 10kg welding robot
4: KR 210 R2700 EXTRA 210KG payload multifunctional industrial robot
ABB robot
1: IRB 1200/7/0.7 6 axis 7kg payload multifunctional industrial robot
2: IRB 1520ID 6 axis 5kg payload for welding
3: IRB 6700/150/3.2 150 kg payload for handing,cutting and palletizing
Collaborative robot
1: Collaborative robot of Chinese industrial robot arm 6 axis 6kg paylad
2: Collaborative robot of chinese industrial robot arm 7 axis 5kg payload

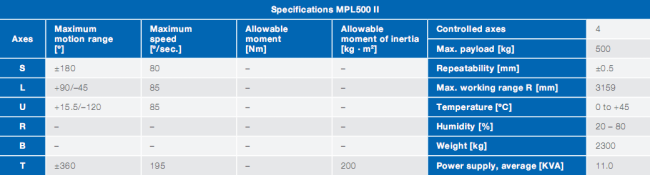

| Product Name | Industrial robot arm YASKAWA MPL500 II for pick and place robots |
| Model | MPL500 II |
| Application | Handling & General Application |
| Maximum reach | 3159mm |
| Maximum payload | 500kg |
| Pose repeatability (ISO 9283) | ± 0.5mm |
| Number of axes | 4 |
| Mounting position | Floor |
| Weight | 2300kg |
| Protection rating | IP67 |
| Controller | DX200 |
| Motion range | |
| S | 180° to -180° |
| L | 90° to -45° |
| U | 15.5° tp -120° |
| R | |
| B | |
| T | 360° to -360° |

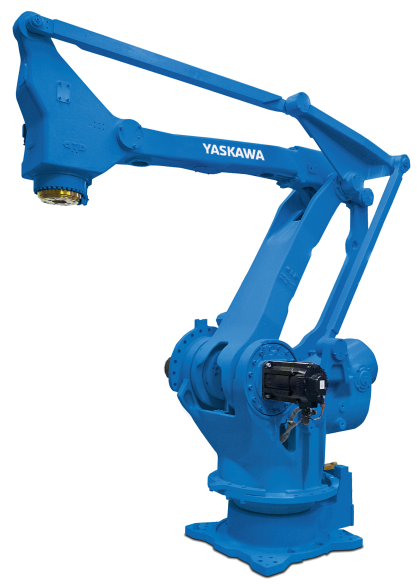

MPL500 II Introduction:
The versatile and powerful 4-axis MOTOMAN MPL500 II robot provides high performance in box palletising, case palletising and many further logistical tasks for end-of-line or distribution center automation.
Its extensive vertical reach of 3024 mm combined with 3159 mm horizontal reach enables high palletising loads. The empty tube for internally routed airlines and cables from base to U-axis maximize system reliability.
The MPL500 II is driven by the high-perfomance DX200 controller which is available with the optional Category 3 Functional Safety Unit (FSU), providing a variety of new safety functions.
KEY BENEFITS
• Compact, flexible and powerful
• High acceleration and speed: Up to 1200 cycles/h palletizing capa, suitable for box palletising
• High Payload: 500 kg

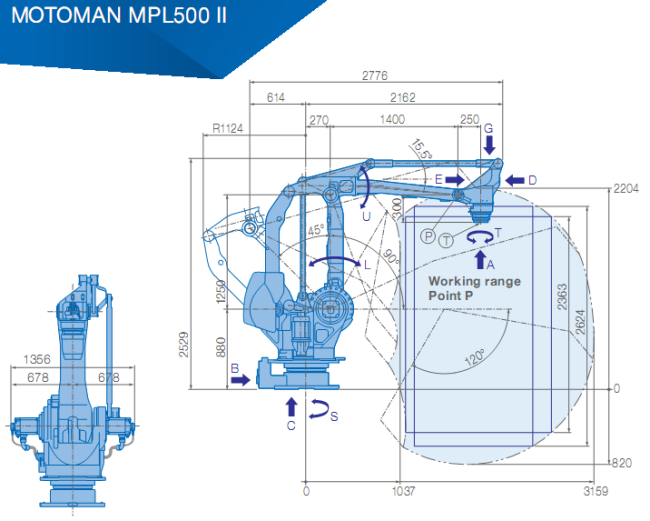

• Large motion range:
– 2624 mm square reach (on pallet 1300 x 1300 mm)
– 2363 mm stack height (on pallet 1600 x 1600 mm)
• Maximum reliability, empty tube for internally routed airlines and cables
• Enhanced Safety Functions for DX200 Functional Safety Controller (FSU)
• Protection class IP54/67
Applications:
Handling & General Application
