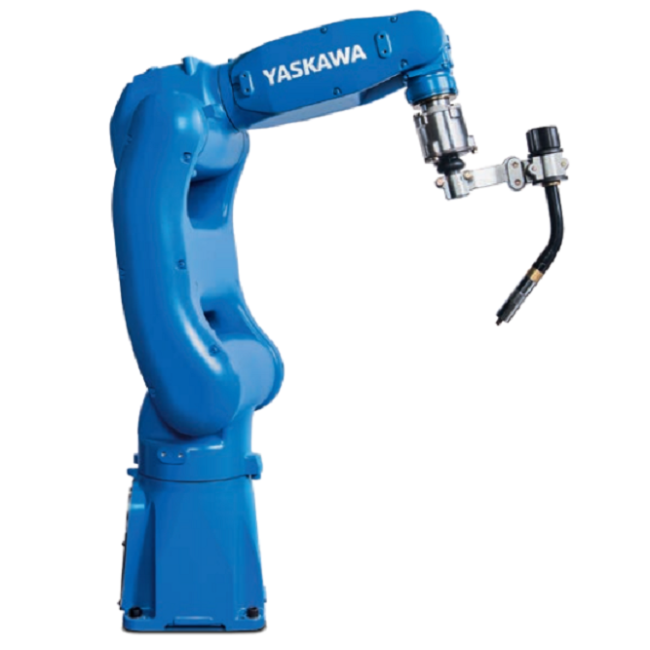

YASKAWA AR700 Second Hand Robot For Arc Welders 8kg Payload
Industrial robot arm YASKAWA AR700 for arc welders 8kg Payload 727mm arm welding robot
The compact MOTOMAN AR700 arc welding robot provides high path accuracy and great stability.
With a payload of up to 8 kg and a working range of 727 mm this robot enables accurate arc welding of small workpieces with high-quality results.
Supporting the full range of the well known MOTOMAN welding functionality, AR700 robots offer a good alternative to our collaborative welding robots when batch sizes are larger or short cycle times are required.
The compact AR700 arc welding robot provides high path accuracy and great stability.
With a payload of up to 8 kg and a working range of 727 mm this robot enables accurate welding of small workpieces with high-quality results.
Main Specifications:
Model:AR700
Maximum reach:727mm
Maximum payload:8kg
Pose repeatability:± 0.02mm
Number of axes:6
Weight:32kg
Key Benefits:
1. Streamlined arm design is easy to maintainand easy to program
2. Highest payload, widest work envelopeand fastest axis speeds in class
3. Increased reach and wrist inertia improvethroughput and quality
4. Single robot -to-controller cableconnection enables fast setup
5. Proven torch cable reliability; backedby industry's first two-yeartorch cable warranty
Features:
1. Slim, fast, six-axis AR70O weldingrobot achieves unrivaled weldingperformance and productivity.
2. Optimized acceleration/deceleration control for all robotpositions for faster cycle times.
3. 8 kg payload supports a wide variety of sensors and torches.
4. Slim profile design allows closeproximity placement of robots forhigh-density workcells.
5. High allowable moment and inertiaratings provide substantial wrist rigidity and consistent weld quality.
6. Slim wrist and base axis radius forreduced turning interference andefficient use of space.
7. Over arm torch setup is ideal for welding small parts with complicatedangles and in tight places.
8. Internal airlines and I/O harness enhance cable reliability foraccessories.
9. Single power and control cable reduces wiring time and increaseswork efficiency.
10. New robot harness design for improved diagnostics andmaintenance.
11. Home position data can be saved without battery connection for easymaintenance.
12. Optional location (bottom) for manipulator cable connectionreduces interference with walls.
13. Easy-to-clean surface for use in harsh environments.
14. Variety of advanced, exclusiveprogramming functions maximizeweld quality and speed.
15· Floor-mounted model is standard.Wall- or ceiling-mounted versionsare available.
16.Compact YRC controller utilizes thelightweight standard teach pendantwith intuitive programming.

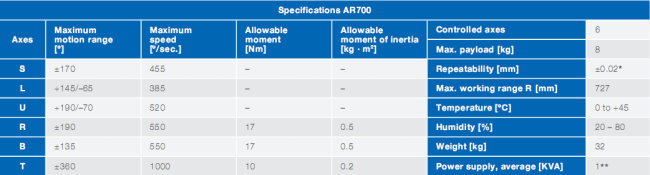

| Product Name | Industrial robot arm YASKAWA AR700 for arc welders 8kg Payload 727mm arm welding robot |
| Model | AR700 |
| Application | Arc Welding tasks |
| Maximum reach | 727mm |
| Maximum payload | 8kg |
| Pose repeatability (ISO 9283) | ± 0.02mm |
| Number of axes | 6 |
| Mounting position | Floor, Wall, Ceiling |
| Weight | 32 kg |
| Protection rating | IP67 |
| Controller | YRC1000 controller/ YRC1000micro Controller |

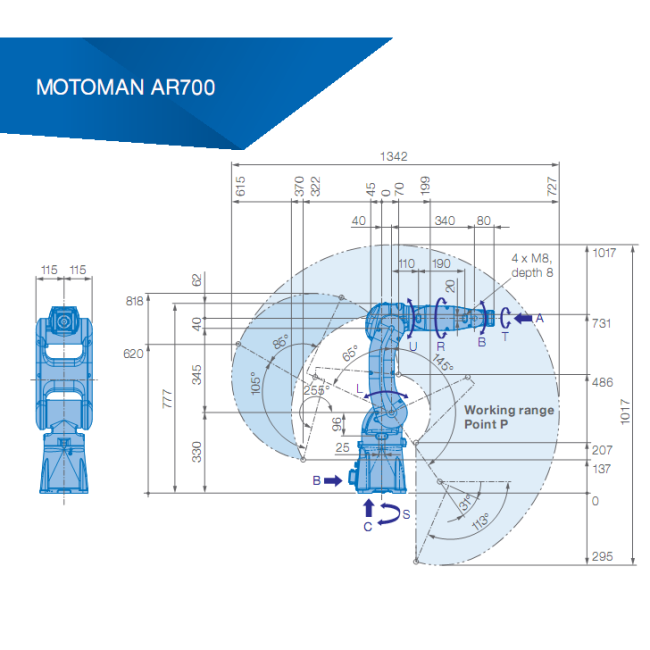

| Motion range | |
| S | 170° to -170° |
| L | 145° to -65° |
| U | 190° tp -70° |
| R | 190° to -190° |
| B | 135° to -135° |
| T | 360° to -360° |
AR700 Introduction:
The MOTOMAN AR700 is a compact high-speed 6-axis robot which provides accurate performance to achieve optimal results in extremely difficult conditions and especially for the high demands of arc welding applications.
With a payload of up to 8 kg and a working range of 700 mm, this robot enables welding of a broad variety of small workpieces with high quality results. The applicable inertia and axis speeds have been significantly raised, which leads to a "best in class”performance, speed and acceleration.
The slim, straight and symmetrical arm design minimizes interference with peripherals even in small workspaces. The MOTOMAN AR700 is easy to clean and well protected (by protection class IP67) against dust or coolants. Cable routing is possible from the side of the robot socket or from the bottom through the base plate (option). This enables an easy and space-saving integration into its environment.
KEY BENEFITS
Compact, fast and accurate
High acceleration
Protection class IP67
Less interferences due to optimized design
Simple integration, installation and maintenance
Applications:
Welding of a broad variety of small workpieces, IP67
