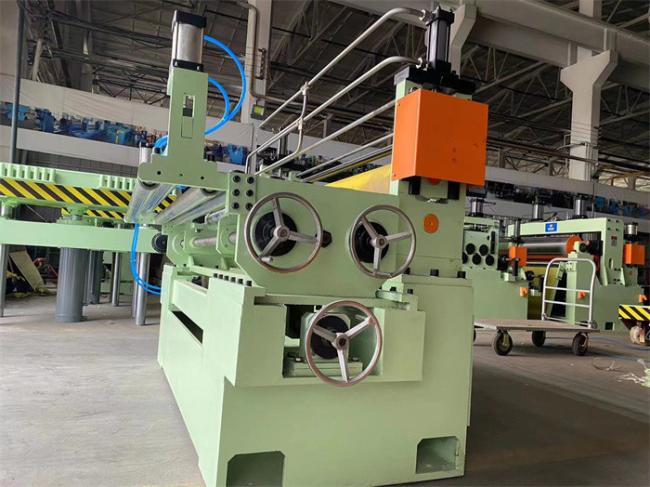

CRGO CRNGO Silicon Steel Slitting Machine For Transformer Electrical Steel

Silicon steel is low carbon special steel ≤C(0.08%), Si(1.0～4.5%), its producing process is complicated and making cost is higher. It has characters of high magnetoconductivity, low coercive force and high resistivity and thus little loss of hysteresis and eddy current, the purity of silicon steel sheet must be high, sheet surface must be very flat and clean, silicon steel sheet covers 1% of whole steel production, whose main application is motors, transformers, electric appliances, meters, etc. In this condition, the processing equipment for silicon steel sheet must be very precise.

Max yield strength: 450Mpa, max tensile strength: 600Mpa

Hardness HV100-220, elongation 15% -45%

Composition and Parameters:

1)Coil preparing saddle, 10T load

2)Single Mandrel uncoiler (508mm mandrel, with 7.5KW press roller)

3)Coil-head straightening and shoveling device

4)double pinch rolls and coil head shear (7.5KW AC)

5)Pit accumulator 1 (3m long, 3m deep, 1.6m wide)

6)Side guide before slitter (300-1300mm adjustable range)

7)Slitter(double heads fast exchange is optional), 160mm arbor, 75KW DC

8)edge scrap reeler(located below transmission table)  4KW variable frequency

9) pit accumulator 2  (3m long, 4m deep, 1.6m wide)

10)pre-separator & Tensioner, Rear shear, Deflector Roller

11)Recoiler with Separator press bracket  508mm seamless mandrel

12)Coil Discharging Car, 10T load

13)Hydraulic system, Pneumatic system  7.5KW pump

14)Electric control system

Parameters:

Configuration:
