High Precision 18 High Reversible Cold Rolling Mill For Stainless Steel
Price:
Negotiable
MOQ:
1Set
Delivery Time:
150 -200days
Brand:
Jinye
Product Description
High Precision 18 High Reversible Cold Rolling Mill For Stainless Steel
For high quality metal strip cold rolling, high precision 18High (18 rollers) cold rolling mill require very high precision manufacture and more investment with advantages:
- More thickness reduction than normal rolling mill in each rolling process. For example, a 18 high rolling mill can reduce HR stainless steel strip from 2.0mm down to 0.3mm with no need of interim annealing.
- Can give better quality of CR metal plates, better flatness.
- Less power consumption for the same production.
- In some applications, only multiple high rolling mill can achieve the required performance.
Rollers of 850 18High Cold Mill:
| Work Roller, | Φ100×850mm, 9Cr2Mo, |
| Middle roller | Φ240×820mm 9Cr2Mo |
| Backup roller | Φ730×800mm 9Cr2Mo Bearing FCDP88124440 |
| Bearing lubrication: | Oil gas for work rollers and middle rollers |
| Side Middle Rollers | Φ90×820mm 9Cr2Mo, |
| Backing bearing | Φ80mm |
| Backing support | One side mechanic, one side hydraulic |
| Backup rollers balance: | Hydraulic |
| Rollers changing | Work rollers manual, other rollers hydraulic |
| Rolling passline: | +900mm, inclined wedge hydraulic |
Hydraulic AGC system:
| Hydraulic AGC system | composed of AGC system, electric control and hydraulic system |
| Press down/up Servo hydraulic cylinder | Single piston cylinder Φ550mm, 2pcs |
| Stroke of AGC cylinder: | about 70mm |
| Max pressing force of each cylinder: | 425T |
| Work pressure | 18MPa |
| Max systematic pressure | 25MPa |
| Hydraulic flow | 60L/min |
| Filtering precision: | 3μm |
| Press speed | ≥4mm/s |

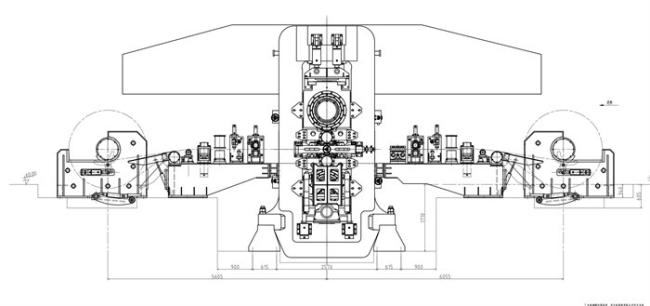

850 18High Hydraulic AGC Reversing Cold rolling Mill.
| Steel coil parameters | |
| Stainless steel material | SUS201, SUS403 |
| Incoming SS coil strip | 500-750mm x 0.6-1.0mm |
| Incoming SS coils | 508mm ID, 2000mm OD, 15T |
| Cold rolled finished SS coil strip | 500-750 x 0.3-0.5mm |
| Reverse Rolling mill parameters | |
| Rolling mill speed | Max 240m/min |
| Rolling force | Max 8500KN |
| Recoiling tension | Up to 100KN |
| Work roller, middle roller spec. | Ф100 /240 x 850mm |
| Backup roller spec. | Ф730 x 850mm |
| Main motor power | 550KW x 2 |
| Recoil motor power | 500KW x 2 |
| Electric control | Hydraulic AGC, Siemens RA80 DC Drivers, PLC, X-ray Thickness Gauge system |
| Liquid conditions | Thin oil lubrication for gearboxes, oil gas lubrication for bearing seats, hydraulic stations, rolling process coolant system |
| Automatic roller changing | Hydraulic motor and cylinder drive, to realize automatic roller change |
