China Metal Plate Cut to Length Line Leveling and Cutting Machines

China Metal Plate Cut to Length Line Leveling and Cutting Machines

Coil metal plate cut to length line is to decoil a metal coil, level the coil plate to be flat, then cut the plate to length, finally pile the plates in packages, the process includes different compositions of different configurations, different models ( light gauge, medium gauge, heavy gauge) suitable for different materials of steel plates and different thicknesses of metal plates, the parameters of different models have become mature based on past manufacturing experiences.

We are manufacture company of sheet metal cut to length lines for 20years, located in Wuxi city, China, near to Shanghai port.  Our market is both domestic in China and foreign in the world (about 50countries customers have our machines, we not only supply machines but also provide technical aftersale services), We aim at customizing each cut to length machine as per customers requirements, thus can give different options to meet various expectations of different customers.

• The raw coil materials can be low carbon steel, medium & high carbon steel, high quality steel, stainless steel, aluminum, copper, etc.
• Cutting style can be start-stop, move shear cutting or rotary shear fly cutting.

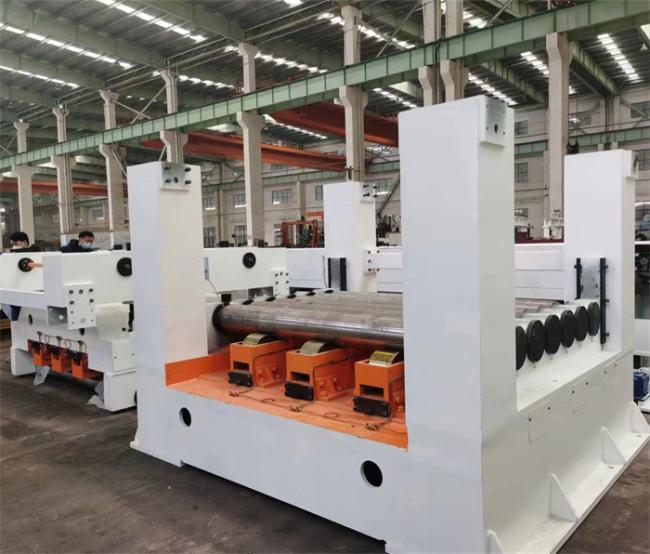

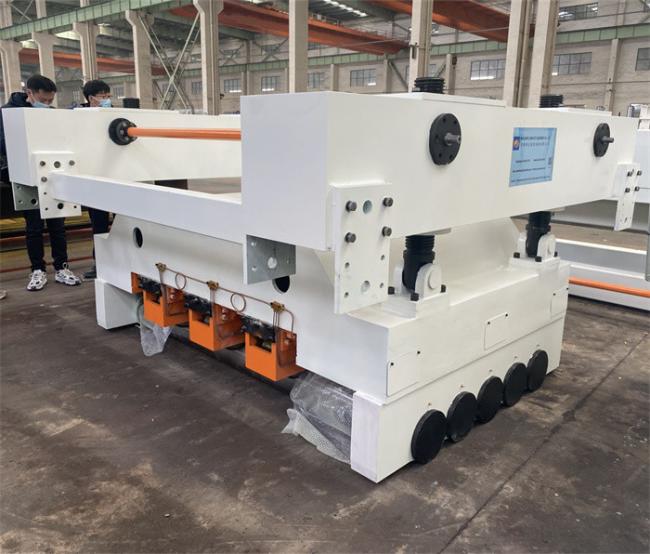

• Leveler can be 4hi or 6hi, backup rolls can be manually or automatically adjusted.
• Length measuring can be servo encoding or rotary encoder.
• Each line can be twice leveling to suit high tensile sheet
• Two levelers can be arranged in one line to level wide range of thickness
• Stacking system can be simpler or complicated for different materials or speeds.
• Uncoiler either cantilever one mandrel or two mandrels of movable bases.

Tell your complete requirements on sheet metal cut to length, then we give you proper proposal.

Metal Plate Leveling and Cutting to length applications:

1. Traditionally and nowadays most metal sheet cut to length line for processing low carbon steel sheets, low alloy steel sheets, hot rolled or cold rolled, galvanized or colored.
2. Stainless steel sheet cut to length line is becoming more percentage with the market requiring more stainless steel sheets, the SS sheet surface is bright, must be nicely protected in the uncoiling, leveling and cutting process.
3. Aluminum sheet is light and anti-corrosion, surface is clean, the cut to length line is flying shear and all passover rollers are rubber coated.
4. Fast cutting to length is needed because customers want enough production within certain time and land area. Thus, high speed cutting line, either flying shear or stop shear, is popular.
5. Sheets stacking must be fast and in order, receive one sheet,drop down and push it neatly.
6. Automation system is there in electric control, big touch screen and PLC program.

Parameters:
