3.6KW Inverter 3.2KWH Energy Storage Battery For Home Solar System
Product name:

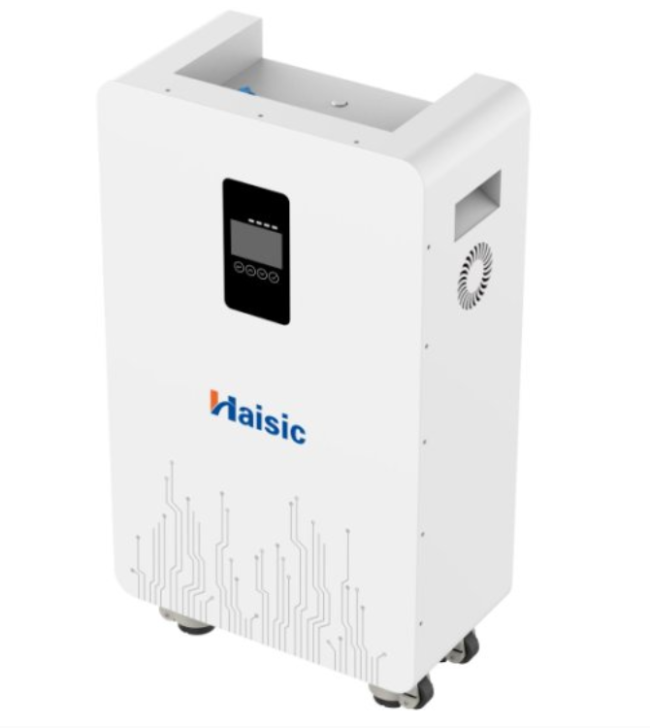

All in one 3.6KW Inverter 3.2KWh Energy Storage Battery Pack
Spec:
| Module Number | HS-YD3.6KW (25.6V127Ah) |
| Rated Voltage(V) | 25.6v |
| Rated Capacity(Ah) | 127AH |
| Voltage Range(V) | 22.4-28V |
| Rated Energy(Wh) | 3251Wh |
| Recommend charge current(A) | 50A |
| Max Charge current( A) | 100A |
| Max Discharge current( A) | 100A |
| Battery Dimension:(L*W*H) | |
| AC Output power |
3.6KW( L+N+PE) |
| AC Output Volt |
200-240V,15.7A |
| AC Input | 230V 20A |
| MPPT input | 5KW,40-450V,18A |
| Display | LCD |
| Terminal | screw fixed |
| Charge Temperature Range(℃) | 0-45℃ |
| Discharge Temperature Range(℃) | -20~60℃ |
| Cycle Life | ＞6000 times(0.5C@ 25℃,80% DOD) |
Feature:
1. This storage battery is all in one off-grid low voltage power solution that includes inverter 3.6kw and LPF battery 3.2KWh storage system.
Won't worry inverter and battery compability issue, Inverter and BMS solution all are designed by our Strong R&D team.
2. Long Life and safety, vertical industry integration ensures more than 5000cycles with 80%DoD.
3. Easy to install and use, integrated inverter design, easy to use and quick to install for off-grid solar energy system.
Images:
