Hydraulic Tail Gate Lift Equipment 12V / 24V With Fuel Tank 8L For Trucks

Price Negotiable
Price: USD 1900-3200/SET
MOQ: 5SETS
Delivery Time: 10-15working days
Brand: LEEO
Product Description

Hydraulic Tailgate Lift For Trucks/Van/Lorry



The car tail lift is also called the car lifting tail lift, the car loading and unloading tail lift, the lifting tail lift, the hydraulic car tail lift, and the truck tail lift. Loading and unloading equipment.
Car tailgates can be classified into: cantilever tailgates, vertical tailgates, rocker tailgates, and folding tailgates. Our company's main product is "cantilever tailgate".



The Specifications Of LA-10-135



Product name  Hydraulic Tailgate Lift Equipment
Model No. LA-10-135
Material Steel
Loading Capacity 1000kg
Lift Height 1350mm
Voltage 12V/24V, 2KW/3KW
Color Black



Hot Sale Model's specifications



Model NO. Loading Capacity(kg) Height from Ground -Carriage(mm)

Platform Dimension (W*H) MM

Operating Voltage(V) Lifting Speed(CM/S) Materail G.W.(KG)
LA-7-90 700 800-900 1600*1700 12V/24V 6-9 Steel/Aluminum Alloy 260-320
LA-10-120 1000 950-1200

1800*1700

12V/24V 6-9 Steel/Aluminum Alloy 290-390
LA-15-120 1500 950-1200

2000*1700

12V/24V 6-9 Steel/Aluminum Alloy 330-450
LA-15-135 1500 1050-1350

2200*1800

12V/24V 6-9 Steel/Aluminum Alloy 370-450
LA-15-152 1500 1150-1520

2300*1800

12V/24V 6-9 Steel/Aluminum Alloy 430-550
LA-20-135 2000 1050-1350

2400*1800

12V/24V 6-9 Steel/Aluminum Alloy 410-520
LA-20-152 2000 1150-1520

2400*1800

12V/24V 6-9 Steel/Aluminum Alloy 460-580
LA-25-152 2500 1150-1520

2400*1800

12V/24V 6-9 Steel/Aluminum Alloy 490-630
LA-25-160 2500 1150-1600

2400*1800

12V/24V 6-9 Steel/Aluminum Alloy 490-750



Advantages of installing a Hydraulic tailgate:



1. Reduce labor force and reduce labor cost. Only with manual forklift device, one person can complete the loading and unloading of goods at any time.

2. In the process of cargo loading and unloading, the car tail lift has the characteristics of stability, safety, speed, labor saving and high efficiency, and is not limited by the site, equipment and manpower.

3. There are various types of tailgates and complete sizes and specifications, and they can also be customized according to customer needs to meet the needs of various users.

4. Automobile tailgate can realize standardized equipment and standardized operation.

5. The tailgate of the car is generally installed at the rear of the cargo compartment, which neither takes up space nor affects the overall appearance of the vehicle. And in the event of a rear-end collision, the tailgate can play a certain protective role to avoid damage to the compartment.



Applicable models: flatbed trucks, vans, large trucks, electric trucks. We can also do customized product as per customers requirement.



Our Service



1.Warranty:12-18 months

2.Free Spare parts

3.Installation instruction manual, tracking and guiding installation throughout the process.

4.We also have own forwarder who have more experience,we can ship to you directly.

5.Customize service

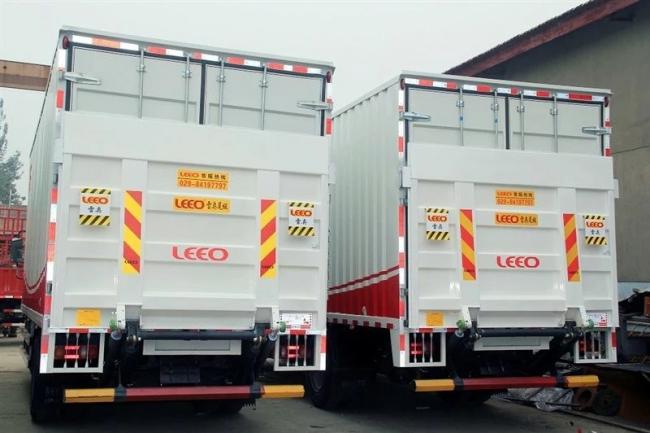

Product Real Shot Show



If any other more requirement,pls send inquiry to us in time!
