1500w Automatic Fiber Laser Cutting Machine 1000w For Pipe Tube
Price:
14500-19000usd
MOQ:
1set
Delivery Time:
10-20 working days
Brand:
DWIN
Product Description
fiber laser automatic cutting machine for pipe tube
DW1530 affordable metal tube laser cutter is also called tube laser cutting machine,which is used for cutting round tube,square tube and other metal tube. Pipe processing range 6000mm* φ10~220mm.
DW1530 affordable metal tube laser cutter is equipped with fiber laser device, laser power from 1.5kw to 4kw.
Technical parameter:
|
Model
|
Affordable Metal Tube Laser Cutting Machine DW1530
|
|
Laser Power |
1000W/1500W/2000W/3000W/4000W/
|
|
Pipe Processing Range
|
6000mm* φ10~220mm
(Square tube: 10*10~150*150mm) |
|
Maximum Speed
|
100m/min
|
|
Maximum Rotational Speed
|
100r/min
|
|
Z-axis Travel
|
170mm
|
|
Positioning Accuracy
|
±0.05mm
|
|
Repeated Positioning
|
±0.02mm
|
|
Maximum Acceleration
|
0.8G
|
|
Table Maximum Load(KG)
|
700
|
|
Outline Size(mm)
|
9000*2900 *2400
|
|
Power Parameters
|
Three-phase AC 380V 50Hz
|
|
Protection Level of Total Power Supply
|
IP54
|

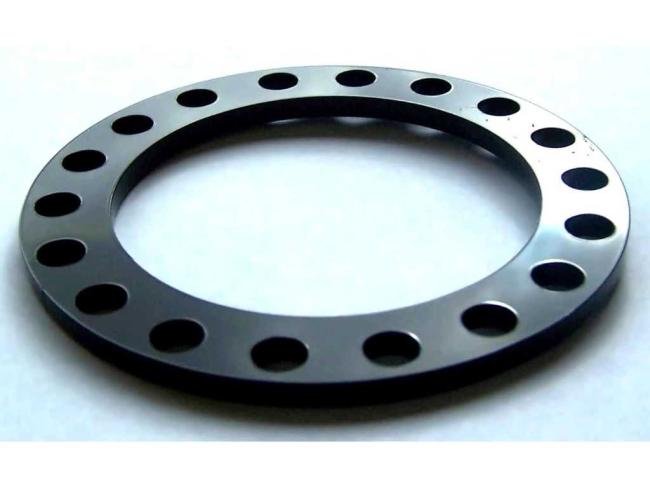

Samples
