160A LGK 120 Plasma Source Carbon Steel With Drill Head

Price Negotiable
Price: 3500-8000usd
MOQ: 1set
Delivery Time: 8-10 working days
Brand: DWIN
Product Description

CNC plasma cutters with drill head 120A 160A huayuan LGK plasma source



Features of CNC plasma cutters with drill head:

1. Multi-functional,not only can cut steel iron plate and pipe,but also can drill and mark on steel
2. Water table, have very good smoke-remove ability

3. The Plasma Cutting mouth is small, tidy,and avoid a second dressing processing.
4. It can apply to iron sheet, the aluminium sheet, the galvanized sheet, hundred steel plates, metal plates and so on.
5. High cutting speed, high precision, and low cost.
6. The numerical control system disposes high, the automatic striking arc, the performance is stable.





Advertising industry:

Advertising signs, logo making, decorative products, production of advertising and a variety of metal
materials.

Metal industry: For steel, carbon steel, stainless steel, alloy steel, spring steel, copper plate, aluminium plate,
gold, silver, titanium and other metal plate or pipe/tube.

CNC plasma cutters technical parameter:

Product
CNC plasma cutters
Working size
1500x3000mm / 5X10ft
OPTIONAL:
1200x1200mm / 4x4ft
1300x2500mm / 4x8ft
2000x6000mm / 6x20ft
Working material
Iron, Steel, SS, Aluminum sheets, Galvanized sheets,Titanium Plates
Cutting mode
Plasma, flame
Plasma power
63A/100A/120A/160A/200A/300A
Cutting thickness
Plasma: 0.5 - 30mm, depend on plasma power
Flame: 20 - 150mm
Cutting speed
According to material
Control system
Starfire / Fangling
Driving system
Stepper / Servo
Transmission system
Gear and rack
Guide rail
Taiwan Hiwin/PMI
Nesting software
StarCam/FastCam/SmartNest
Table
Sawtooth / blade
Voltage
AC 220V / 380V 3phase

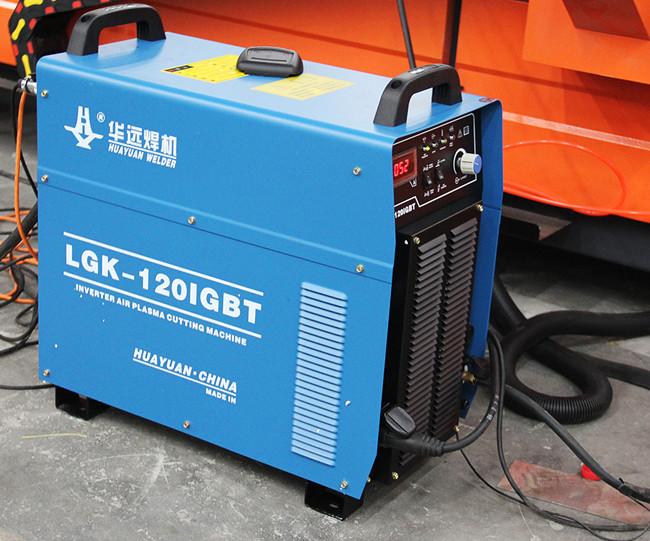

Huayuan LGK is the top brand in China, Hypertherm plasma source for optional.

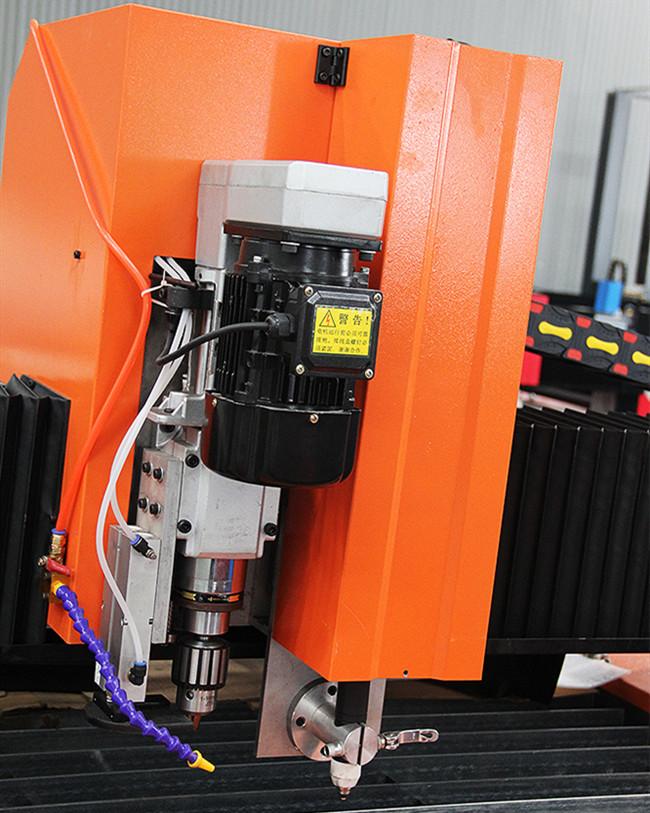

Machine with plasma cutting head and drilling head:

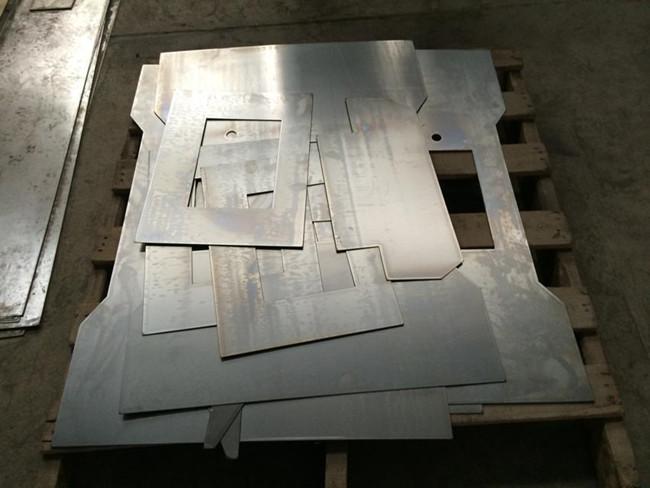

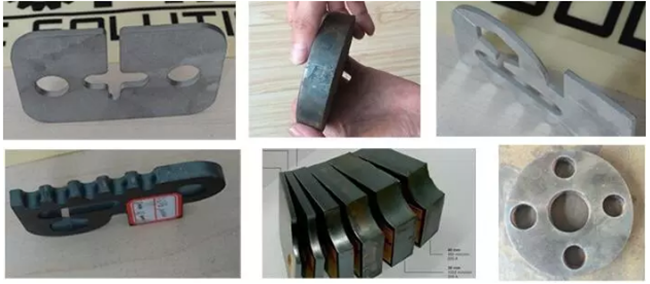

CNC plasma cutters samples:



FAQ:

1 Q: Are you a factory or trading company?

A: We are a factory,which manufactures fiber laser cutting machine and CNC plasma cutting machine,with 10 years experience in CNC machine industry.

2 Q: Do you have after sales support?

A: Yes,we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

3 Q: I am not sure if this machine suitable for my work?

A: Don’t worry,just tell me your cutting material,max working area and cutting thickness,then i will recommend you the most suitable machine for you.

4 Q: How can i do if the machine goes wrong?

A: If confronted with such problems,online service is offered,you could contact our sales.Also,we offer engineer delivery service.Please contact us and don’t try fix the machine by yourself or someone else.We will response within 12 hours as quick as we can to solve it for you.
