P1.875 P2.5 Fine Pitch Led Display 8k Led Video Wall Retail
Price:
$460.00 - $1,200.00/Square Meter
MOQ:
1 Square Meter
Delivery Time:
4-8 Days
Brand:
Longvision
Product Description

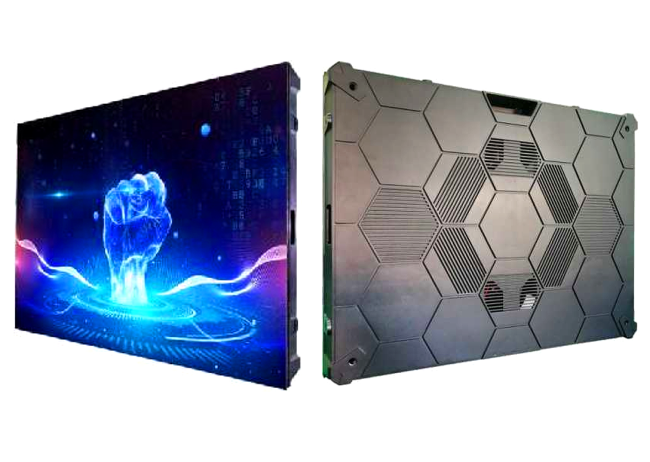

P1.875 P2.5 Fine Pitch Led Display 8k Led Video Wall Retail
Advantages

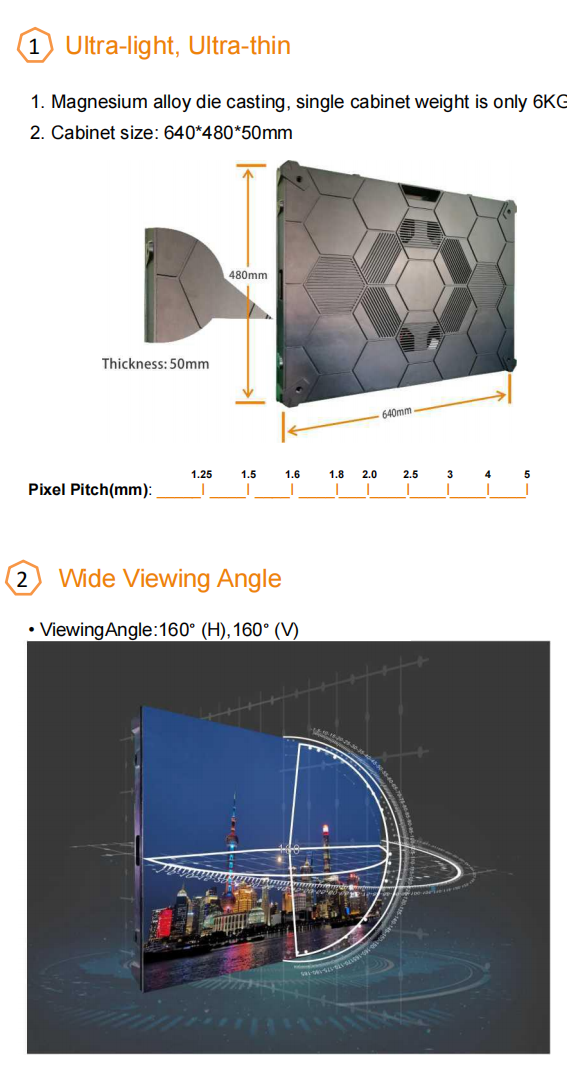

1. Ultra-light, Ultra-thin- Magnesium alloy die casting, single cabinet weight is only 6KG.
Cabinet size:640mm*480mm*50mm
2. Wide Viewing Angle ·Viewing Angle: 160°(horz.), 160°(vert.)
3. Excellent Visual Effect: Low brightness with high gray level and high refresh rate,
stable dynamic display effect and the visual experience is more comfortable.

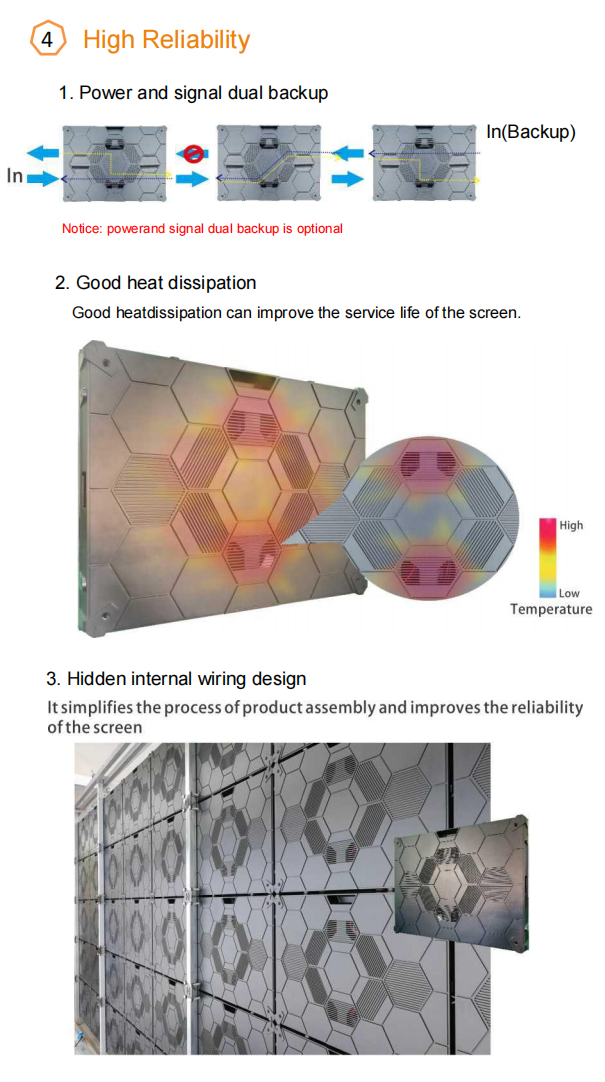

4. High Reliability: Power and signal dual backup
| Parameters | LH1.25 | LH1.5 | LH1.6 | LH1.8 | LH2.0 | LH2.5 | LH3.0 | LH4.0 | LH5.0 |
| Pixel Pitch(mm) | 1.25 | 1.538 | 1.667 | 1.839 | 2 | 2.5 | 3.076 | 4 | 5 |
| LEDconfiguration | SMD1010 | SMD1212 | SMD1515 | SMD2020 | |||||
| Module size(mm) | 320*160*14 | ||||||||
| Module resolution | 256*128 | 208*104 | 192*96 | 172*86 | 160*80 | 128*64 | 104*52 | 80*40 | 64*32 |
| Cabinet size(mm) | 640*480*50 | ||||||||
| Cabinet resolution | 512*384 | 416*312 | 384*288 | 344*258 | 320*240 | 256*192 | 208*156 | 160*120 | 128*96 |
| Cabinet weight(kg) | 6 | ||||||||
| Brightness(cd/m2) | 500-1000 | ||||||||
| Max Power Consumption | 580(W/m2) | 450(W/m2) | 460(W/m2) | 420(W/m2) | 480(W/m2) | 580(W/m2) | |||
| Avg Power Consumption | 193(W/m2) | 150(W/m2) | 193(W/m2) | 140W/m2) | 160(W/m2) | 193(W/m2) | |||
| Refresh rate | 3840Hz | 1920Hz | |||||||
| IPRatingfFront/Rear) | IP31/IP30 | ||||||||
:
